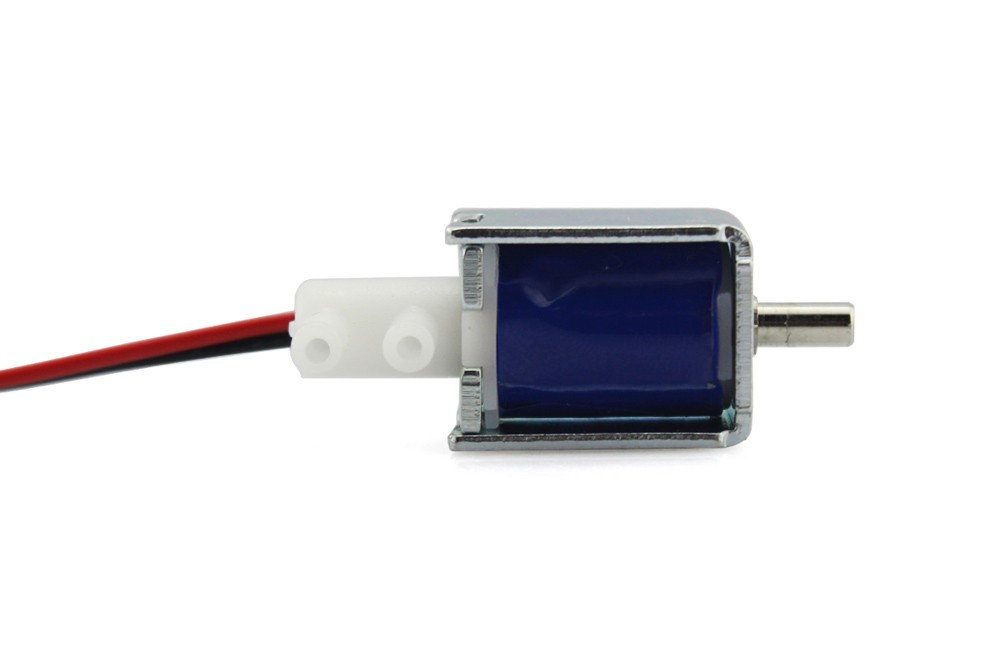

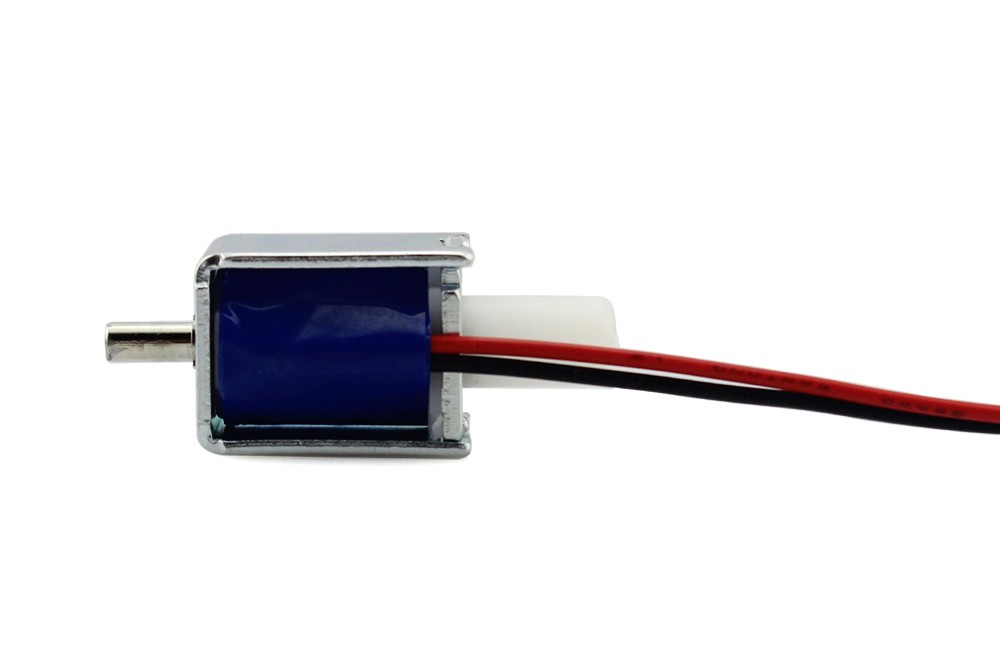

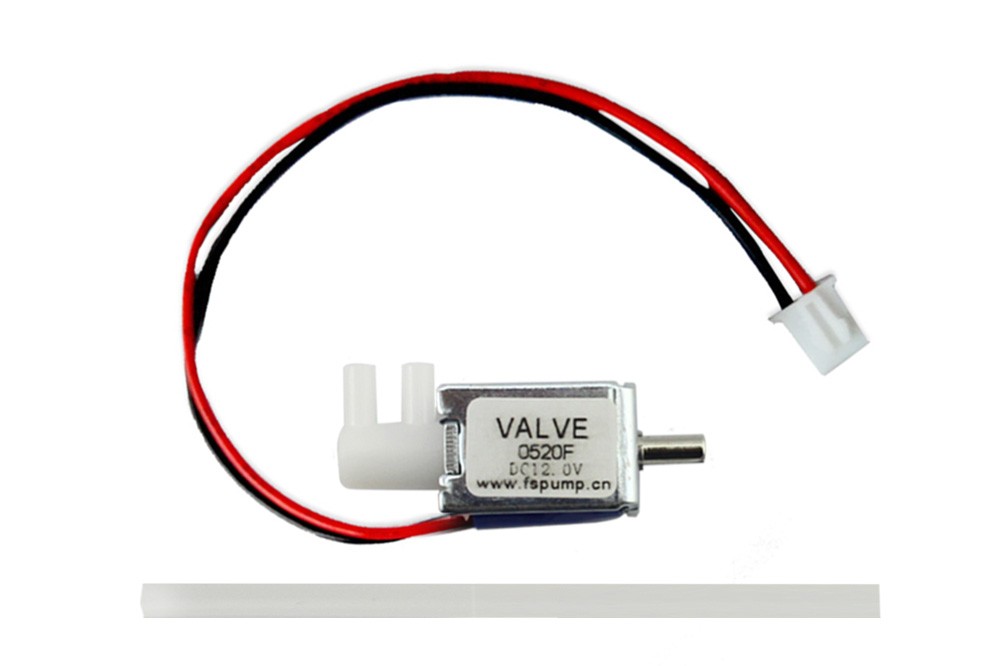

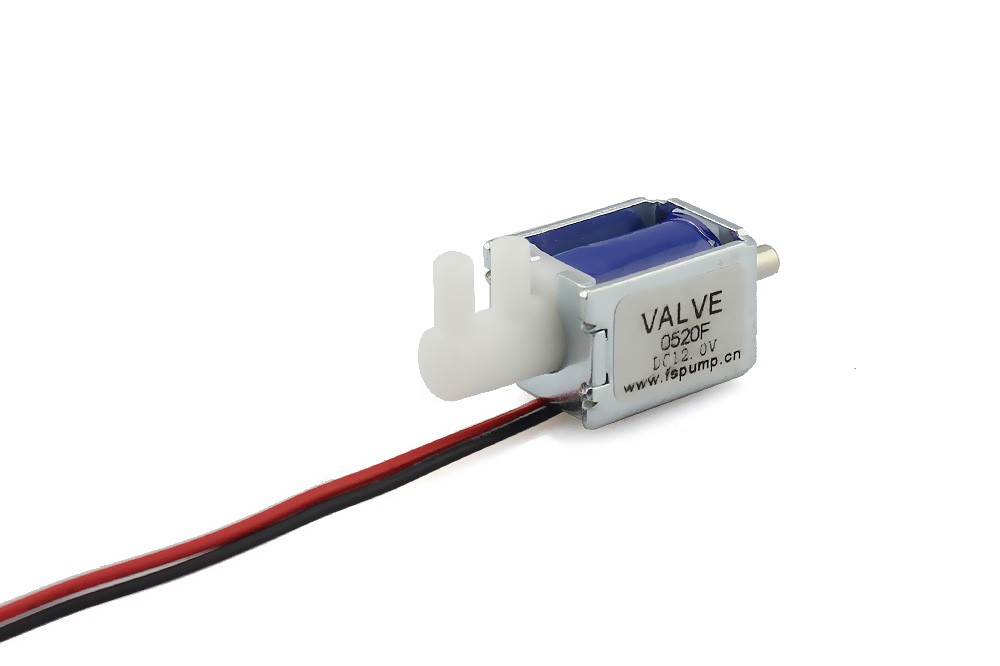

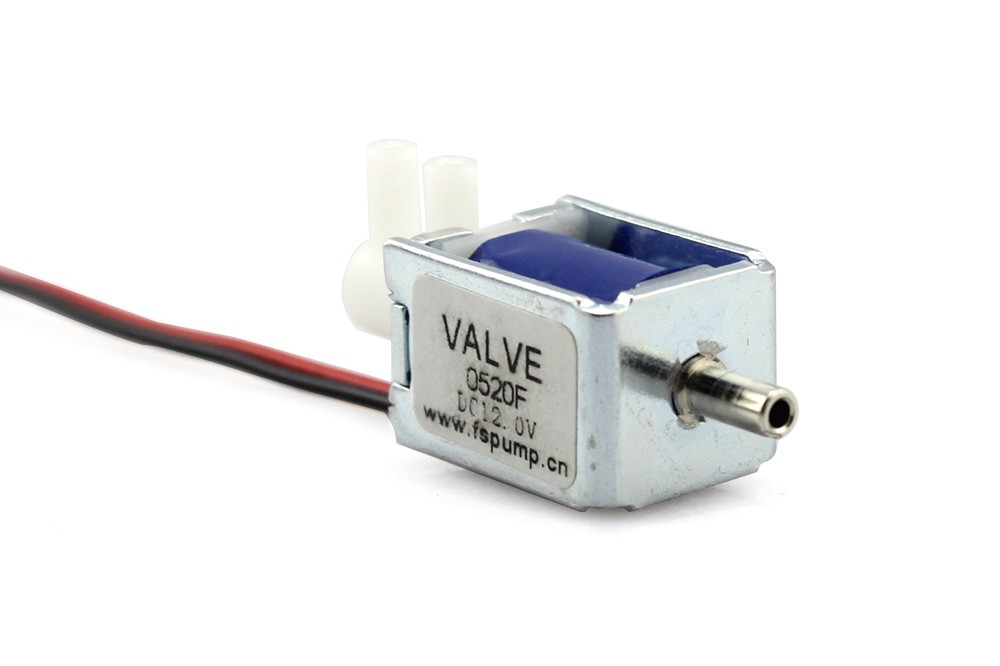

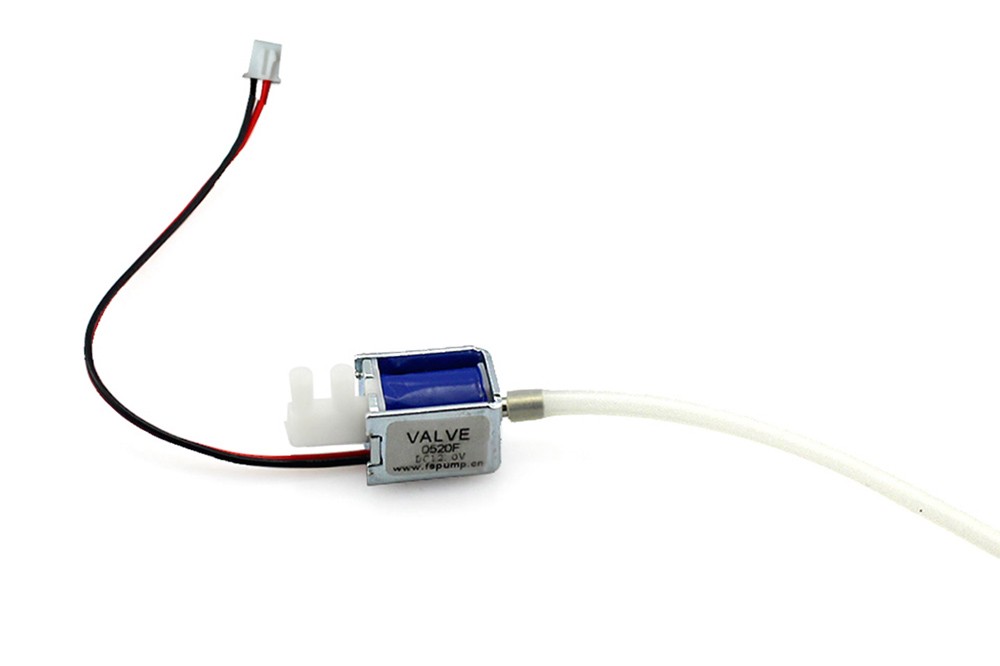

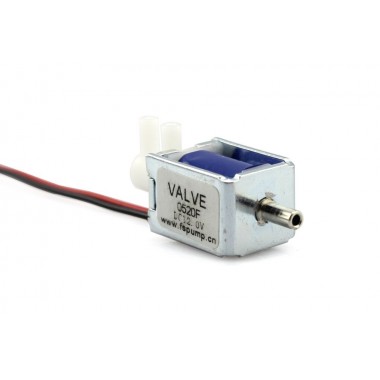

Electric 2-Position 3 Way 12V Micro Solenoid Valve for Gas
Micro válvula solenoide para gases con 2 posiciones y 3 vías de 12 voltios
COD: EACS23012V
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 5151.00
El producto no está disponible para la venta en este momento
Características
This is a miniature solenoid valve, it has 6v / 12v / 24v three versions, is a multi-purpose solenoid valve, belonging to two three-way solenoid valve type,It has small size with long service life. Operating temperature range is stable, low noise, mainly used in medical equipment, automation machinery, toys Products, massage products.
Specifications
- Rated voltage: DC6.0V ;DC12.0V; DC24.0V
- Rated current:
- Pressure range: 0-350mmhg
- Tightness: After the inflation pressure is 0 to 300 mmHg in the 500CC container, the pressure drop is less than 5mmHg / min after 30 seconds.
- The use of fluid: AIR
- Life: 500CC container, the inflatable 10 seconds 5 seconds for a loop exhaust test more than 50,000 times
- Operating temperature range: 0 �?? ~ 55 �??
- Noise: 5cm under the pump pad of the sponge, from the noise meter 30cm Department (<60dB).
- Power: <2w
Package list
- Electric 2-Position 3 Way 12V Micro Solenoid Valve for Gas x1
