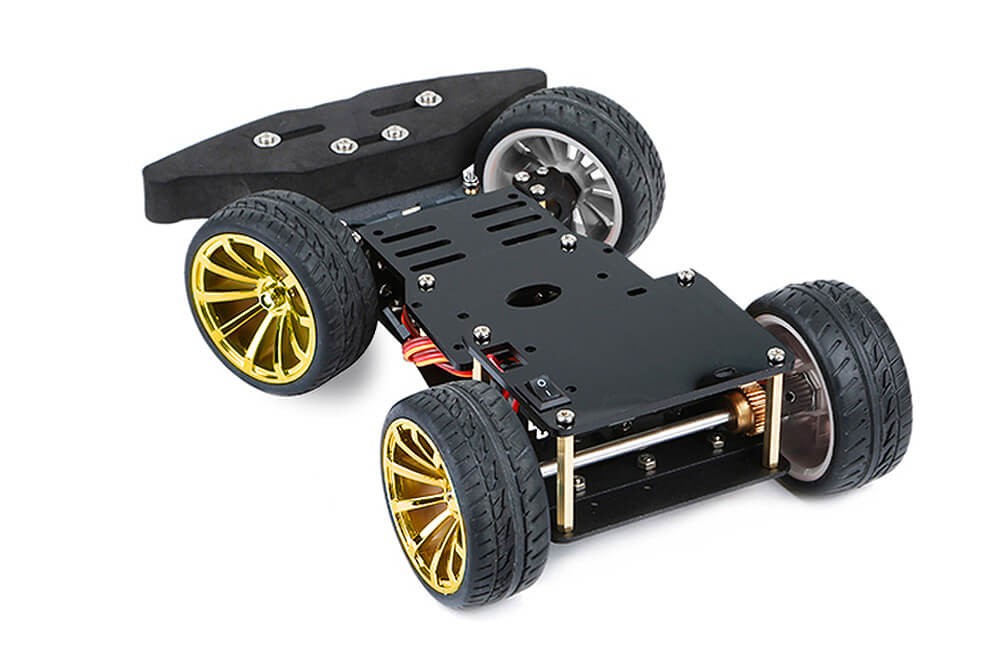

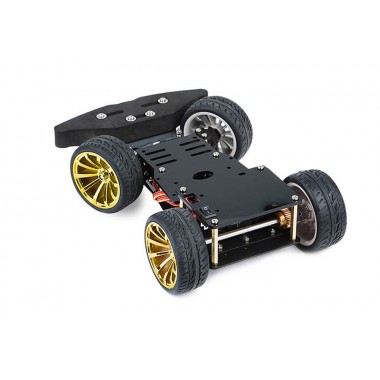

4WD RC Smart Car Chassis with S3003 Metal Servo & Bearing Kit for Arduino


Chasis con dirección controlable mediante servo, ideal para un auto a control remoto basado en Arduino.


Peso: 0.680 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 98889.00


El producto no está disponible para la venta en este momento

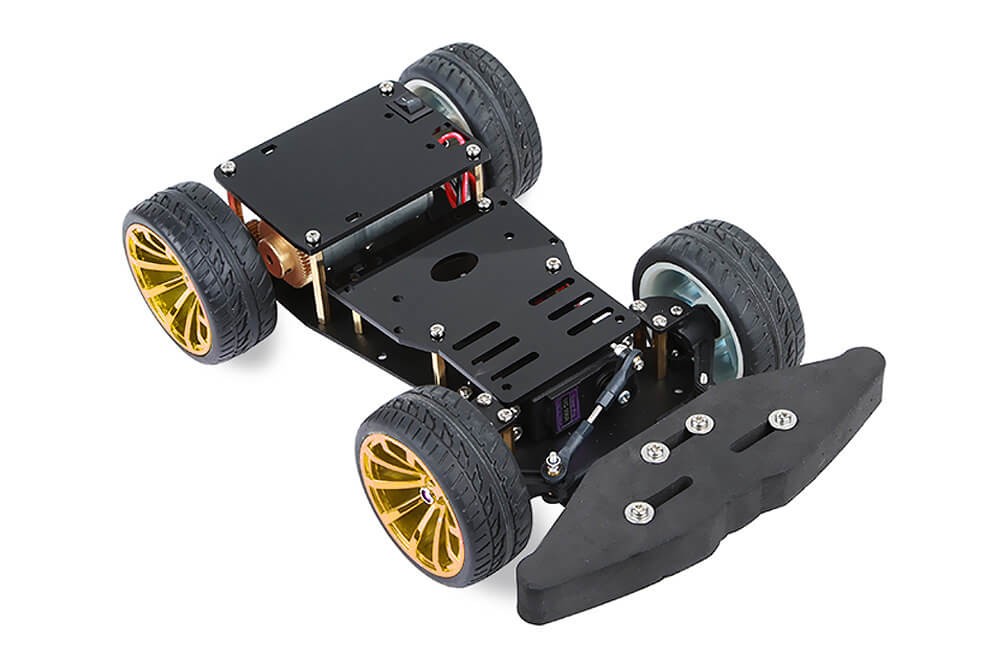

his is a newly designed 4-wheel car chassis, and ordinary 4-wheel drive is different from this car with rear-wheel drive plus front steering mechanism to achieve the car forward, backward and turn left and right.
 And professional remote control racing principle, the use of two rod through the steering servo to control the direction of the car. In addition, the steering mechanism of the rear wheel has also been changed. The aluminum fixing piece is integrally formed with the motor and the motor is tightly engaged with the drive shaft. The motor adopts the all-metal gear motor. If you pursue high speed, As long as the 25mm shaft diameter motor can be. The rear wheel incorporates two flange cup bearings to ensure a more flexible motor rotation.
Because of the use of more precious metal parts (bearings, transmission gear, connecting rod, metal motor, steering cup, multi-function bracket, etc.), which is expensive, the user can compare the merits, of course, the market is also cheaper Similar to the chassis, work is not on a level of the.
We only have fixed mounting holes for arduino platform, if you are other platforms, you need to punch holes or try to install.


All-metal motor rear-wheel drive

Using steering gear control car steering

Steering structure with bearings, transmission loss




Motor model:JGA25-370

Motor work voltage: 6-12V

Servo model: MG996

Car size: 248mm(l) x 146mm(w) x 70mm(h)

Weight: 680g

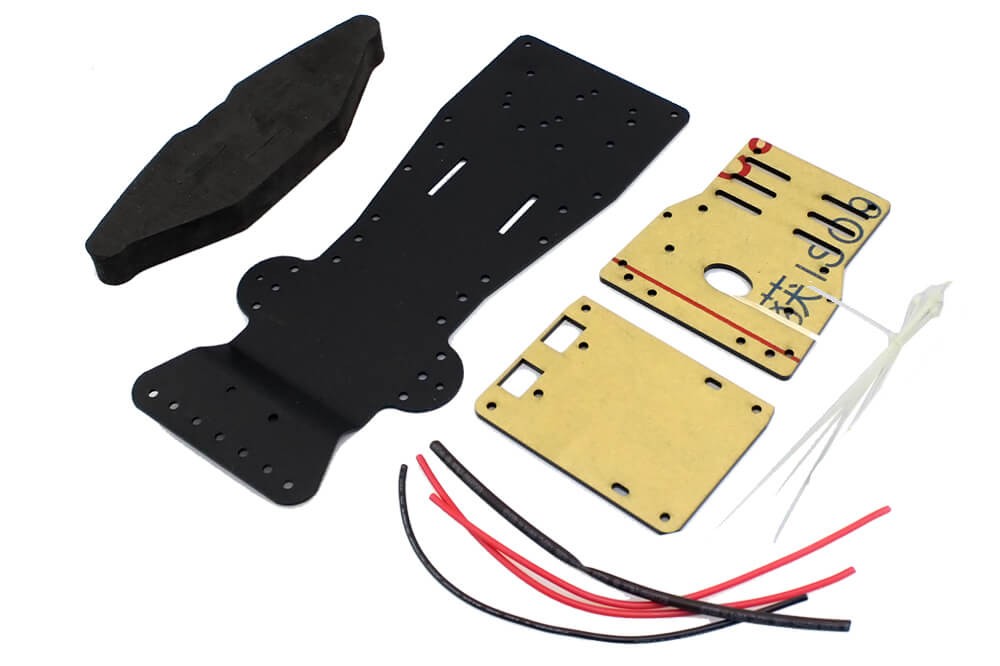

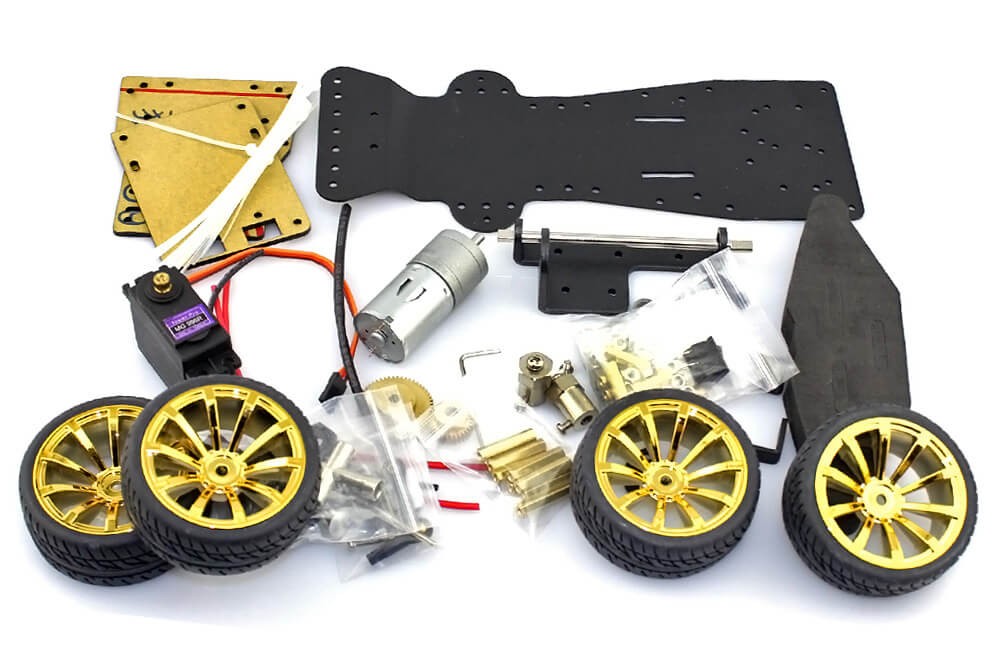

Package list

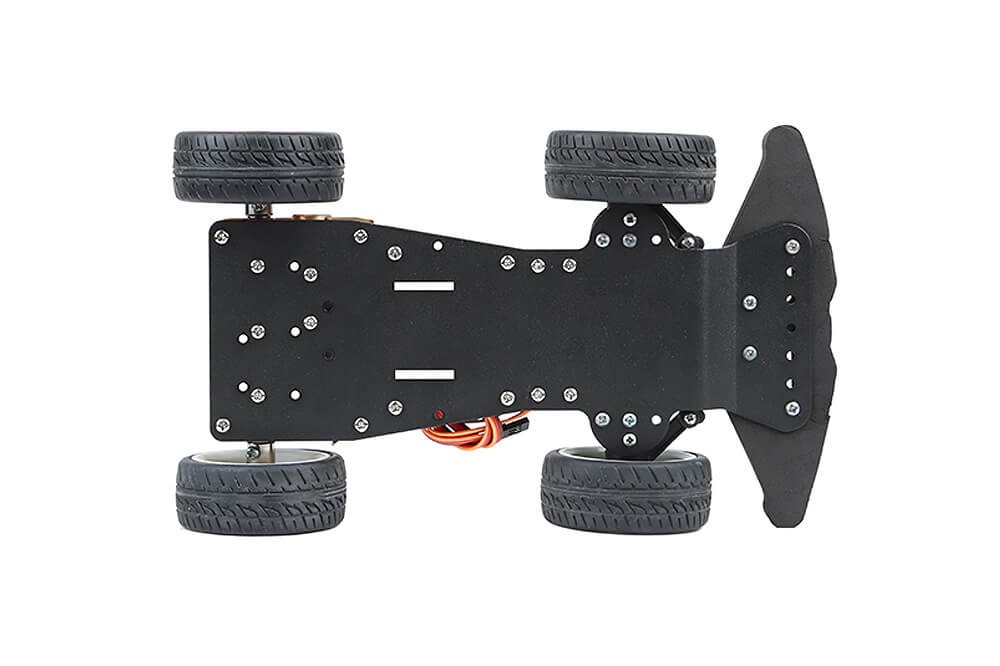

Metal chassis x 1
Acrylic chassis x 2

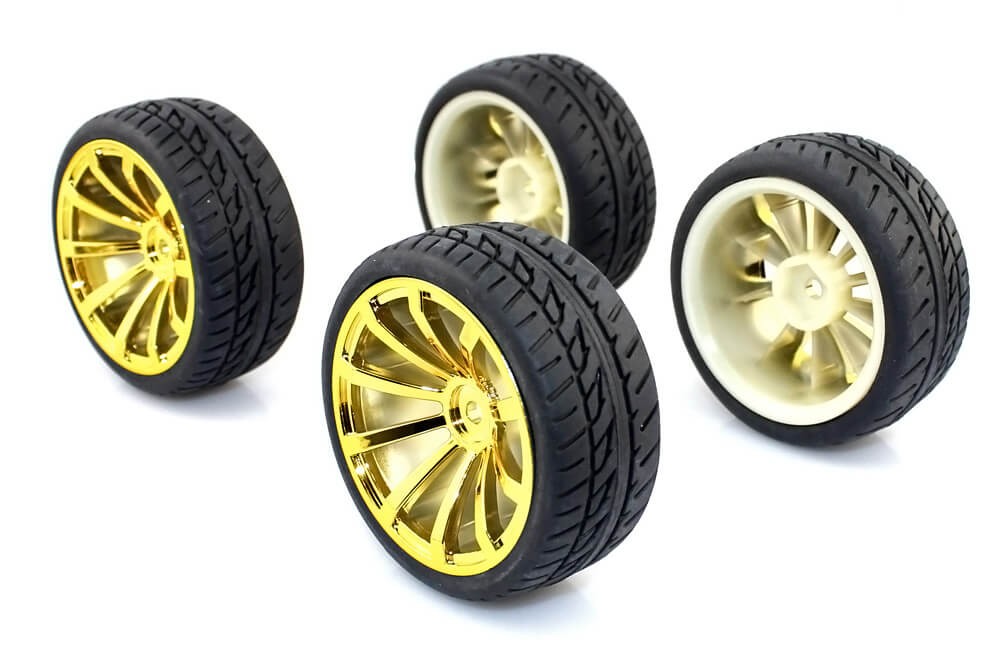

65 MM wheels x4
Anti-collision cotton x1
Metal gear motor x1
Engine counting bracket x1
Steering wheel x 2
Rear-wheel link x1
Rolling bearing flange x2
17 MILLIMETERS D-5MM coupling x2
MG996R actuator x1
Servo arm x1
L Mount bracket x1
Sector x 2
Pull rod x2
Steering bellcrank x2
Transmission link x2
Bearing (8mm) x 2
Bearing (12mm) x 2
Aluminum column x 2
Hexagon adapter x 2
Switch x1

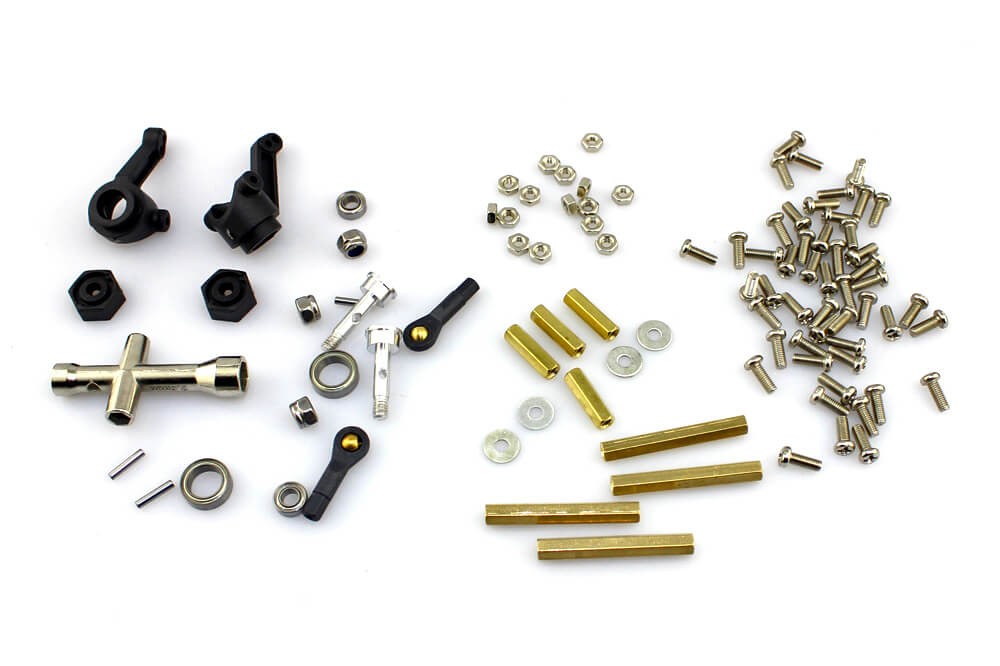

M3 * 16mm passage double copper column x 4 M3 * 16mm
M3 * 22mm passage double copper column x 8 M3 * 22mm
M3 * 35mm passage double copper column x 4 M3 * 35mm
M3 * 5mm head screwdriver x2
M3 * 5mm screwdriver x5
M3 * 8mm screwdriver x40
M2.5 * 10mm Screw x 8
M3 locknut x 8
M2.5 locknut x 1
M4 locknut x 2
Gasket x4
Cross sleeve x1
Cable ties x6
22AWG wire x 3
