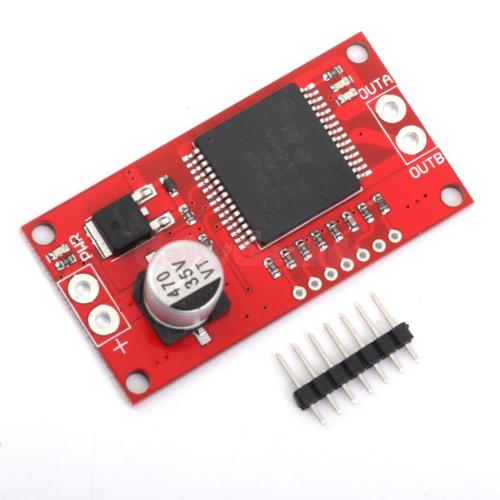

30A VNH2SP30-Monster Moto Stepper Motor Driver for Arduino

Principal

Potente breakout que consta de un driver de dos motores DC basado en el VNH2SP30.

COD: HTHR0214-78A

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 11292.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:

  • Size: Approx. 53 x 28mm / 2.08 x 1.1 inch
  • Voltage max: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown
  • Low standby power consumption

Description:

For this monster breakout we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm

  • 1 x Module
  • 1 x Row of 7 pins
