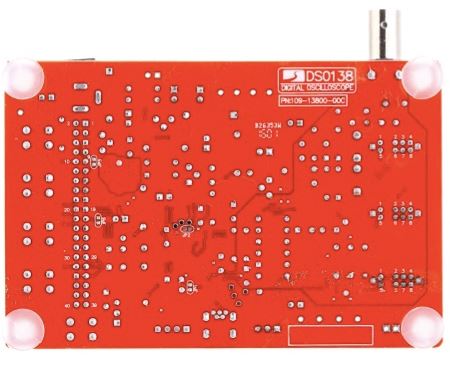

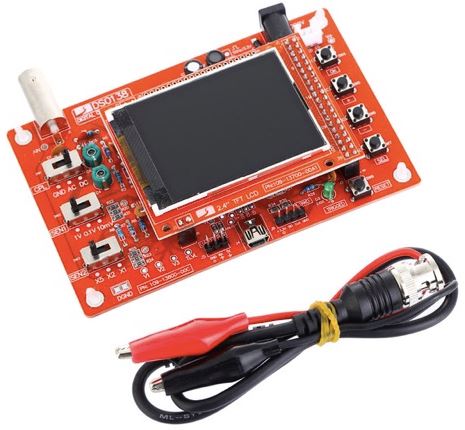

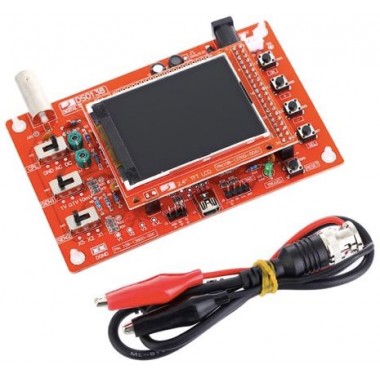

All Solded DSO138 Digital Oscilloscope

Principal

OFERTA POR RENOVACION DE STOCK!!! Osciloscopio digital DS0138 con todas sus partes soldadas, listo para ser usado. Requiere fuente de alimentación de 9V (no incluida).

COD: HTHR0195

Peso: 0.135 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 29990.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description::




DSO138 oscilloscope production suite features:

Training for electronic production , complete detailed descriptive information , like schematics , instructions, etc., making a high success rate .
Component species diversity for students to identify elements , inline elements welding, soldering SMD components training.
Students can get in at the same time making a practical tool for audio, video synchronization , low-frequency switching power supply , infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes .
Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board .
Available source , the ability of a friend can be secondary development kit based on , for example, it can be changed to Millivoltmeter , data loggers , and so on .
Circuit is simple , reliable , inexpensive

Performance index
Maximum real-time sampling rate : 1Msps
Accuracy : 12Bit
Sampling buffer depth : 1024 bytes
Analog bandwidth : 0 - 200KHz
Vertical Sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
Adjustable vertical displacement , and with instructions
Input impedance : 1MΩ
Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
Coupling modes include DC / AC / GND
The horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
With automatic, regular and one-shot mode , easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position , and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source
