GSM SIM900A (bluePCB)

Principal

Breakout del módulo GPRS/GSM SIM900A.

COD: HTHR0214-79

Peso: 0.027 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 32687.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

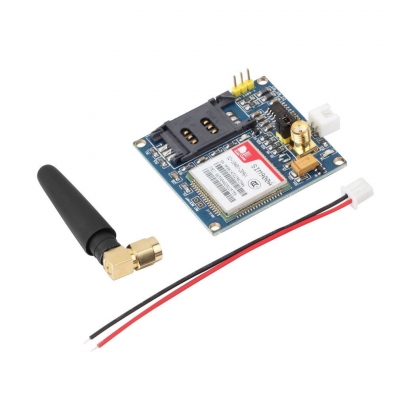

SIM900 GPRS GSM Development Board Module Kit




Description:


Color: Blue
Board Size: 85 x 55 x 15 mm(approx)
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850 / 900 MHz)
Class 1 (1 W @ 1800 / 1900MHz)

Enhanced Commands: SIMCOM AT Commands.
Low power consumption: 1.5 mA(sleep mode)
Industrial Temperature Range: 40°C ~+85 °C
Power supply: 5 V~26 V(Recommend 9V power supply)

Features:

1. The GPRS module provides you a way to communicate using the GSM cell phone network.
2. The GPRS module is based on SIM900 IC from SIMCOM and compatible with Arduino and its clones.
3. The module also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present on board.
4. The module allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands).
5. This module power supply for: 5V~26V, if more than 5V power supply must be in 2A, recommend a 9V power supply. Plug in the Arduino motherboard, power supply must be able to provide 2A current.

Package included:

1 x GPRS Module
1 x Antenna
