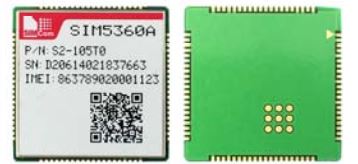

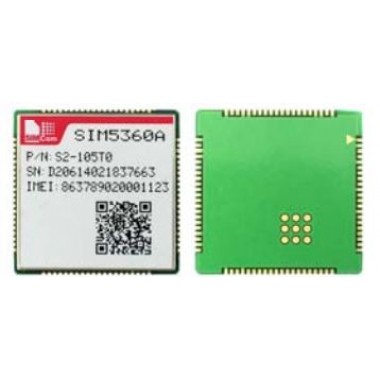

SIM5360A-SMT
Módulo SIM5360 con interfaces UART, USB2.0, SPI, I2C, Keypad, etc. Incluye banda dual UMTS/HSPA+ 850/1900Mhz y cuatri-banda GSM/GPRS/EDge
COD: SIM5360ASMT
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 105854.00
El producto no está disponible para la venta en este momento
Características
Introduction
The SIM5360 series is Dual-Band HSPA+/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
General Features
• SIM5360A：Dual-Band UMTS/HSPA+ 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
•Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
Specification for GPS
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass
Specifications for Data transfer
• HSPA+
- Max. 14.4Mbps(DL), Max.5.76Mbps(UL)
• WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Other features
• USB Driver for Microsoft Windows
2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• Embedded AT
• LUA Script Language
• MMS
•TCP/IP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
•FOTA
Interfaces
• USB2.0
•UART
• SIM card
•SPI
•I2C
• Keypad(5*5)
• Constant current sink
•GPIO
•RTC
•ADC
•SDIO
•PCM*
NOTE：* Only supported in Home Security and Telematics Applications
sim5360_hardware_design_v1.01.pdf (2379 Kb)
