ESP32-DevKitC

Principal

ESP32-DevKitc es una placa de desarrollo basada en el famoso ESP-32 WROOM con conectividad Wi-Fi y Bluetooth. Ideal para proyectos de IoT (Internet of Things). Lista para conectarla por USB y programarla.

COD: TRONWI1100

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 35846.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

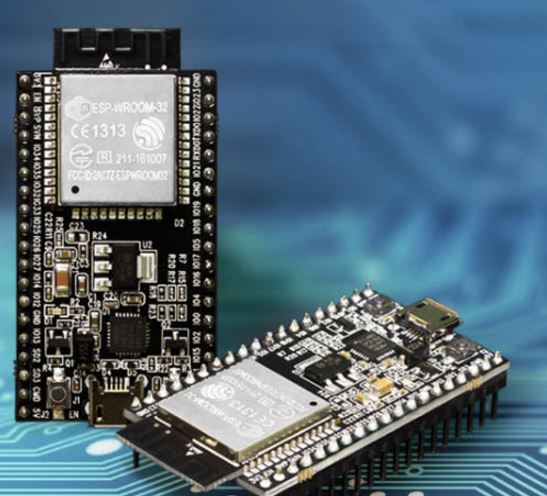

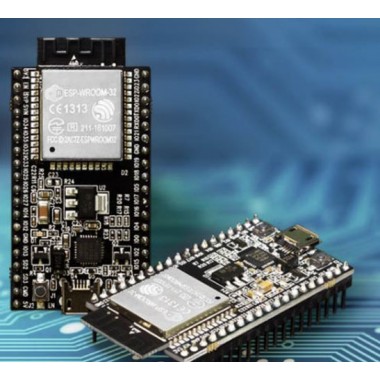

ESP32-DevKitC is a low-footprint, minimal system development board which is powered by our latest ESP-WROOM-32 module and can be easily adjusted to a breadboard.

  • Rapid Prototyping – Get right into application design and development without worrying about RF performance and antenna design. The ESP32-DevKitC has your basic system requirements already covered. Just plug in the USB cable and you’re good to go!
  • Flexible and Feature-Rich – The ESP32-DevKitC contains the entire basic support circuitry for the ESP-WROOM-32, including the USB-UART bridge, reset- and boot-mode buttons, LDO regulator and a micro-USB connector. Every important GPIO is available to the developer.
  • Breadboard-Friendly – The ESP32-DevKitC pinout is optimized for prototyping on a breadboard. The on-board LDO output is led out for powering additional off-board electronics. Peripheral outputs are grouped together for hassle-free prototyping.
  • Core board based on esp-32 WROOM-32 from espressif too.
  • Similar to nodemcu board, compact size, on board USB-TTL CP2102, LDO AMS1117, microUSB, flash and reset buttons, etc. Very nice.
  • Breadboard friendly.
  • On board marked version V2.
  • Auto upload bug on windows solution can be found here. Tested up to 10UF can work
