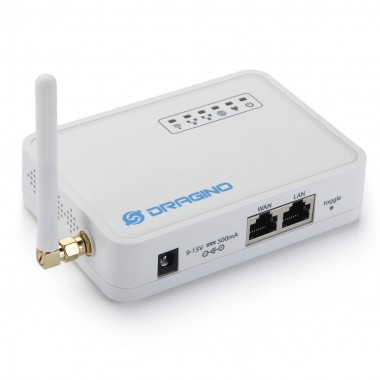

LG01-S Indoor LoRa Gateway 915Mhz
Gateway Lora configurado en 915 Mhz. Posee WiFi y 2 puertos Ethernet. Dispone además de entradas / salidas de uso general, disponibles mediante bornera terminal. Basado en Linux Openwrt. Requiere fuente de alimentación de 9 a 15 VDC 0.5A (no incluida).
COD: DRALG01S
Peso: 0.230 Kg
Disponibilidad: Sin Stock
ARS 169208.99
El producto no está disponible para la venta en este momento
Características
Description
The LG01-S is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity.
LG01-S has WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.
LG01-S runs Open Source OpenWrt system, user are free to modify the source file or compile the system to support their customized applications.
Features:
- Open Source OpenWrt system
- Low power consumption
- Firmware upgrade via Web
- Software upgradable via network
- Auto-Provisioning
- Built-in web server
- Managed by Web GUI, SSH via LAN or WiFi
- Support WiFi AP, Client or Ad-Hoc(Mesh) mode
- Internet connection via LAN, WiFi, 3G or 4G
- Failsafe design provides robustly system
- Arduino IDE compatible. Easy to program.
- LoRa band available at 433/868/915/920 Mhz
- Max range in LoRa : 5 ~ 10km
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long range Irrigation Systems
- GPS tracker,etc
Specifications
Linux Side:
- Processor: 400MHz, 24K MIPS
- Flash: 16MB ; RAM: 64MB
MCU/LoRa Side:
- MCU: ATMega328P
- Flash:32KB, RAM:2KB
- LoRa Chip: SX2176/78
Interfaces:
- 10M/100M RJ45 Ports x 2
- WiFi : 802.11 b/g/n
- LoRa Wireless
- Power Input: 12V DC
- USB 2.0 host connector x 1
- USB 2.0 host internal interface x 1
- 14 position screw terminal
More information
Datasheet LG01-S (2144 Kb)
