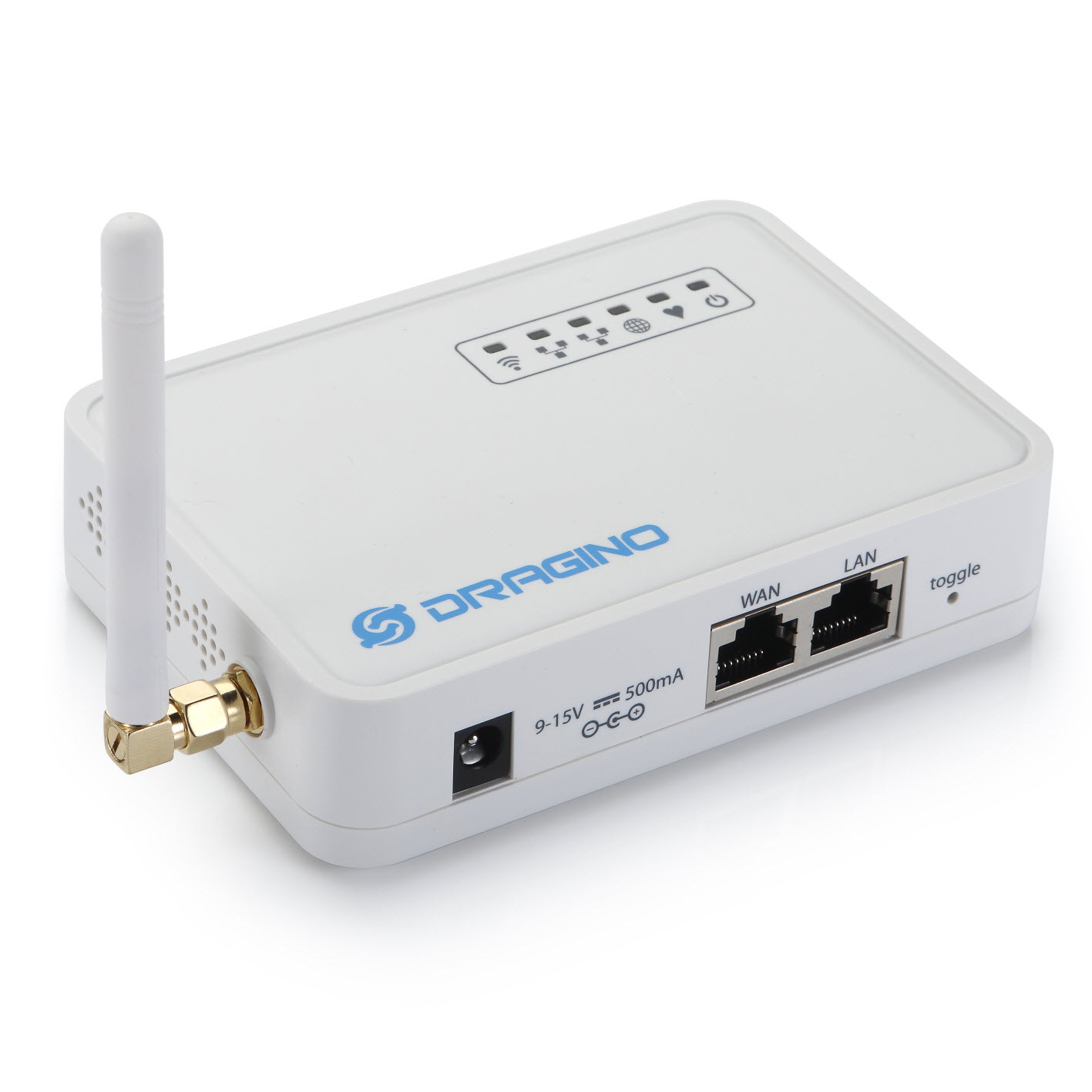

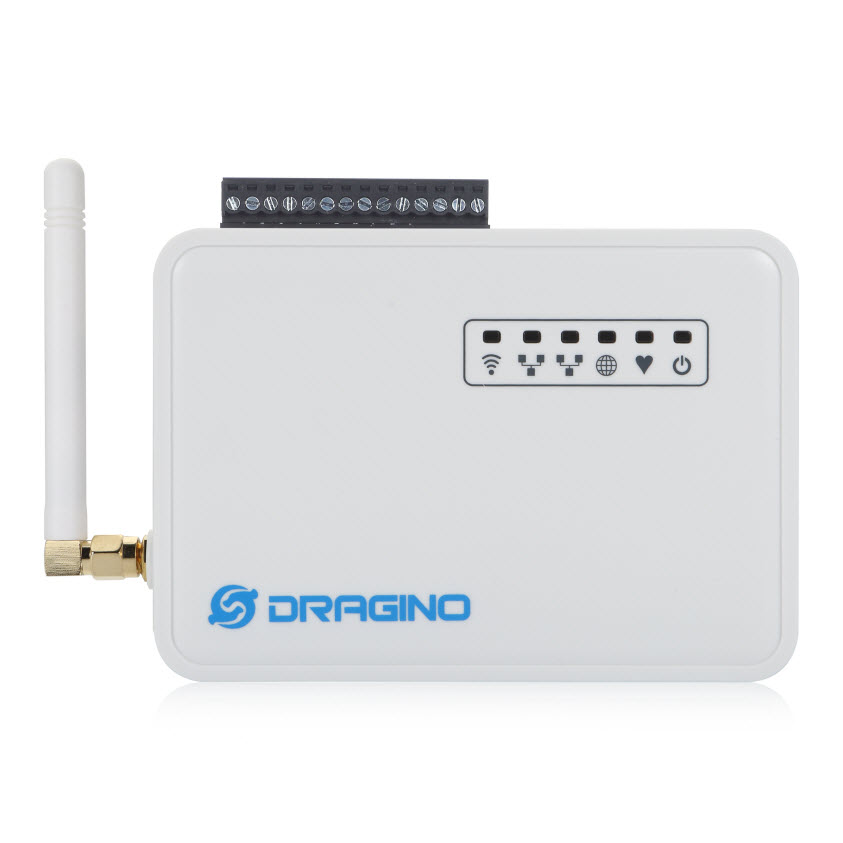

LG01-S Indoor LoRa Gateway 915Mhz

LG01-S PCB Indoor LoRa Gateway 915Mhz

Gateway Lora configurado en 915 Mhz. Posee WiFi y 2 puertos Ethernet. Dispone además de entradas / salidas de uso general, disponibles mediante bornera terminal. Basado en Linux Openwrt. Requiere fuente de alimentación de 9 a 15 VDC 0.5A (no incluida).

COD: DRALG01S

Peso: 0.230 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 161999.99

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

The LG01-S is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity.

LG01-S has WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

 LG01-S runs Open Source OpenWrt system, user are free to modify the source file or compile the system to support their customized applications.

Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Support WiFi AP, Client or Ad-Hoc(Mesh) mode
  • Internet connection via LAN, WiFi, 3G or 4G
  • Failsafe design provides robustly system
  • Arduino IDE compatible. Easy to program.
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa : 5 ~ 10km

Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc

Specifications

Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB

MCU/LoRa Side:

  • MCU: ATMega328P
  • Flash:32KB, RAM:2KB
  • LoRa Chip: SX2176/78

Interfaces:

  • 10M/100M RJ45 Ports x 2
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • USB 2.0 host connector x 1
  • USB 2.0 host internal interface x 1
  • 14 position screw terminal

More information

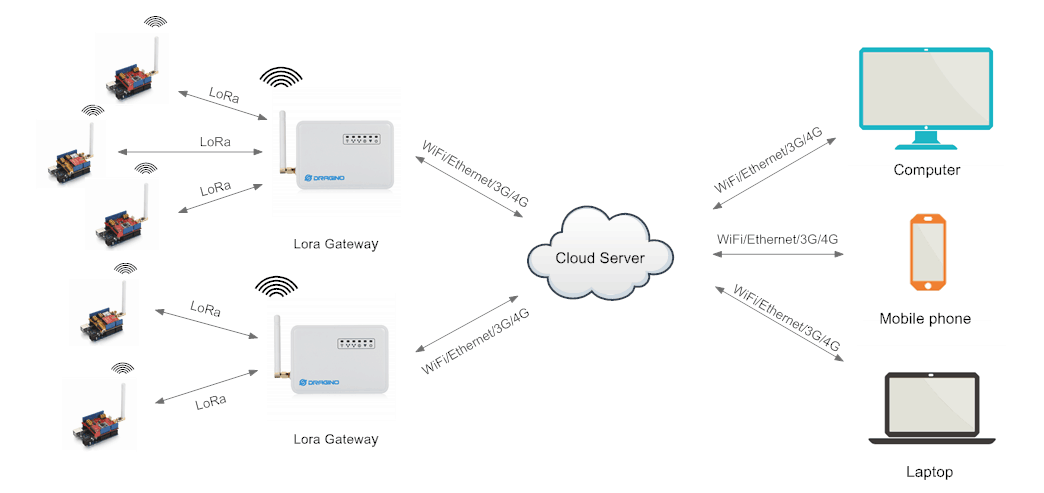

LG01 System Overview

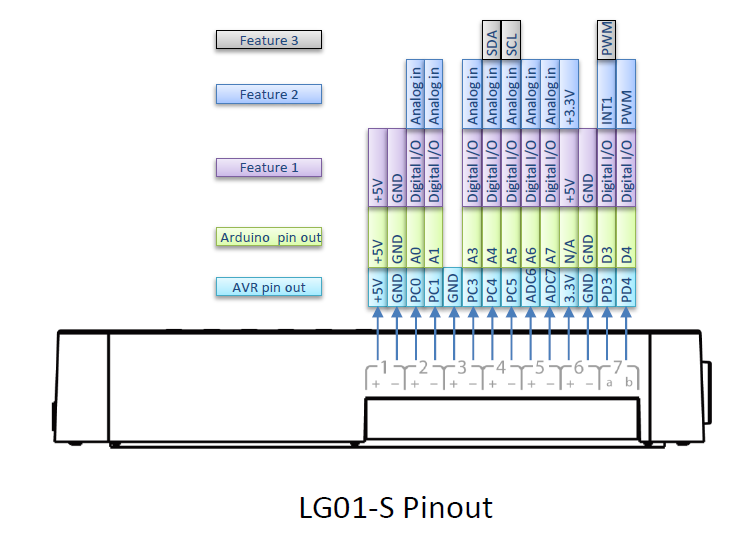

LG01-S pin out
