6 DOF Aluminium Arm Clamp Claw Machinery Mechanical Robot
Excelente Kit para armar la estructura mecánica de un manipulador robot de 6 grados de libertad. Incluye pinza robótica!. No están incluidos en este producto los servos motores. Se recomienda utilizar servos MG996R (link en la descripción).
COD: HTHR0536
Peso: 0.446 Kg
Disponibilidad: Sin Stock
ARS 65918.00
El producto no está disponible para la venta en este momento
Características
Description:

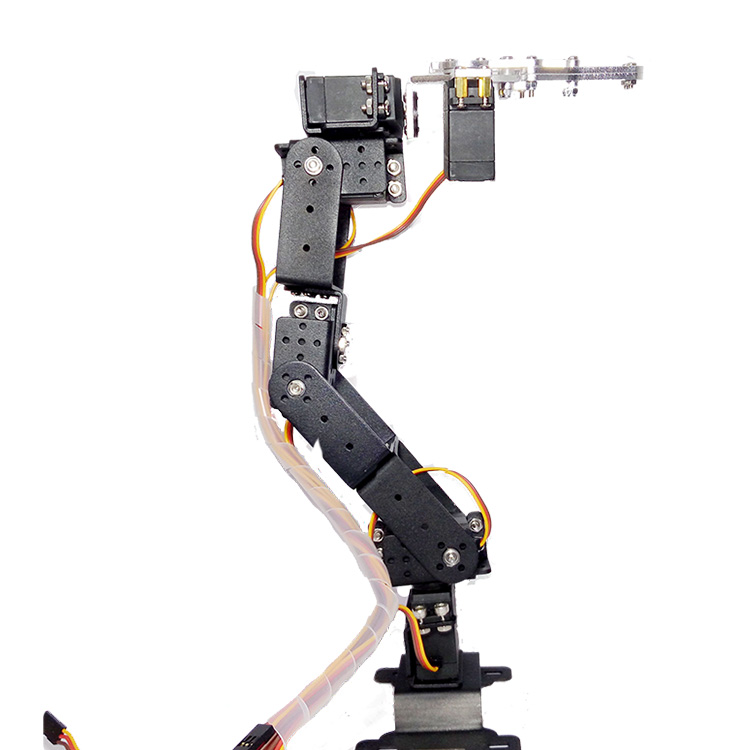

Arduino Robot 6 DOF Aluminium Clamp Claw Mount kit
Features:
- Rotation angle of 180 degrees
- Radius of gyration: 355mm
- Height: 460cm (holder closed)
- Clamp Max open is 55mm
- Holder of the widest distance: 98mm
The Kit do not include servos (In this clamp claw kit, you'd better use MG996R servos for the joint bears larger force,while MG995 servos for joints bears relatively smaller force). https://www.openhacks.com/page/productos/id/2229#.WcKs_tWCyCg

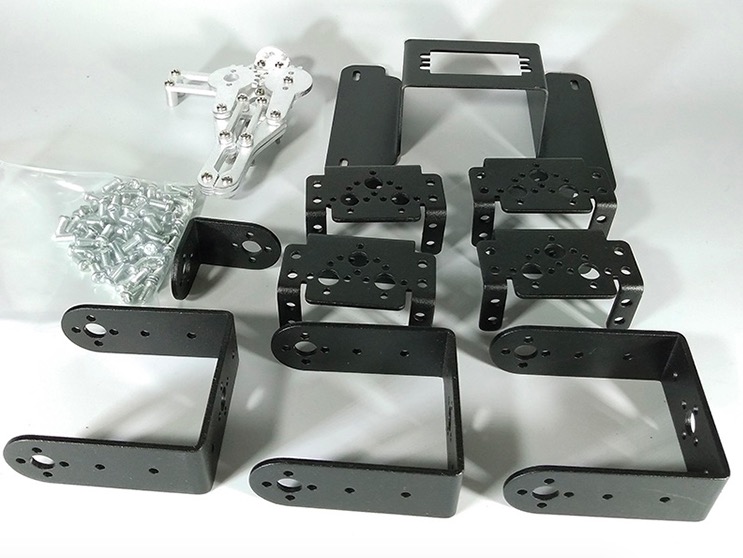

Package includes:
- 5 x Multi-functional servo bracket
- 4 x Long U-type servo bracket
- 1 x L-type servo bracket
- 3 x U-type robot waist bracket
- 4 x Miniature Ball Radial Bearing

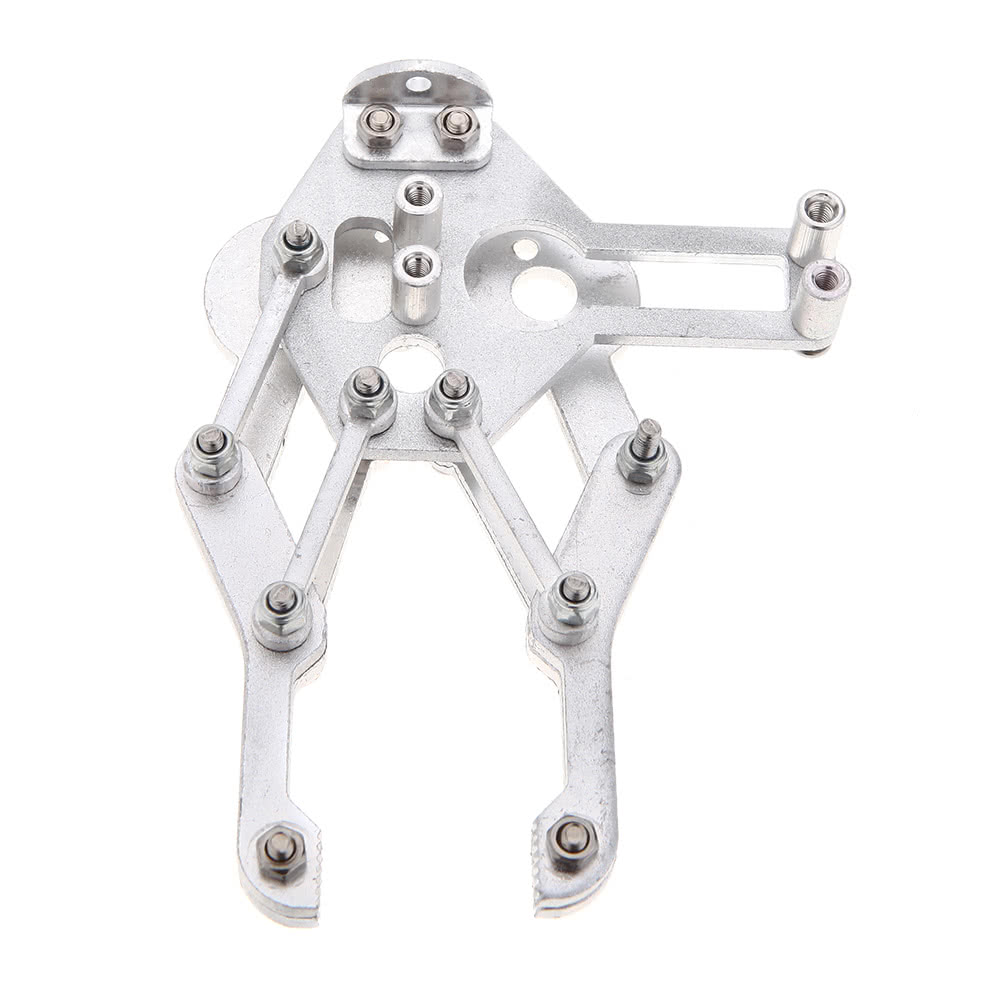

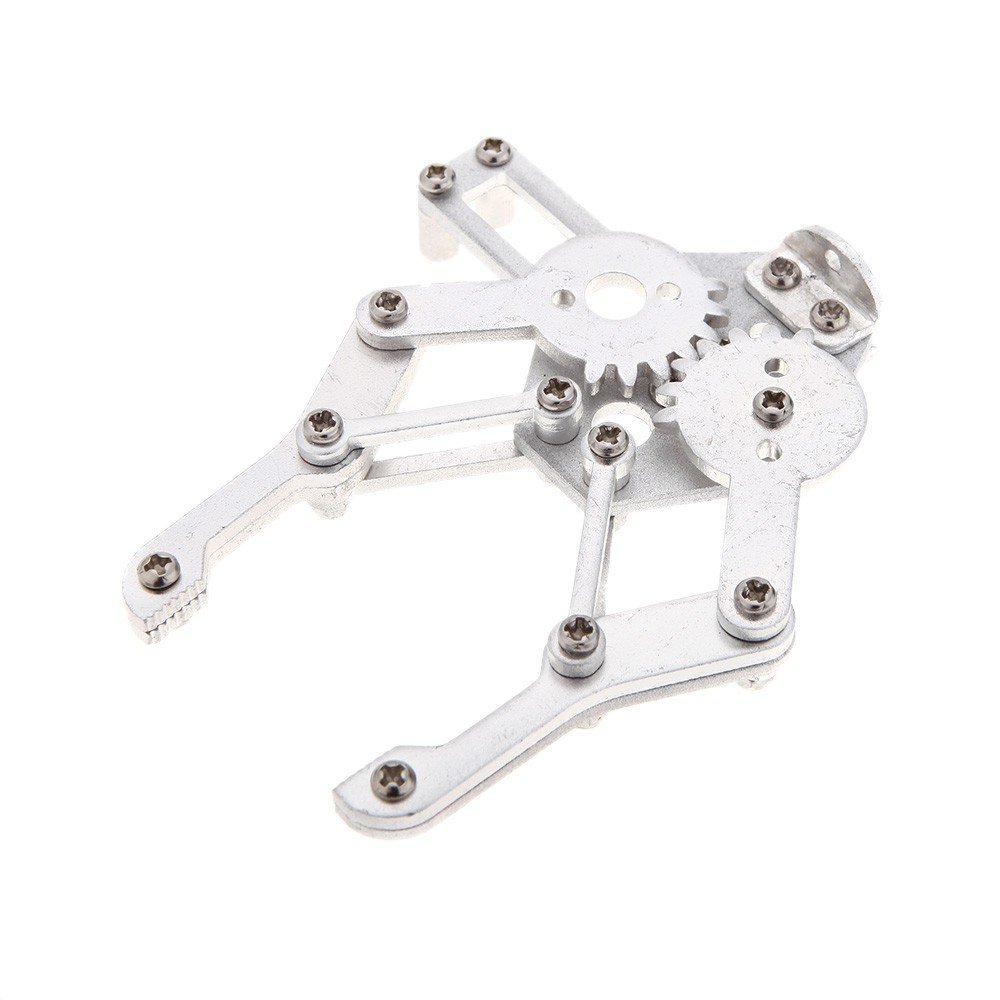

- 1 x Aluminium Clamp Claw
- 1 x Screw and screw cap set
