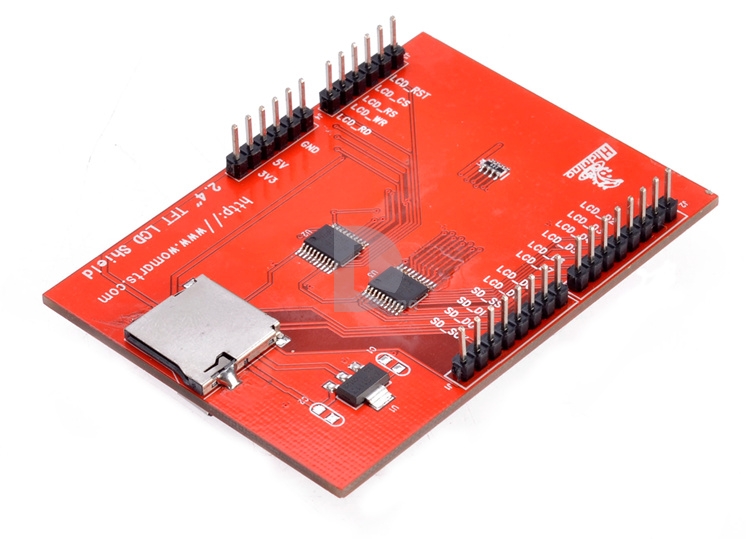

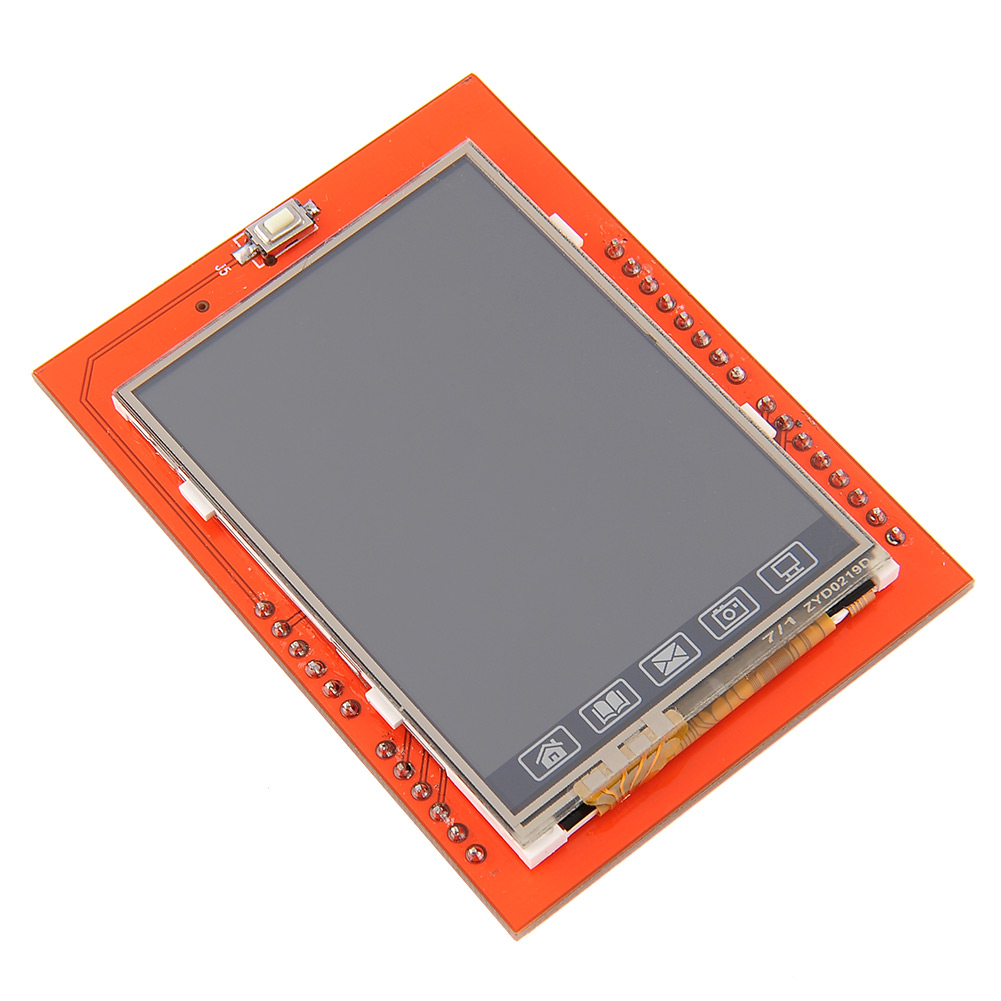

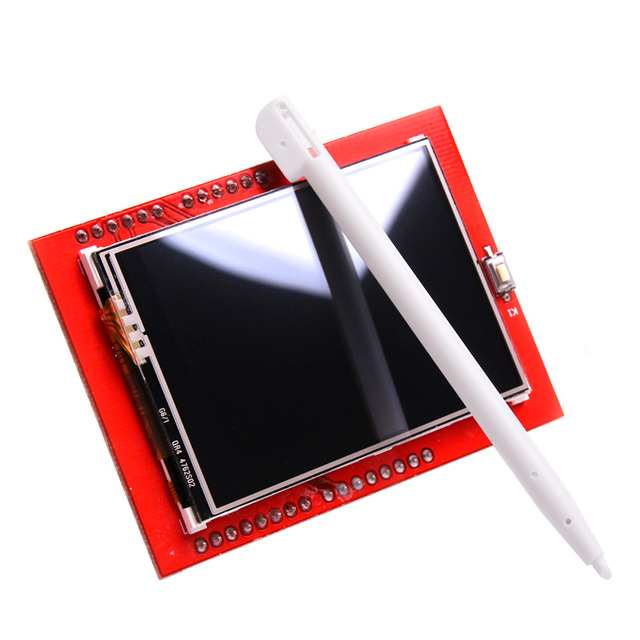

2.4 TFT Touch LCD for Arduino

2.4 TFT LCD for UNO R3 and mega 2560

Display LCD TFT táctil de tipo resistivo, el cual posee una resolución de 240x320 pixels. Brinda la posibilidad de controlar los pixeles de forma individual. Asimismo ofrece una amplia gama de colores (18 bits, 262000 colores). Posee ranura para MicroSD. Compatible con Arduino UNO y MEGA, y con Beeduino 328 y 2560.

COD: HTHR0092

Peso: 0.057 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 17846.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

2.4 inch TFT touch Screen LCD Module For Arduino. The LCD has excellent vivid color contrast.

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.



Technical Specifications:

  • 2.4″ diagonal LCD TFT display.
  • 240×320 resolution, 18-bit (262,000) color.
  • SPFD5408 controller with built in video RAM buffer.
  • 8 bit digital interface, plus 4 control lines.
  • Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4. and 5. Pin 12 is available if not using the microSD.
  • Works with any Arduino ‘328 or Mega (Leonardo not supported yet).
  • 5V compatible! Use with 3.3V or 5V logic.
  • Onboard 3.3V 300mA LDO regulator.
  • 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control.
  • 4-wire resistive touchscreen.
  • Size: 71 x 52 x 7mm
