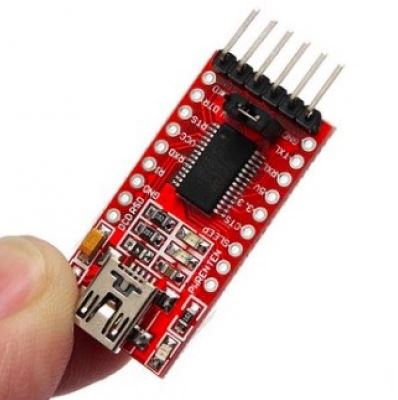

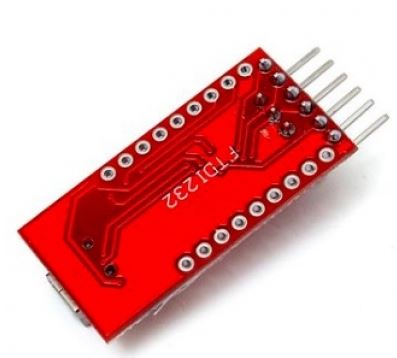

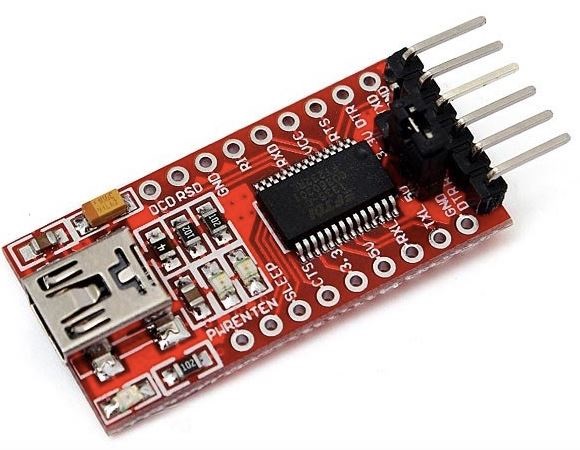

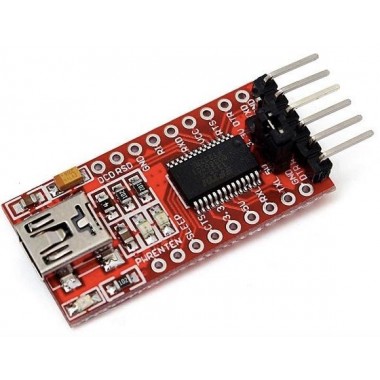

FTDI FT232RL USB to TTL Serial Converter Adapter Module 5V and 3.3V
![Principal](/library/timthumb/timthumb.php?src=/uploadsproductos/principal_fh_k0.jpg&w=380&h=380&zc=2)
Módulo FTDI FT232RL convertidor de USB a TTL Serie para Arduino. Se puede alimentar por USB y se puede elegir entre 5 y 3.3 V
COD: HTHR0130
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 6947.00
El producto no está disponible para la venta en este momento
Características
Features:
Chip: FT232RL
Draw out all signal port of FT232RL chip
RXD / TXD transceiver communication indicator
USB power supply, can choose 5V or 3.3V, set by jumper
With over current protection, using 500mA self-restore fuse
Pin definition: DTR, RXD, TX, VCC, CTS, GND
Pitch: 2.54mm
Size: 36 x 18mm (L x W)
Interface: Mini USB
Package included:
1 x FT232RL USB to serial converter module
