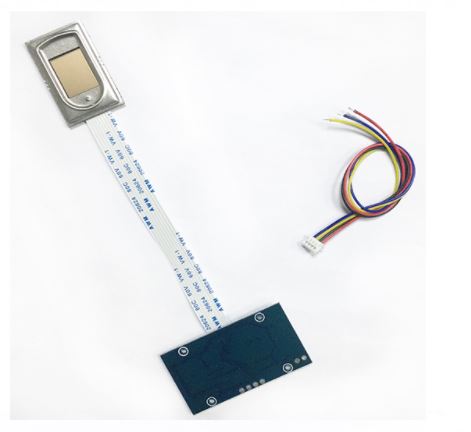

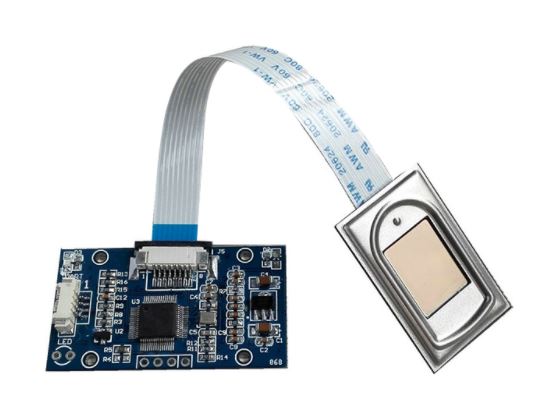

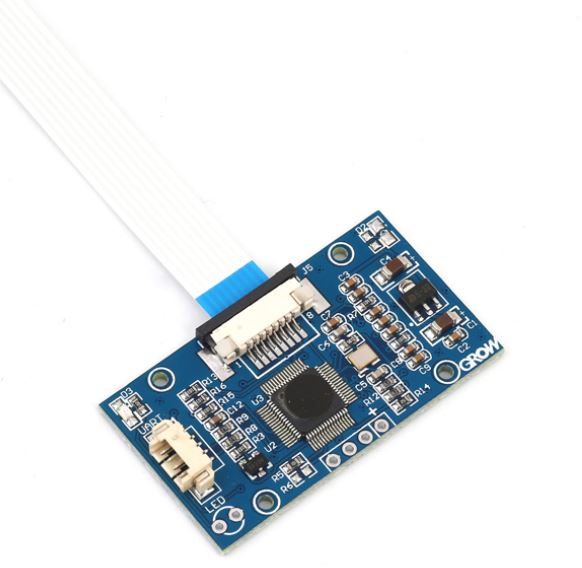

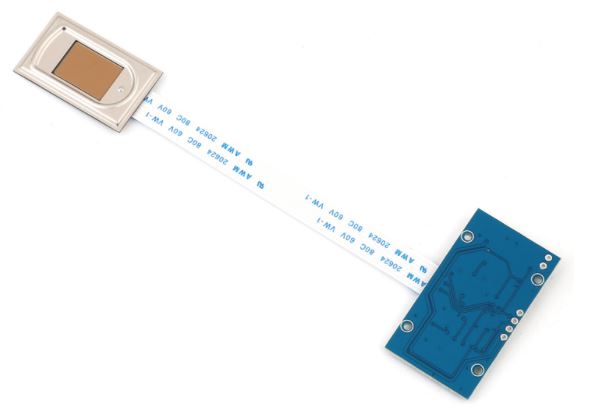

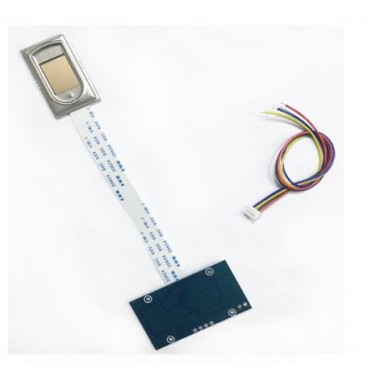

R303 fingerprint sensor module
El R303 es un lector de huellas dactilares con interfaz UART/USB2.0 de muy bajo consumo.
COD: GRR303
Peso: 0.011 Kg
Disponibilidad: Sin Stock
ARS 72073.00
El producto no está disponible para la venta en este momento
Características
Introduction
- Communication interface: USB and UART
- 1:N Identification (One-to-Many)
- 1:1 Verification (One-to-One)
- High speed fingerprint identification algorithm engine
- Self study function
- Fingerprint feature data read/write functions
- Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature withCaptured fingerprint
| Storage capacity: | 1000 |
| FAR | < 0.001 %(Security Level:3 ) |
| FRR | < 0.1 %(Security Level:3 ) |
| Template size: | 512 Bytes |
| Security level: | 5 (1, 2, 3, 4, 5(highest)) |

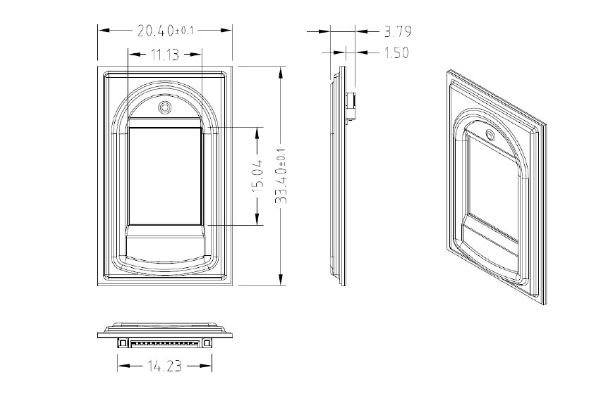

| Fingerprint reader module size: | 20 * 32 (mm) |
| Effective collection area: | 11 * 15 (mm) |

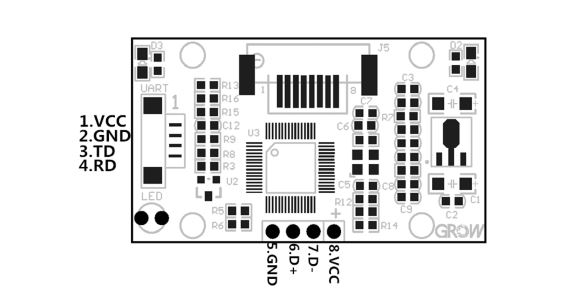

| Interface | UART TTL logical level/USB 2.0 |
|
BaudRate: (9600*N)bps, N= 1 ~12 (default N=6) |
|
| Power Supply: | Voltage DC4.2V-6V |
| Typical: 50 mA | |
| Working Environmen: | Working temperature :-10ºC - +40ºC |
| Working Humidity:20%– 85% |
r303_fingerprint_module_user_manual.pdf (674 Kb)
medidas (31 Kb)
