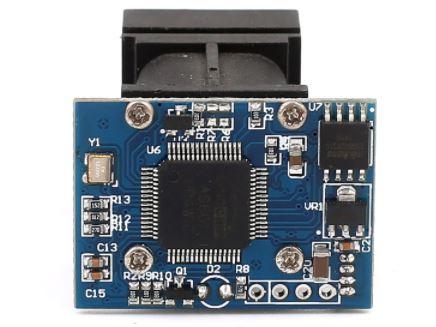

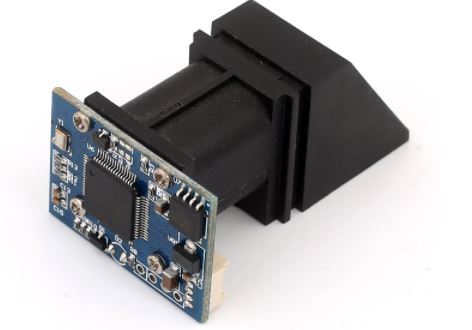

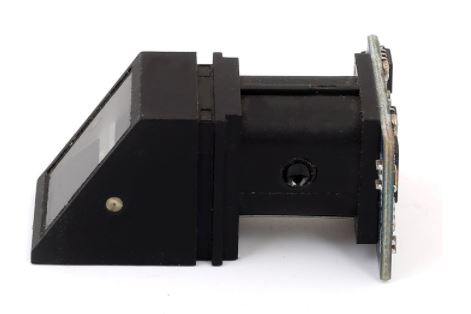

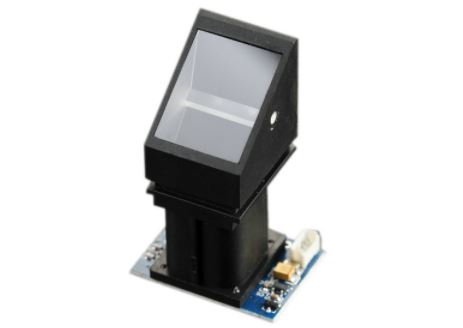

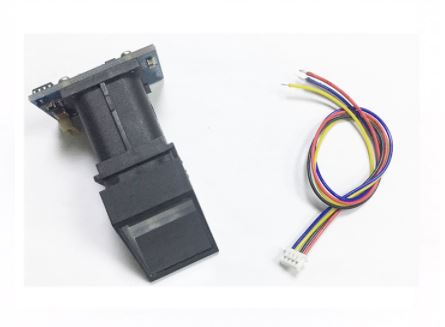

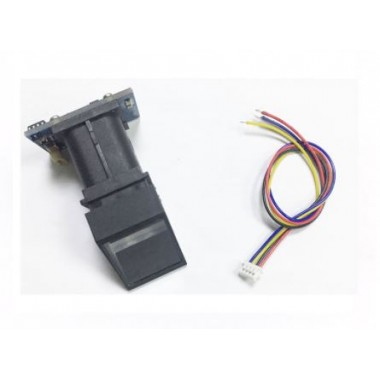

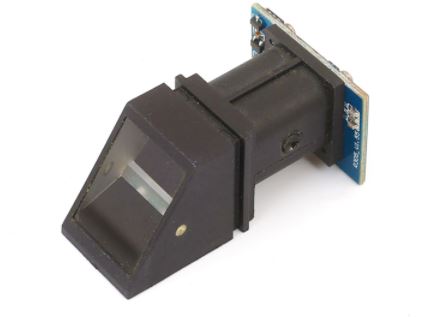

R305 fingerprint sensor module
El R305 es un lector de huellas dactilares con interfaz UART/USB1.1 de muy bajo consumo. Se puede utilizar para control de acceso, seguridad en varias aplicaciones de deposito de plata, cerraduras de puertas de los autos, etc.
COD: GRR305
Peso: 0.030 Kg
Disponibilidad: Sin Stock
ARS 43963.00
El producto no está disponible para la venta en este momento
Características
Introduction
- Integrated image collecting and algorithm chip together, ALL-in-One
- Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
- Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
- Low power consumption, low cost, small size, excellent performance
- Professional optical technology, precise module manufacturing technics
- Good image processing capabilities, can successfully capture image up to resolution 500 dpi
- Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.
Description
| Fingerprint sensor type: | Optical |
| Sensor Life: | 100 million times |
| Static indicators: | 15KV |
| Backlight: | bright red |

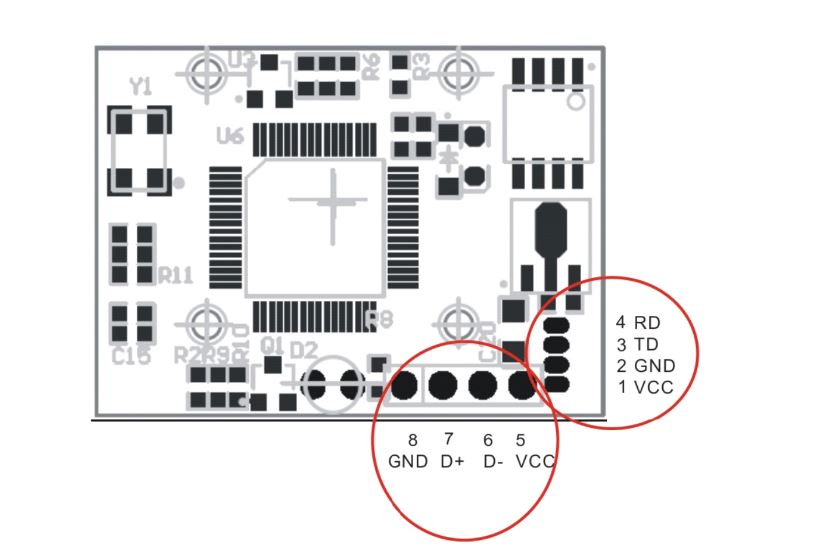

| Interface: | USB1.1/UART(TTL logical level) |
| Baud rate | (9600*N)bps, N=1 ~ 12 (default N=6) |

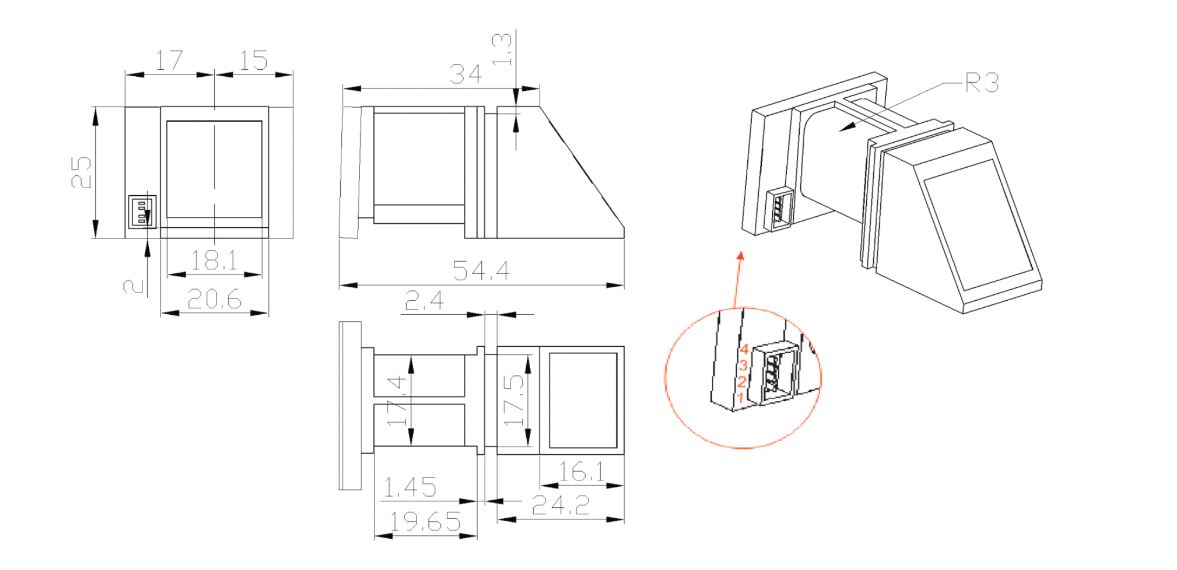

| Windows size | 18 mm*22 mm |
| Character file size: | 256 bytes |
| Template size: | 512 bytes |
| Security level: | 5 (1,2,3,4,5(highest)) |
| False Acceptance Rate (FAR) : | ≤0.001% |
| False Rejection Rate (FRR): | ≤0.1% |
| Resolution | 500 DPI |
| Power Voltage(Vin) | 3.6V min - 6.0V max |
| Working current: | Typical ≤90 mA, Peak 150mA |
| Matching Method: | 1:1 - 1: N |
r30x__fingerprint_module_user_manual.pdf (879 Kb)
Librería Arduino (4531 Kb)
