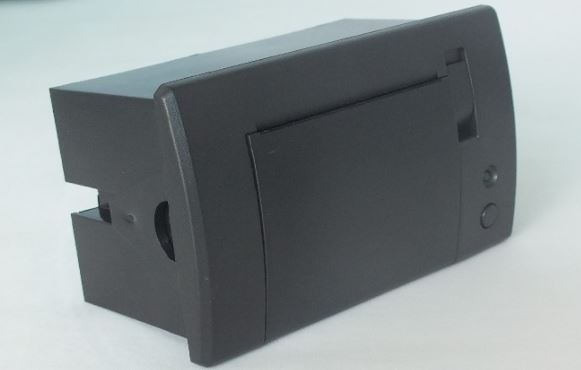

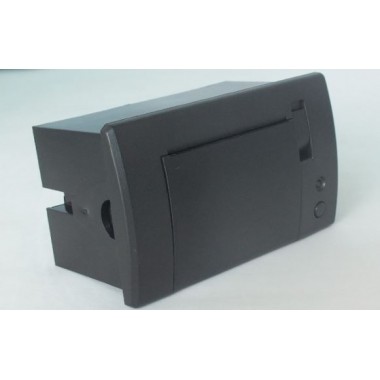

Mini Thermal Receipt Printer, Serial 5V

Principal

Impresora térmica (del tipo R1) que se puede conectar de 5 a 9V, posee interfaz TTL. Ideal para integrar a tus proyectos con microcontroladores

COD: TROIDO1005

Peso: 0.300 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 63049.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Type:

  • Type-R1 supports well arduino R1 library, specially the bitmap

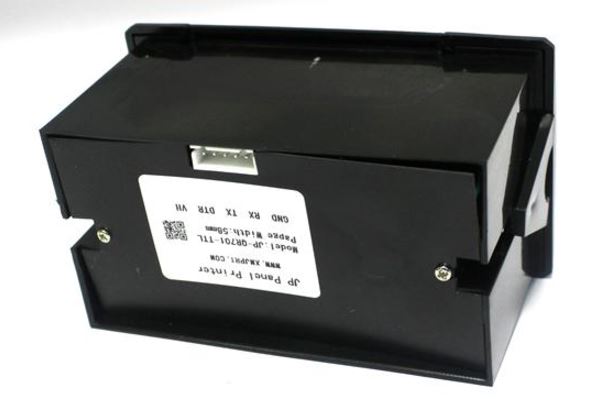

  • Type-R1 is 5p xh2.54

Features:

  • The thermal printers are also known as receipt printers, they’re what you get when you go to the ATM or grocery store.
  • Thermal printer also require no ink for printing, easy for maintaining.
  • This is an embeddable item, with serial interfacing, ideally can work with MCU, now it is avaialble to be used in your embeddable project.
  • Easy install with installation holes, fix clip in a open panel.
  • Input power is 5-9V, logic on 3.3-5V.
  • Arduino library supports to print text, barcodes, bitmap image, QR code.
  • Applicaton: taxi meter, recorder, self-service equipment, ticket machines, medical equipment, electronic equipment, testing equipment.
  • Demo video avaialble.
  • Package includes:
    • Main thermal printer,
    • 5P XH2.54 cable for type-R1
    • 1x roll of 57.5mm thermal printing paper
    • Installation 2x clip, both side.

Specifications:

  • Embedded depth of 32/36 mm
  • Dimensions (W x D x H) 103 × 57 × 50 mm
  • Installation panel size 111 × 65 mm
  • Print type Thermal
  • Print speed 50 – 85 mm / sec
  • Resolution 8 points / mm, 384 points / line
  • Effective print width of 48 mm
  • Character character set ASCII code, GB2312-80 (Chinese)
  • Print font ANK: 5 × 7, Chinese: 12×24, 24 × 24
  • Paper specifications Paper type Thermal paper roll
  • The paper width is 57.5 ± 0.5 mm
  • Paper thickness 0.06 to 0.07 mm
  • Paper core diameter 13 mm (minimum)
  • Roll the largest diameter: 23 mm
  • Reliability Mean Time Between Failures (MCBF) 5 million rows
  • Interface TTL
  • Embedded depth of 32/36 mm
  • Power supply 5V-9V DC
  • Ambient operating temperature 5 ° C to 50 ° C
  • Operating humidity 10% ~ 80% 1
  • Storage temperature -20 ° C to 60 ° C
  • Storage humidity 10% ~ 90
