2.4G Zigbee CC2530 Module
Modulo de radiofrecuencia Zigbee basado en el CC2530. Soporta comunicación punto a punto o broadcast.
COD: TRONWL1065
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 20183.00
El producto no está disponible para la venta en este momento
Características
Main Features:

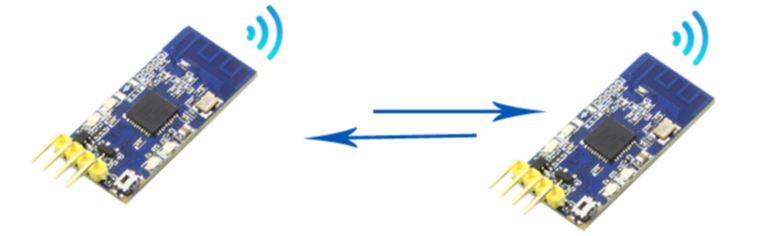

- support Point-to-Point mode or boardcast mode
- 0% data lost on Point to point mode, only one point to one point,
- 1% data lost on boardcase mode, all points to all points
- send and receive in the mean time, no packet length limit, full-duplex
- wide range of voltage auto support, 3~5.5V
- operational current 30mA
- 4.5dBM operational power
- USB TTL 3.3-5.5V auto supported

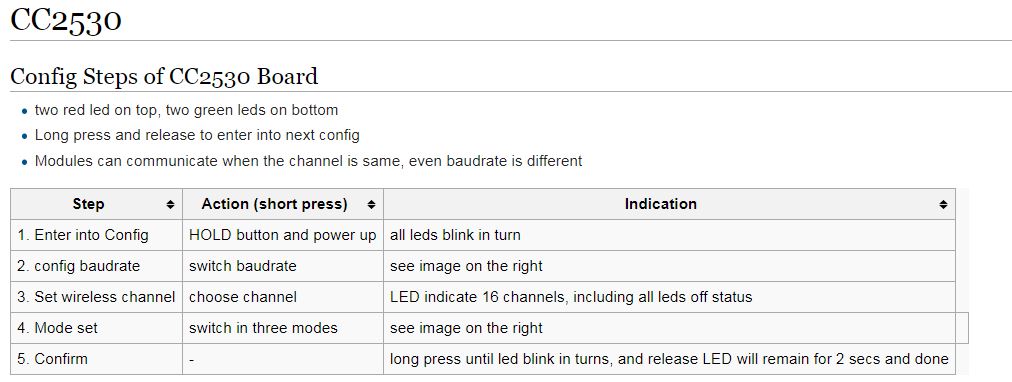

- easy config: button press config
- open area transmission distance 250 meters
- on board PCB antenna
- 16*32mm, wireless 2.4 – 2.45 G

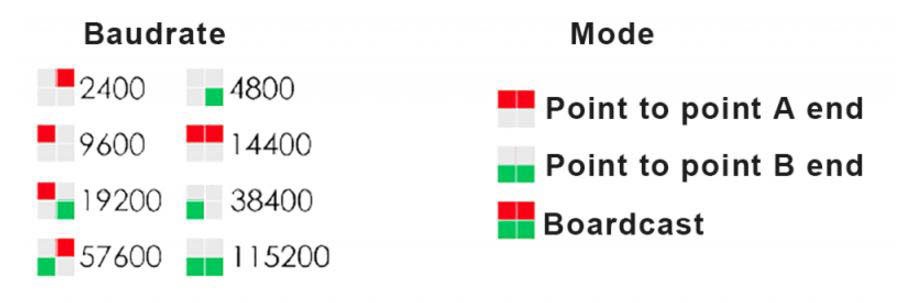

- Transmission rate 3300 Bps, baudrate support: 115200, 57600, 38400, 19200,14400, 9600, 4800. 2400

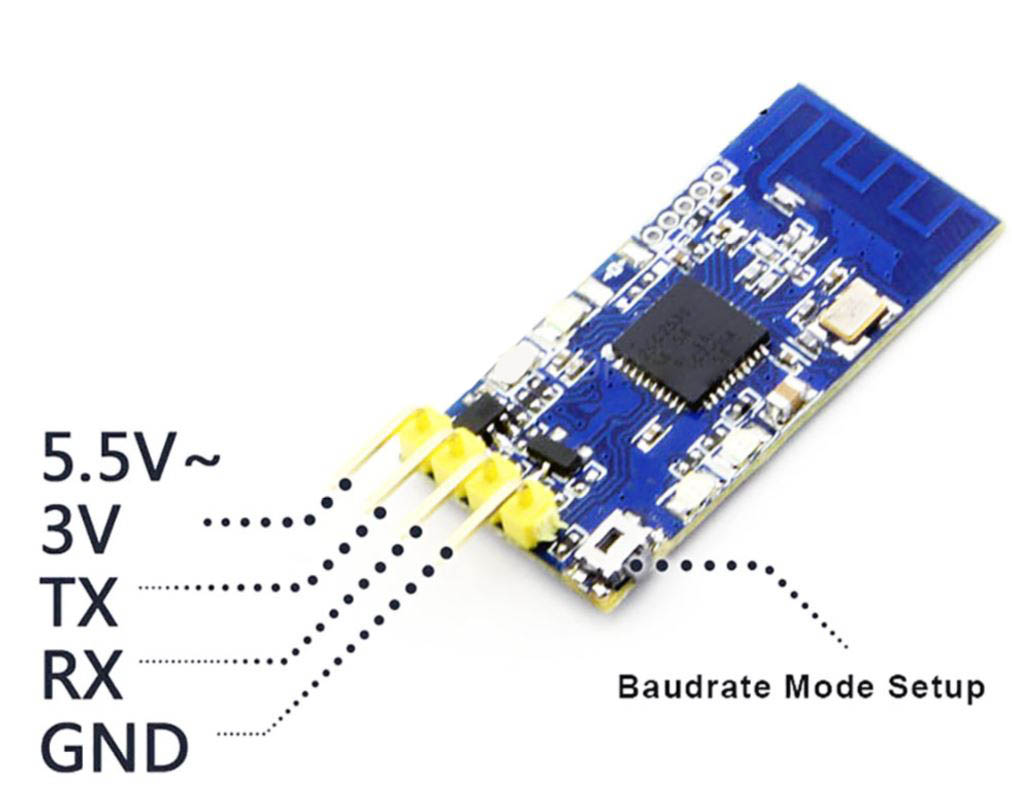

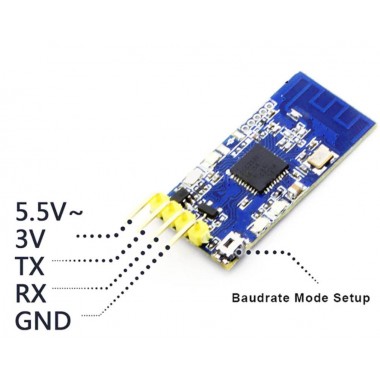

- Serial USB-TTL interface
