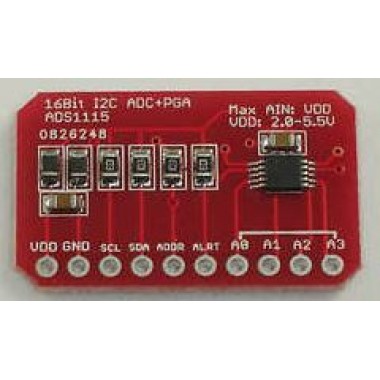

ADS1115 16bits ADC+PGA Breakout Board
Breakout que incluye conversor analógico-digital de 16 bits y amplificador de ganancia programable (PGA). Posee interfaz I2C .
COD: TROMSP1040
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 15371.00
El producto no está disponible para la venta en este momento
Características
Description
- Wide supply range VDD : 2-5.5V
- Low Power consumption
- Continuous Mode: Only 150µA
- Single-Shot Mode: Auto Shut-Down
- Programmable data rate: 8-860 SPS (samples/second)
- Internal Low drift voltage reference
- Internal oscillator
- Internal PGA (programmerable gain amplifiter, up to x16)
- I2C interface connection, pin address configurable, 7-bit addresses between 0x48-0x4B, (see the datasheet table 5)
- Four single ended, or two differential inputs
- Programmable comparator
ads1x15_library.zip (9 Kb)
datasheet_7e.pdf (950 Kb)
