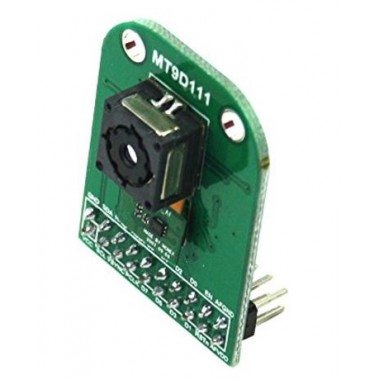

2MP MT9D111 Auto Focus lens camera flex module with Adpater board
Módulo MT9D111 que incluye una cámara de 2 MP con auto-foco. Compatible con la placa ArduCAM CC3200.
COD: UCB0054
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 33379.00
El producto no está disponible para la venta en este momento
Características
Item Description
Features:
- Aptina MT9D111 camera module with Auto Focus Lenss
- Flex Calbe 0.4mm pin pitch
- Provide pin out and mating connector datasheet and technical supports
- DigitalClarity CMOS imaging technology
- Ultra low-power, low-cost, progressive scan
- 2-megapixel resolution (1,600H x 1,200V)
- 1/3.2-inch optical format
- 15 frames per second (fps) at full resolution
- Integrated auto focus and optical zoom
- Real-time JPEG encoder
- Integrated microcontroller for flexibility
- On-chip image flow processor for single-chip camera module
- On-chip auto focus with configurable GPIO interface
- Mechanical shutter support
- Numerous automatic functions for on-the-fly image correction and enhancement
- Fully automatic Xenon- and LED-type flash support,including fast exposure
- adaptation
- On-chip, 10-bit analog-to-digital converter
- Two-wire serial interface
- ITU_R BT.656 (YCbCr), 565RGB, 555RGB, 444RGB and raw output data formats
- JPEG 4:2:2 and 4:2:0 output
Package including:
2Megapixel MT9D111 Auto Focus lens camera flex module with Adapter Board
