GQ16F-10EM elevator push button:
Productos

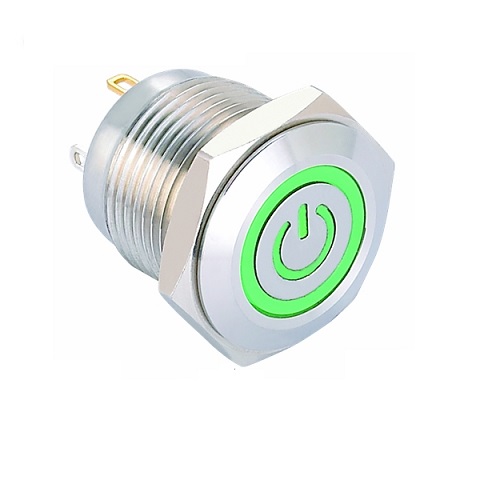

Stainless Steel Push Button Switch Power Symbol LED - 16mm GREEN

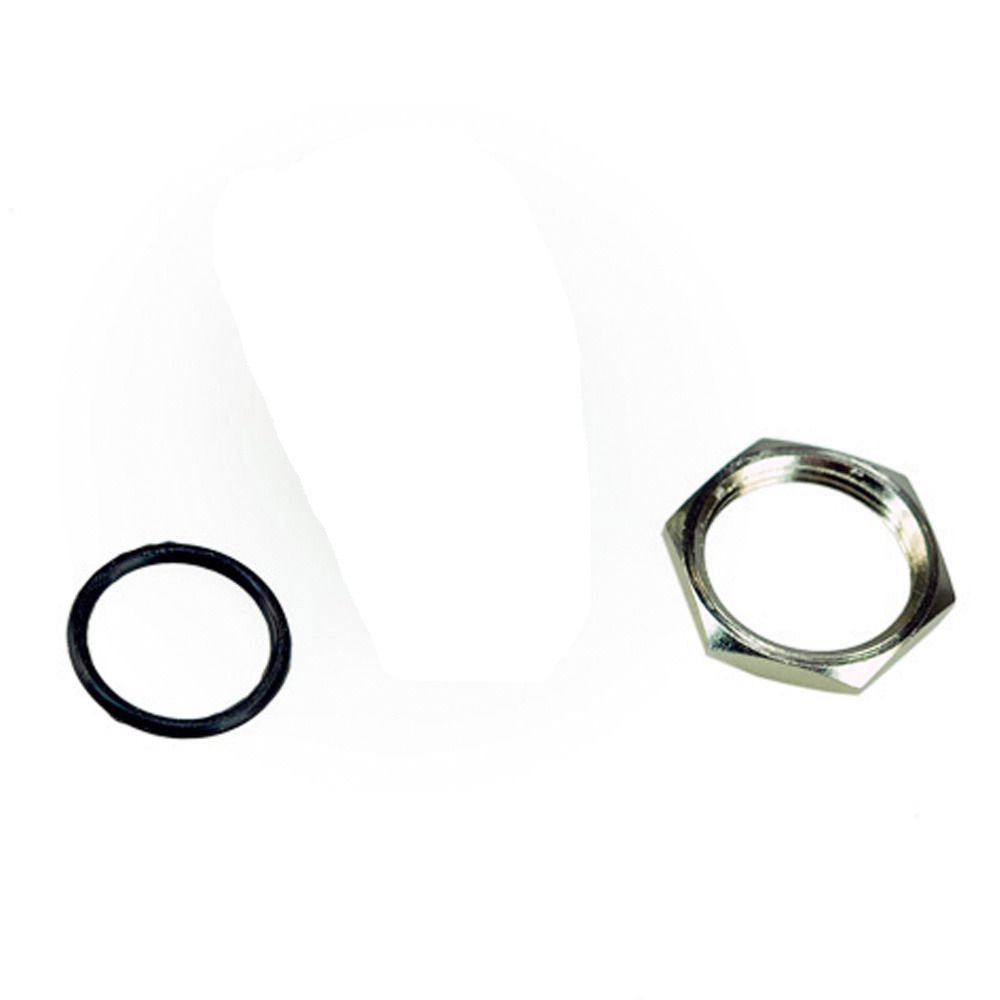

Pulsador metálico plano de tipo momentáneo, con iluminación led color verde y diámetro de rosca: 16mm. Incluye tuerca y junta. Requiere resistencia limitadora externa para alimentar el LED de 3v (se incluye una de 180 ohms, para 5V). Para aplicaciones tal como elevadores, dispensadores de boletos, aplicaciones de tipo industrial, etc. Calificado como IP67 (nivel de resistencia al polvo y agua).
COD: DAGQ16F10EP-G
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 7259.00
El producto no está disponible para la venta en este momento
Características
Description:
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
The elevator push button are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.
We can’t talk out their advantage in a few words, but they are more and more popular in the world.

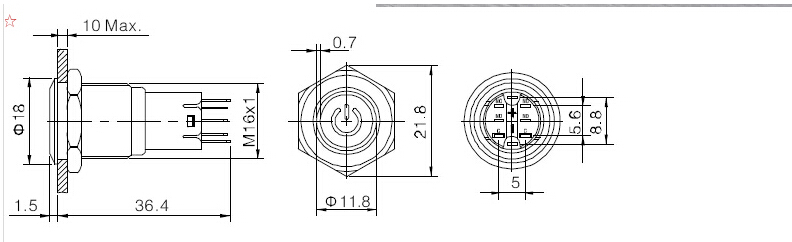

Please check the datasheet below:
| Rating: | 3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | 50,000 Cycles | Function: | momentary |
| Dielectric strength: | 2,000VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1,000mΩ min | Panel cutout: | 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. |
| LED voltage: | 3V, 6V, 12V, 24V, 48V, 110V, 220V | Waterproof Grade: | IP40-IP67 |
| Contact Configuration: | Single Pole | OEM or ODM: | Available |
Datasheet (248 Kb)
