Banana Pi M64

Principal

La Banana Pi M64 es una super mini-computadora que incluye Wi-fi y bluetooth on-board. Esta versión (la M64) esta basada en un procesador Quad-Core ARM y tiene una memoria SDRAM DDR3 de 2 GB

COD: SINOBPIM64

Peso: 0.045 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 179999.99

Cantidad:

El producto no está disponible para la venta en este momento

Características

What is Banana Pi M64?

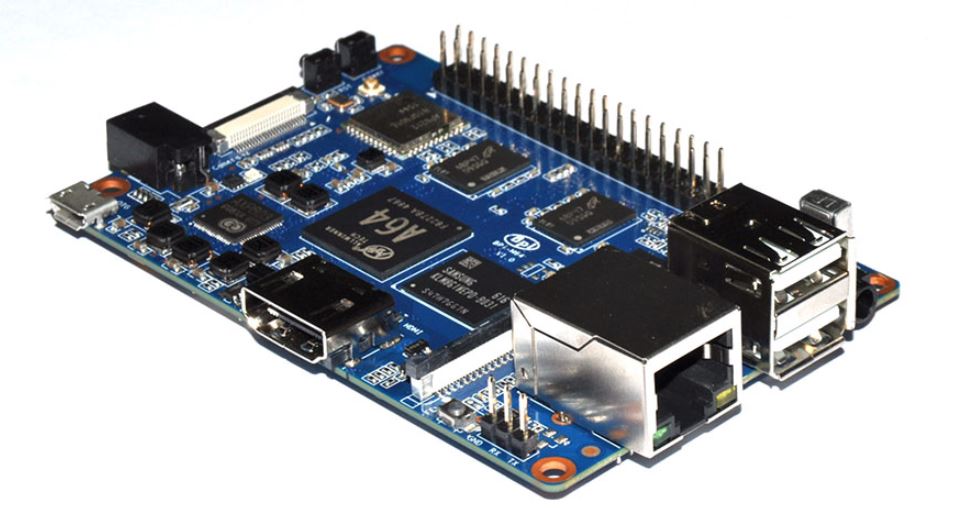

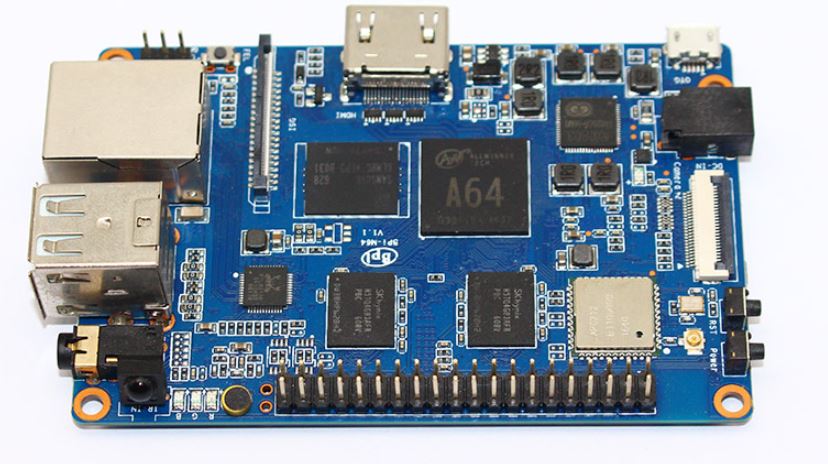

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port. The processor is pin-to-pin comptialbe with R18, so it comes with two versions:M64 and M64-R18This is the M64 version.
Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M4 will be reserved for an upcoming board
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

The key features of M64:

  • 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor-A64
  • 2GB DDR3 SDRAM
  • 8G EMMC
  • 10/100/1000Mbps Ethernet
  • WiFi (AP6212) & Bluetooth



M64(-R18) Specifications

  • CPU 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor
  • GPU MALI-400 MP2 @ 500MHz
  • Memory 2GB DDR3 SDRAM (shared with GPU)
  • Storage Support MicroSD Card(up to 64GB)/eMMC(8GB onboard)
  • Onboard Network 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
  • WiFi 802.11 b/g/n (AP6212)
  • Bluetooth BT4.0 (AP6212)
  • Video In CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz
  • Video Out HDMI 1.4 with resolutions (upto 4K @24Hz)
  • MIPI DSI for RAW LCD panels
  • Audio Out 3.5 mm Jack and HDMI
  • Audio In On board microphone
  • Power Source 5V 2A DC port
  • USB Ports 2x USB 2.0, USB OTG(Micro USB)
  • Buttons Reset button, Power button, U-boot button

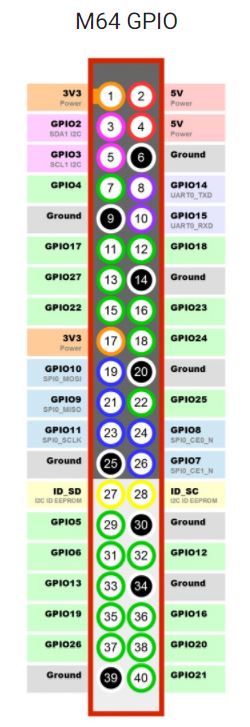

  • GPIO 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
  • LED Power status Led and RJ45 Led
  • IR Onboard IR receiver
  • OS Android and Linux etc.OS
  • Dimensions 92mm x 60mm
  • Weight 45g

Links:

GitHub

GitBook
