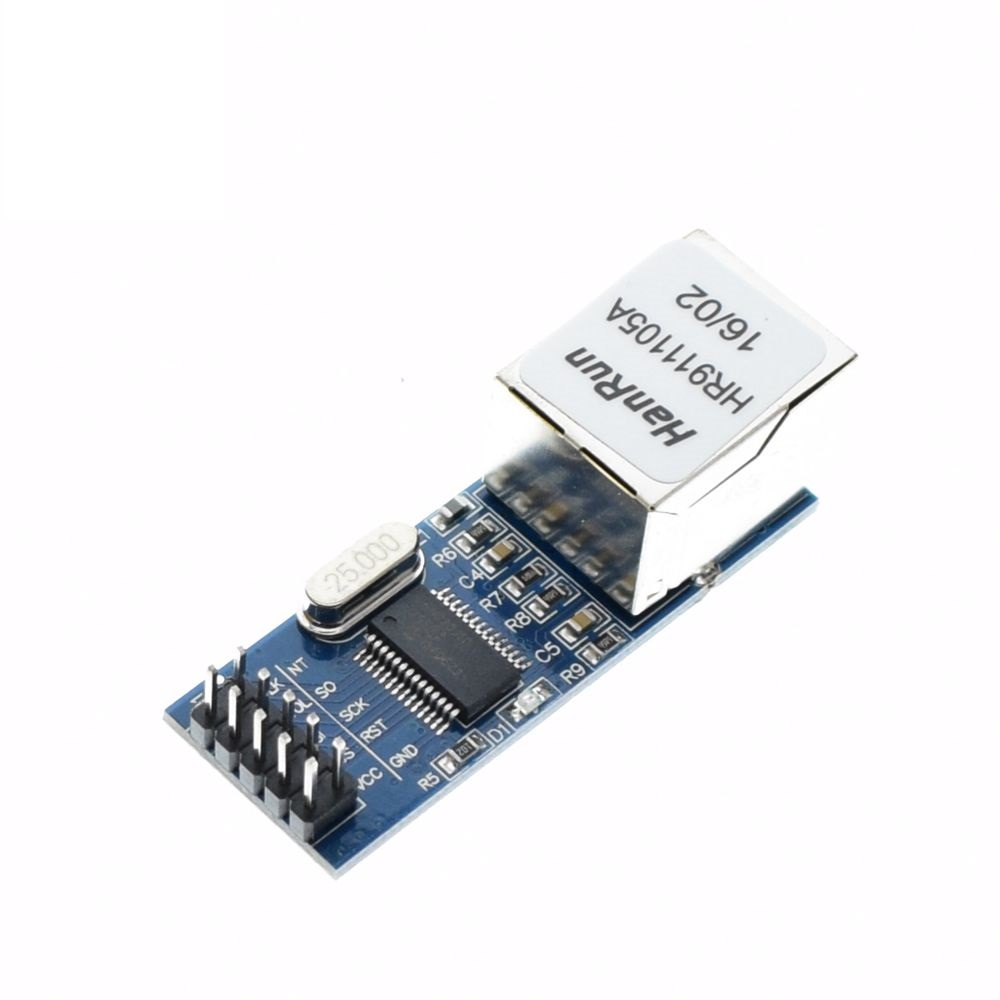

Mini ENC28J60 LAN Ethernet Module

mini ENC28J60 LAN Ethernet Network Board Module 25MHZ Crystal AVR 51 LPC 3.3V

OFERTA POR RENOVACION DE STOCK!!! Módulo Ethernet de pequeño tamaño. Dispone de interfaz SPI y se alimenta con 3.3v. Basado en el integrado ENC28J60. Compatible con Arduino. Ideal para proyectos de Internet de las cosas (IoT).

COD: HTHR0214-11

Peso: 0.012 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 2990.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

• IEEE 802.3 compatible Ethernet controller
• Integrated MAC and 10BASE-T PHY
• Receiver and collision squelch circuit
• Supports one 10BASE-T port with automatic
polarity detection and correction
• Supports Full and Half-Duplex modes
• Programmable automatic retransmit on collision
• Programmable padding and CRC generation
• Programmable automatic rejection of erroneous
packets
• SPI™ Interface with speeds up to 10 Mb/s
• Buffer: 8-Kbyte transmit/receive packet dual port SRAM
• Two programmable LED outputs for LINK, TX,
RX, collision and full/half-duplex status
• Seven interrupt sources with two interrupt pins
• 25 MHz clock
• Clock out pin with programmable prescaler
• Operating voltage range of 3.14V to 3.45V
• TTL level inputs
• Temperature range: -40°C to +85°C Industrial,
0°C to +70°C Commercial (SSOP only)
• 28-pin SPDIP, SSOP, SOIC, QFN packages



Dimensions:

 48.8x18.5mm
