5.08mm Right Angle Screw Terminal block - 2 pin

5.08mm Right Angle Screw Terminal block - 2 pin

Bornera enchufable de 2 terminales para montar en circuito impreso, con ángulo de 90 grados y paso 5.08mm (0.2").

COD: HTHR0622

Peso: 0.004 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 642.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:

It is used in PCB for connecting power source or other wires.
90 degrees angle design, suitable for PCB space shortage or in need of using 90 degrees angle.
Good insulating property, never worried about getting an electric shock, safe and reliable.

Specifications:

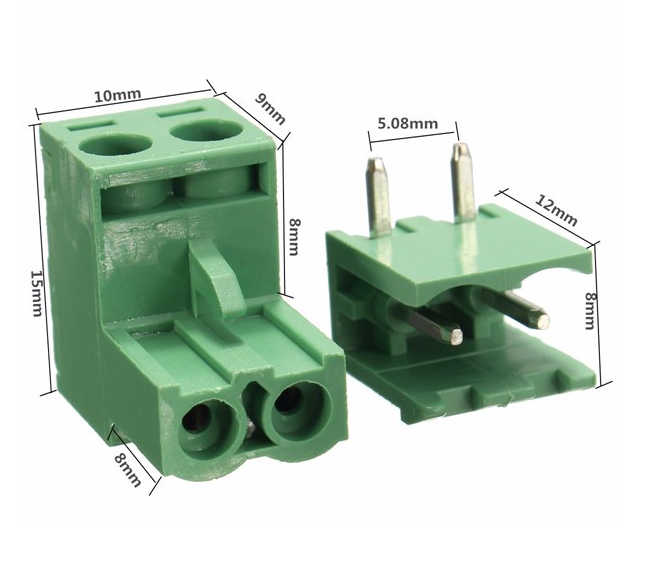

1. Pitch: 5.08mm (0.2")
2. Pin header: Brass Tin plated
3. Housing: PA66.UL94V-0
4. Poles: 2 Pin
5. Rated voltage: 300V 10A
6. Model: 2EDGKA
7. Rated current: IEC:15A; UL:10A
8. Withstanding voltage: AC2500V 1 minute
9. Temperature range: -40 ºC ~ 105 ºC
10. MAX soldering: 250 ºC for 5 sec.
