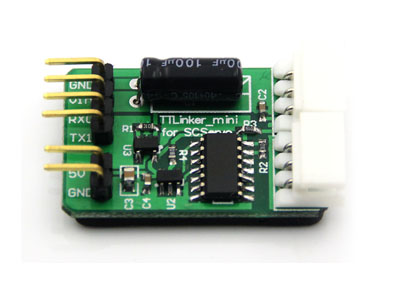

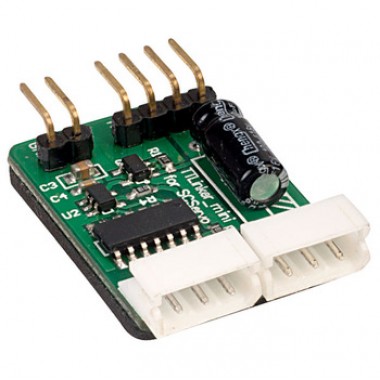

Signal conversion board between Arduino and SCServo

Signal conversion board between Arduino and SCServo

Placa adaptadora de señales para ser utilizada como interfaz entre Arduino y SCServo. Basado en el 74HC126D.

COD: FETTLINKMINI

Peso: 0.004 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6067.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

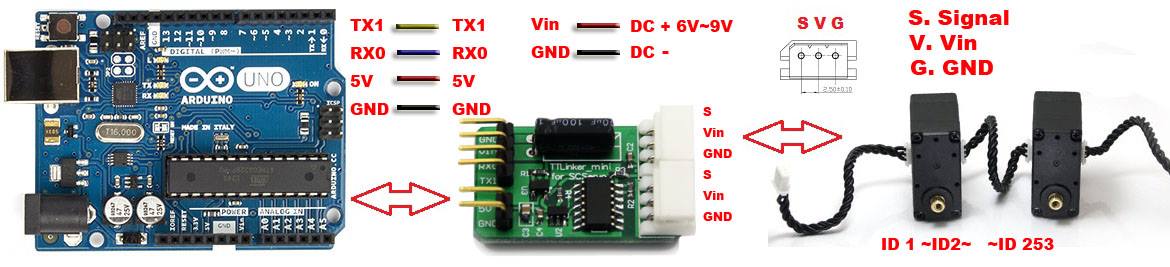

  • TTLinker is a signal conversion board. For exmple Arduino needs to convert its UART signals to the half duplex type and through TTLinker connect to SCServo.
  • In a few words 4 wire change to 3 wire.
  • Serial communication protocol please click here.

Specification:

  • Weight: 3.5g.
  • Dimension(L*W*H): 35mm * 21mm * 8.3mm.

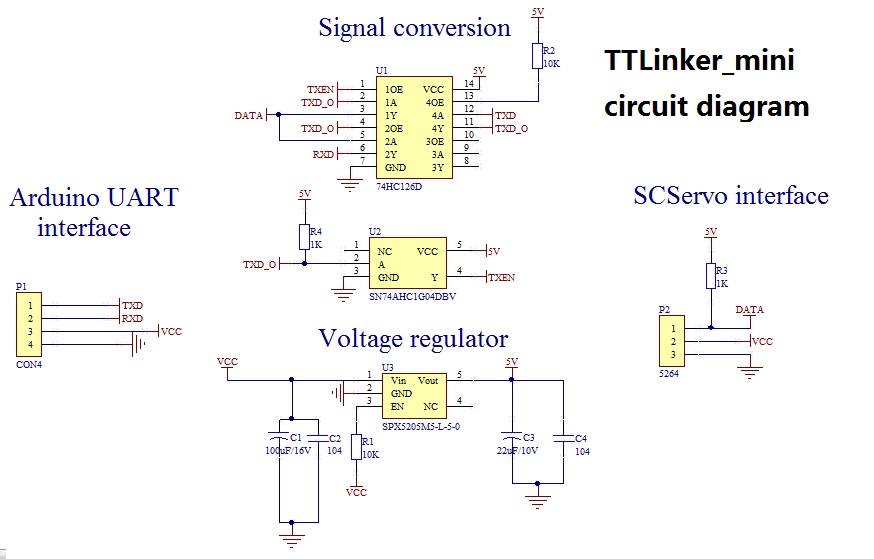

  • Controller: 74HC126D.
  • Working Voltage:

Allowed Range: 6V~9V.
Recommended Voltage: 7.4V (Li-PO 2cell).
Output Voltage: 5V (max 150mA).

  • Consumed Current:

When IDLE: 10mA.
External I/O Maximum Current: 150mA.
Working Temperature: -5℃~60℃.

  • External I/O Device:

2pin For 5V Output: 1
3pin For SCServo Connector: 2
4pin For Arduino or Other Controller UART: 1

  • Work Mode Protocol Type: SCS Mode.
  • Communication Speed: 8400bps~1M bps.
