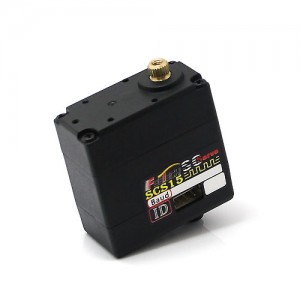

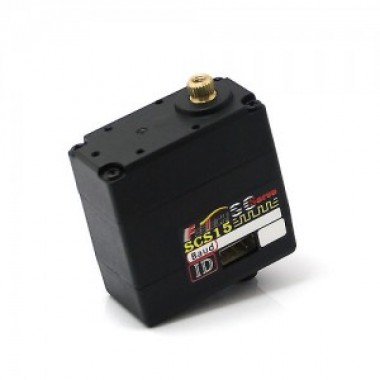

FTFCSCS15 SCServo Multi-purpose UART Bus Robot Servo for Arduino DIY

SCServo Multi-purpose UART Bus Robot Servo for Arduino DIY

Servo SCS15 de Feetech. Se comunica por bus UART (38400bps ~ 1 Mbps). Posee un rango de voltaje de entrada de 6 V ~ 8.4 V. Dispone de doble eje posibilitando dos modos de operación (modo servo y modo rueda).

COD: FTFCSCS15

Peso: 0.056 Kg

Disponibilidad: En Stock

ARS 47824.00

El producto no está disponible para la venta en este momento

Características

Product Details:

SCServo can work at servo mode and wheel mode:

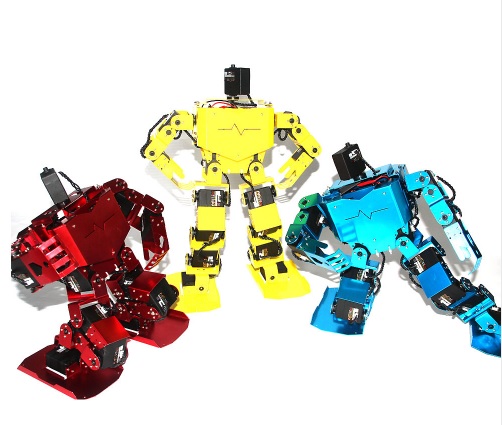

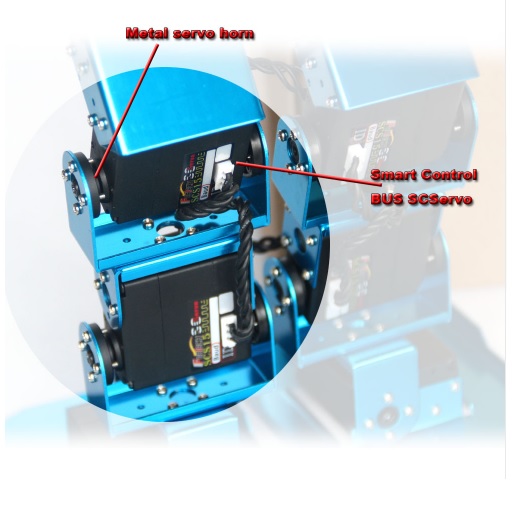

The servo mode can be used to multi-joints robot since the robots can be controlled with specific angles. (The factory default setting is servo mode)
The wheel mode can be used to wheel-type operation robots since motors of the robots spin infinitely. (If wheel mode is available you need to program the value of position limitation the both are 0.)
If you want to reprogram servo, you need to download the PC software and to connect SCPC-2(or use SCServo controller SCM-1) between servo and PC. Also can use Arduino and TTLinker_mini to reprogram it.

SCServo has a unique ID number to identify on BUS network:

The range from 0 to 253 (0xFD) can be used (The factory default setting is ID 1), and, especially, 254(0xFE) is used as the Broadcast ID. If the Broadcast ID is used to transmit Instruction Packet, we can command to all SCServo.
After programmed servo ID, to be best way is written it on the sticker of servo. If not, maybe you will forget the ID when you programmed many servos.

SCServo have kinds of baud rate available:

The baud rate from 38400 bps to 1M bps can be used.
They are 38400, 57600,76800,115200,128000,250000,500000,1000000. (The factory default setting is 1000000 bps).

Can feedback the value of position, temperature, load, speed and input voltage:

How to feedback the value of SCServo please refer Arduino library SCServo.

SCServo is easy to be control by Arduino:

SCServo needs to have a TTLinker_mini connect to between Arduino and SCServo.
If not please reference Schematic of the TTLinker_mini.
TTLinker_mini is a signal conversion board. Arduino needs to convert its UART signals to the half duplex type and through TTLinker_mini connect to SCServo.

TTLinker_mini Connection between Arduino and SCServo:

We have SCServo library to be used when you are using Arduino to control SCServo. If you want to download it please click here.

Specification:

SKU	FT-SCS09	FT-SCS15

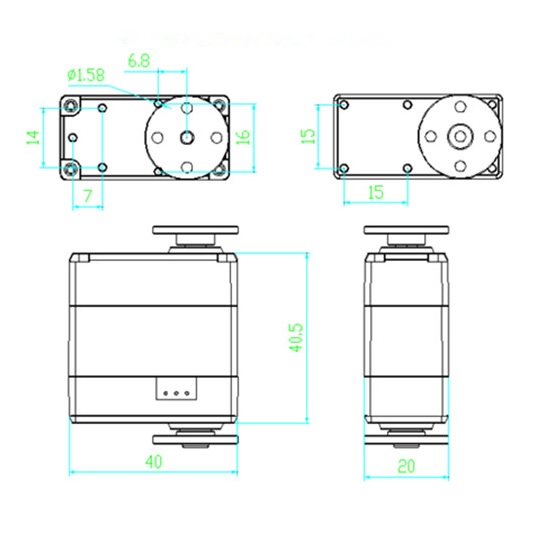

Dimensions	40.0X20.0X40.5mm	40.0X20.0X40.5mm
Weight	56g(1.98oz)	56g(1.98oz)
Gear Type(Ratio)	Metal(217:1)	Metal(275:1)
Bus Interface	TTL Level Multi Drop	TTL Level Multi Drop
Position Sensor(Resolution)	Potentiometer(215°/1024)	Potentiometer(215°/1024)
Operating Angle	200°(Servo Mode)	200°(Servo Mode)
Control System	Bus Packet Communication	Bus Packet Communication
Protocol Type	Half duplex Asynchronous Serial Communication
ID	254 ID (0~253)	254 ID (0~253)
Communication Speed	38400bps 1 Mbps	38400bps 1 Mbps
Feedback	Position, Temperature, Load, Speed, Input Voltage
Motor Type	Carbon	Carbon
Bearing Type	2BB	2BB
Operating Voltage	6V~8.4V	6V~8.4V
Stall Torque(Kg.cm)	10(6V)11.5(7.4V)13(8.4V)	15(6V) 16.5(7.4V)17(8.4V)
Stall Current(A) :	1.5A(7.4V)	1.5A(7.4)
Operating Speed(RPM)	80(6V)90(7.4V)100(8.4V)	55(6V)65(7.4V)73(8.4V)
Connector(Wire Length)	3P&5264 (15cm)	3P&5264 (15cm)
