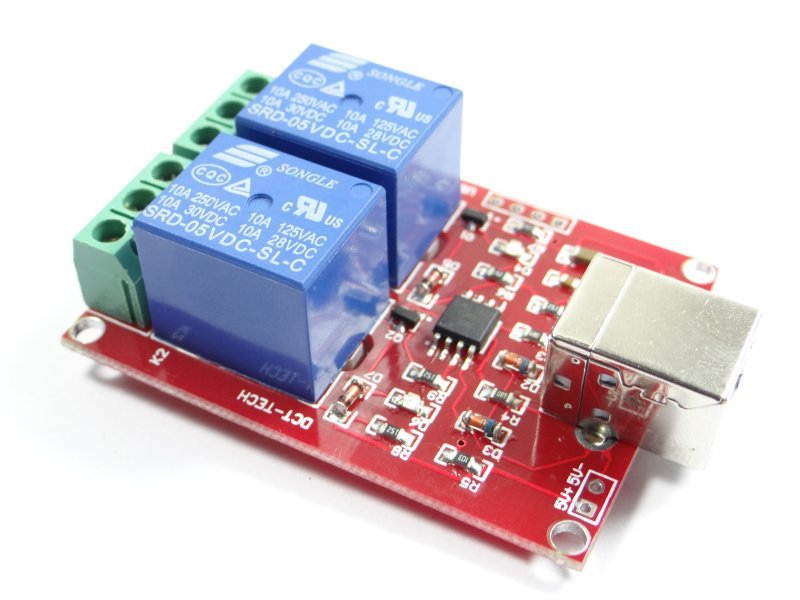

2 Channel 5V Relay Module 10AMP USB

2 Channel 5V Relay Module 10AMP USB

Relay controlado por USB, de dos canales. Soporta cargas de 250v, 10A en AC, y cargas de 30v, 10A en DC. Dispone de un software compatible con Windows y Linux con el cual puede controlarse el relay.

COD: HTHS0086

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 14382.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This is USB controlled relay Board with 2  channels. It’s uses HID USB, so no need to install any driver in  windows system. You just need to install the software. We also provide an application and the  C++ develop library that you can easy to integrate this module to your project.


  • PCB SIZE: 56.5mm*40.6mm.
  • Support WIN7, XP 32 -bit, Linux.
  • The relay can control the  maximum voltage 250V, 10A AC load and 30V, 10A DC load.



Module Parameter:

Relay Type

Single 5V Relay

Relay QTY

2

Contack Type

NC/ COM/ NO

Input Voltage

DC 5V

Input Current

》300mA



Application:

1. Supply the application code(Green indicates that the  relay is closed , the red open).
2. Supply C++ lib and dll for building your own project (include  usb_relay_device.dll, usb_relay_device.lib, usb_relay_device.h).Open the device  , the software automatically obtain the current working state relay.

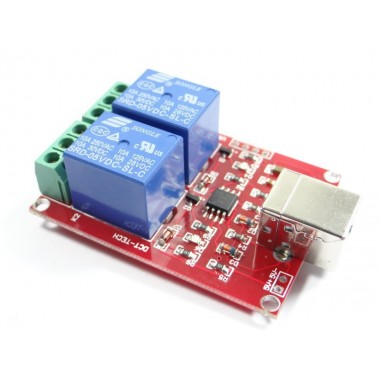

Galería de Imágenes
