SparkFun OBD-II UART

SparkFun OBD-II UART

Ésta placa tiene como función hacer de intérprete, traduciendo de OBD-2 a UART. El protocolo OBD II detecta fallos eléctricos, químicos y mecánicos que pueden afectar al nivel de emisiones del vehículo. Mediante la interfaz UART, es posible capturar la información OBD-2, y poder de esta forma, usarla para diversos objetivos, entre ellos, monitoreo y control.

COD: SFWIG09555

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 86263.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

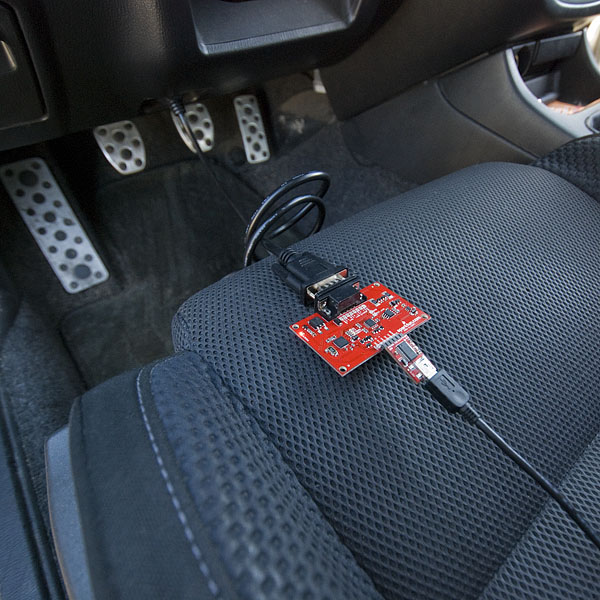

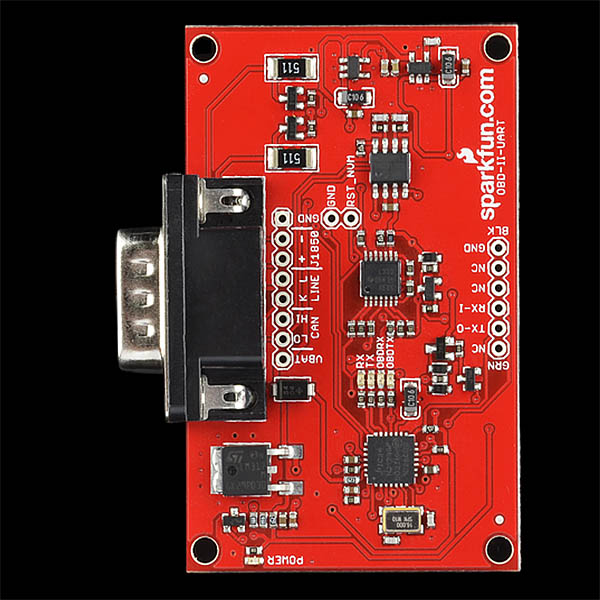

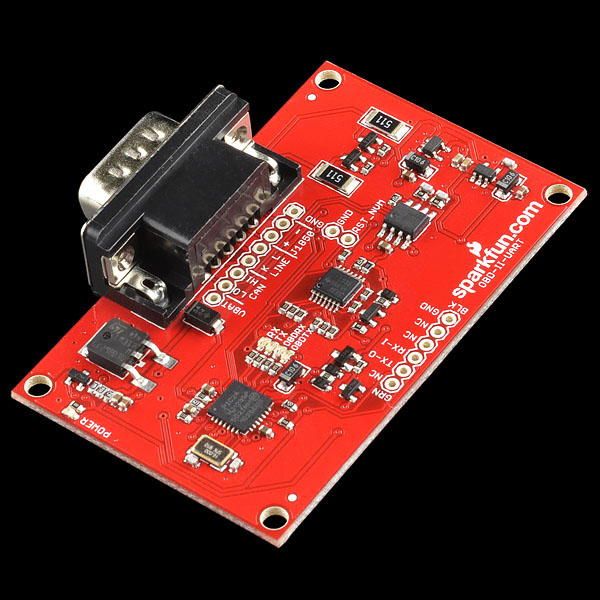

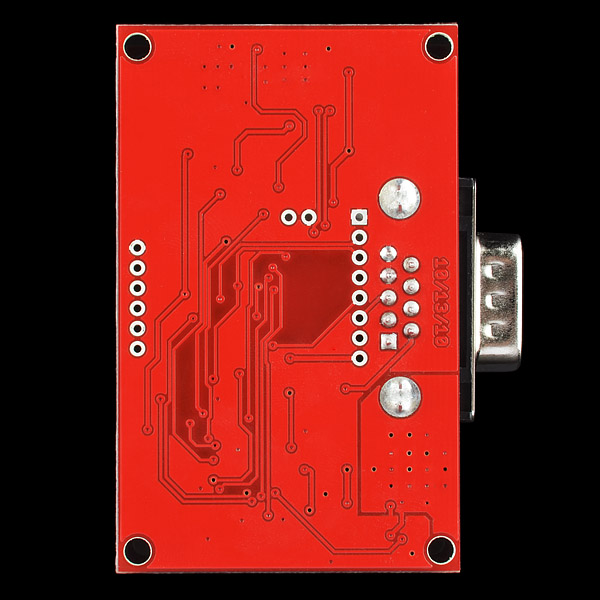

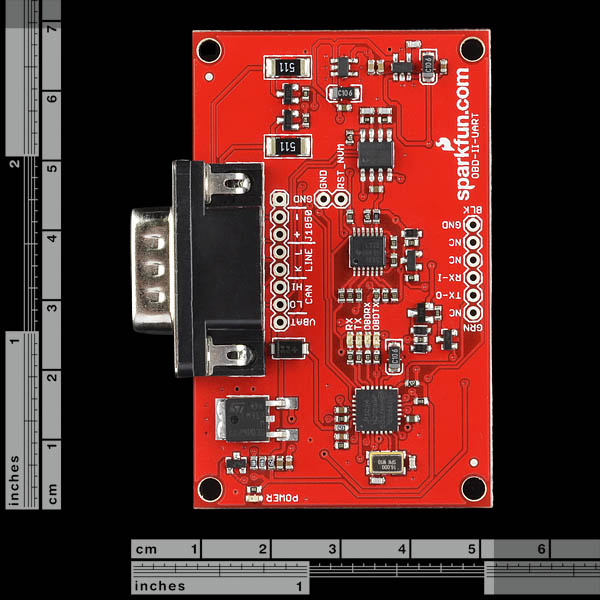

This board allows you to interface with your car’s OBD-II bus. It provides you a serial interface using the ELM327 command set and supports all major OBD-II standards such as CAN and JBUS. The board also provides a footprint which mates directly to our FTDI Basic or a Bluetooth Mate. The DB9 connector mates with our DB9 to OBD-II cable listed below.

On-Board Diagnostics, Second Generation (OBD-II) is a set of standards for implementing a computer based system to control emissions from vehicles. It was first introduced in the United States in 1994, and became a requirement on all 1996 and newer US vehicles. Other countries, including Canada, parts of the European Union, Japan, Australia, and Brazil adopted similar legislation. A large portion of the modern vehicle fleet supports OBD-II or one of its regional flavors.

Among other things, OBD-II requires that each compliant vehicle be equipped with a standard diagnostic connector (DLC) and describes a standard way of communicating with the vehicle�s computer, also known as the ECU (Electronic Control Unit). A wealth of information can be obtained by tapping into the OBD bus, including the status of the malfunction indicator light (MIL), diagnostic trouble codes (DTCs), inspection and maintenance (I/M) information, freeze frames, VIN, hundreds of real-time parameters, and more.

STN1110 is an OBD to UART interpreter that can be used to convert messages between any of the OBD-II protocols currently in use, and UART. It is fully compatible with the de facto industry standard ELM327 command set. Based on a 16-bit processor core, the STN1110 offers more features and better performance than any other ELM327 compatible IC.



Features:

  • Fully compatible with the ELM327 AT command set.
  • Extended ST command set.
  • UART interface (baud rates from 38 bps to 10 Mbps).
  • Secure bootloader for easy firmware updates.
  • Support for all legislated OBD II protocols:
    • ISO 15765-4 (CAN).
    • ISO 14230-4 (Keyword Protocol 2000).
    • ISO 9141-2 (Asian, European, Chrysler vehicles).
    • SAE J1850 VPW (GM vehicles).
    • SAE J1850 PWM (Ford vehicles).
  • Support for non-legislated OBD protocols:
    • ISO 15765.
    • ISO 11898 (raw CAN).
  • Support for SAE J1939 OBD protocol.
  • Superior automatic protocol detection algorithm.
  • Large memory buffer.
  • Voltage input for battery monitoring.
