Xilinx Platform USB Download Cable for Virtex FPGA FPGA/CPLD JTAG SPI in-circuit Debugger
Kit para configuración y programación de dispositivos Xilinx tales como FPGA y relacionados. No requiere alimentación externa y provee de diferentes lógicas de operación (TTL, LVCMOS, etc). Provee velocidades de transferencia de hasta 24 Mb/s.
COD: HTHR0142
Peso: 0.090 Kg
Disponibilidad: Sin Stock
ARS 69737.00
El producto no está disponible para la venta en este momento
Características
Product description:

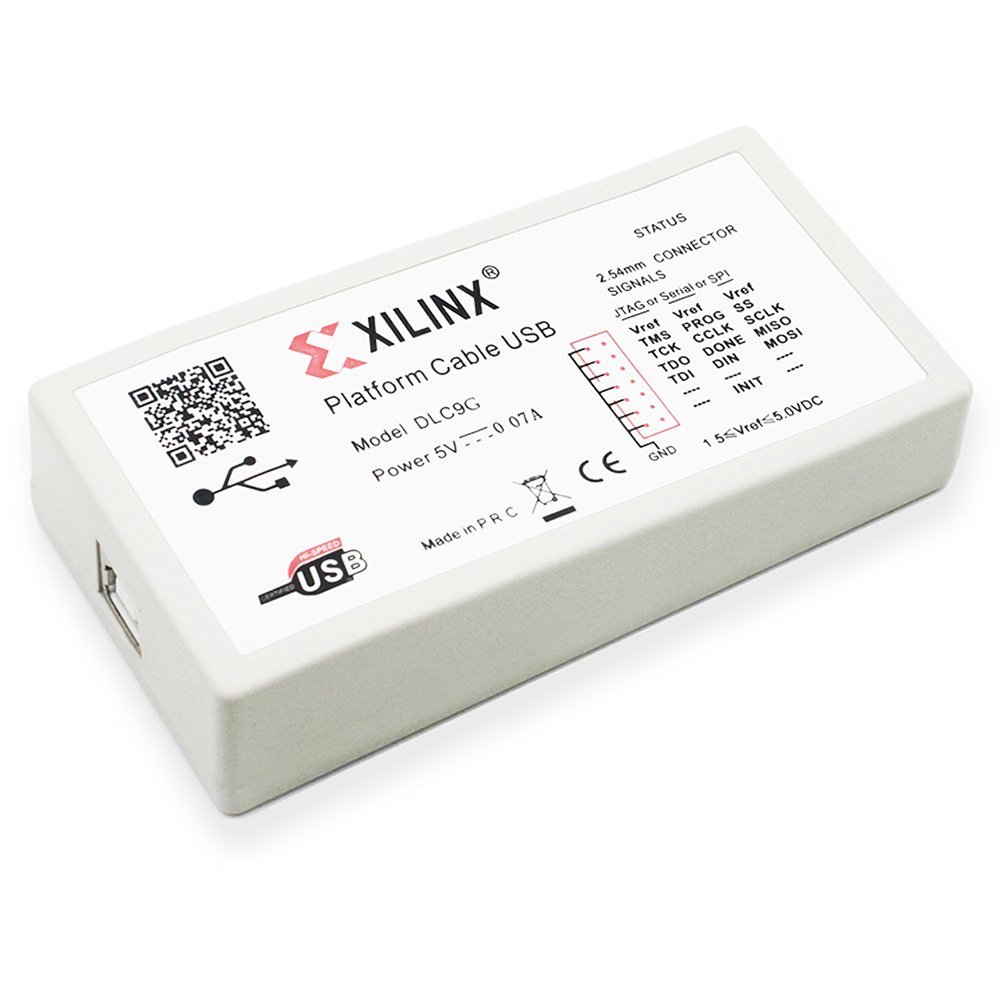

The Platform Cable USB ,a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.It derives all operating power from the hub port controller. No external power supply is required. A sustained slave-serial FPGA configuration transfer rate of 24 Mb/s is possible in a Hi-Speed USB environment.
Supported Software:
o Xilinx ISE 8 to ISE 14.7 and up-to-date ISE software;
o Xilinx Vivado;
o IMPACT;
o ChipScope;
o Microblaze embedded processor debugging.
Supported Devices:
o All Xilinx devices, FPGA and PROM/CPLD:
o All Virtex-FPGA families;
o All Spartan-FPGA families;
o XC9500 / XC9500XL / XC9500XV CPLDs;
o CoolRunner™XPLA3 / CoolRunner-II CPLDs;
o XC18V00 ISP PROMs;
o Platform Flash XCF00S/XCF00P/XL PROMs;
o XC4000 series FPGAs ;
o Fresh Xilinx devices including V7, Z7 etc.

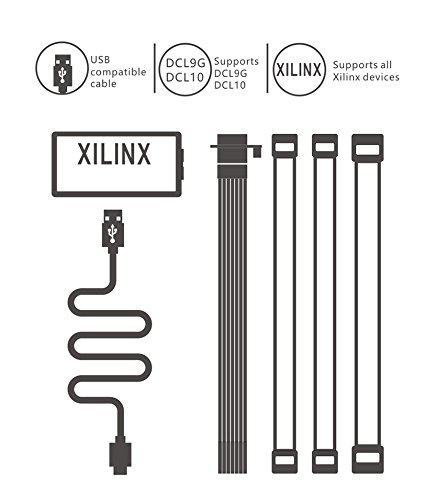

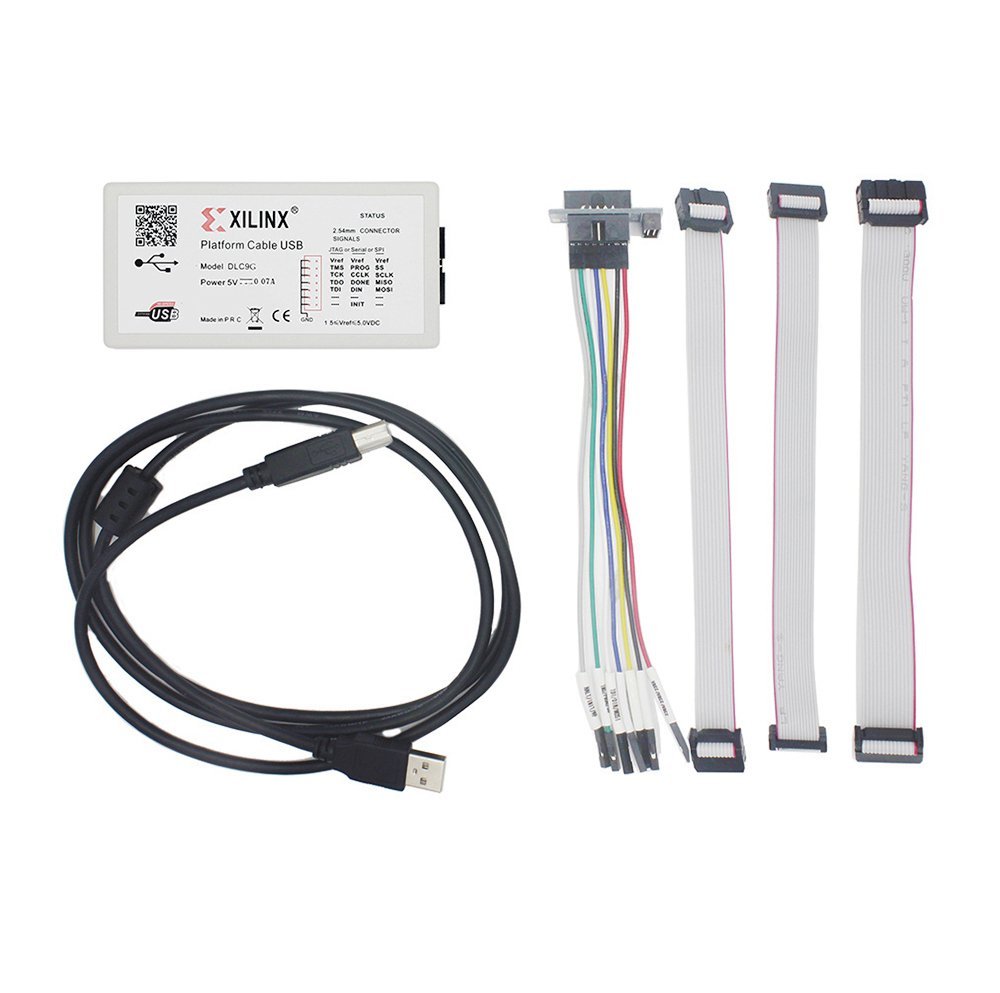

Package Contains:
1. Platform Cable USB × 1.

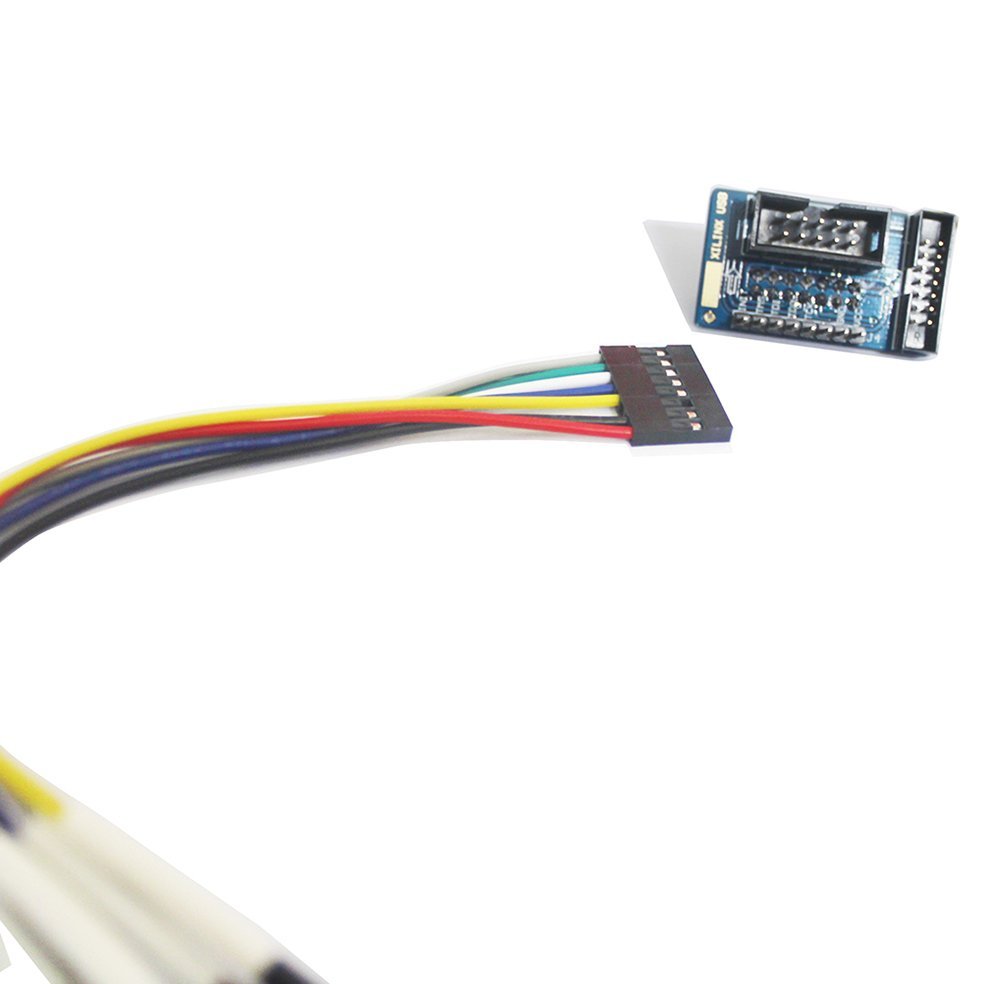

2. JTAG adapter × 1.
3. USB 2.0 cable, 1.5 meter length × 1.
4. 8-pin to 7-pin separated robin cable × 1.
5. 14-pin (2.5mm pitch) JTAG flat cable × 1.
6. 14-pin (2mm pitch) JTAG flat cable × 1.
7. 10-pin (2.5mm pitch) JTAG flat cable × 1.
