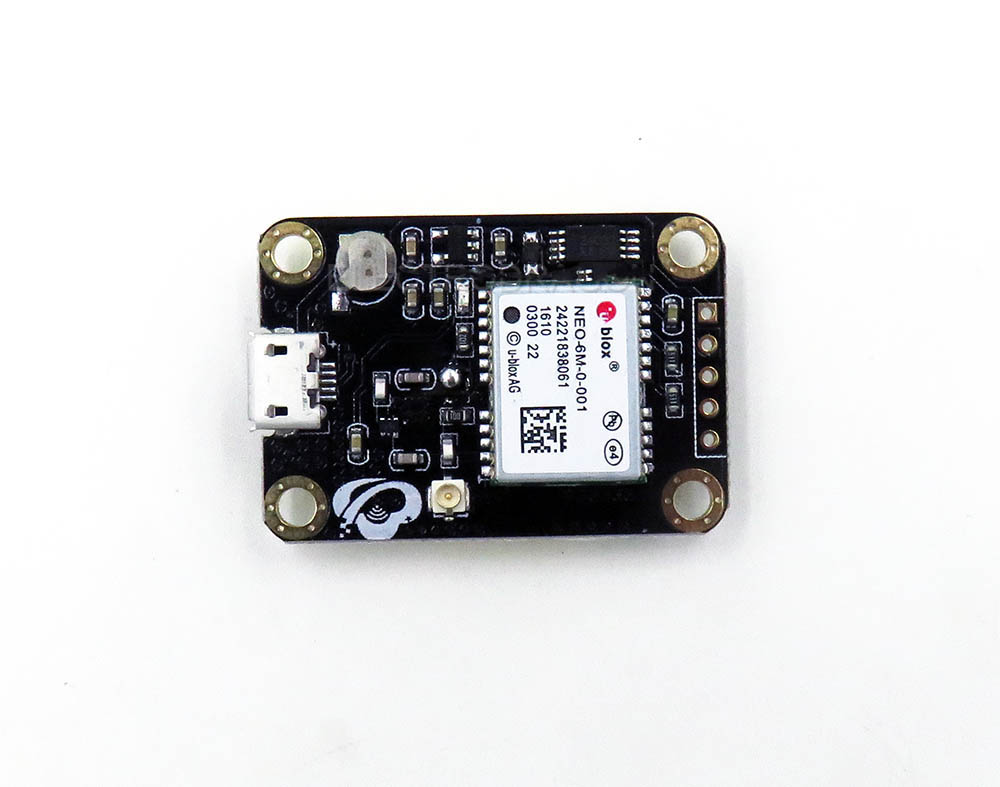

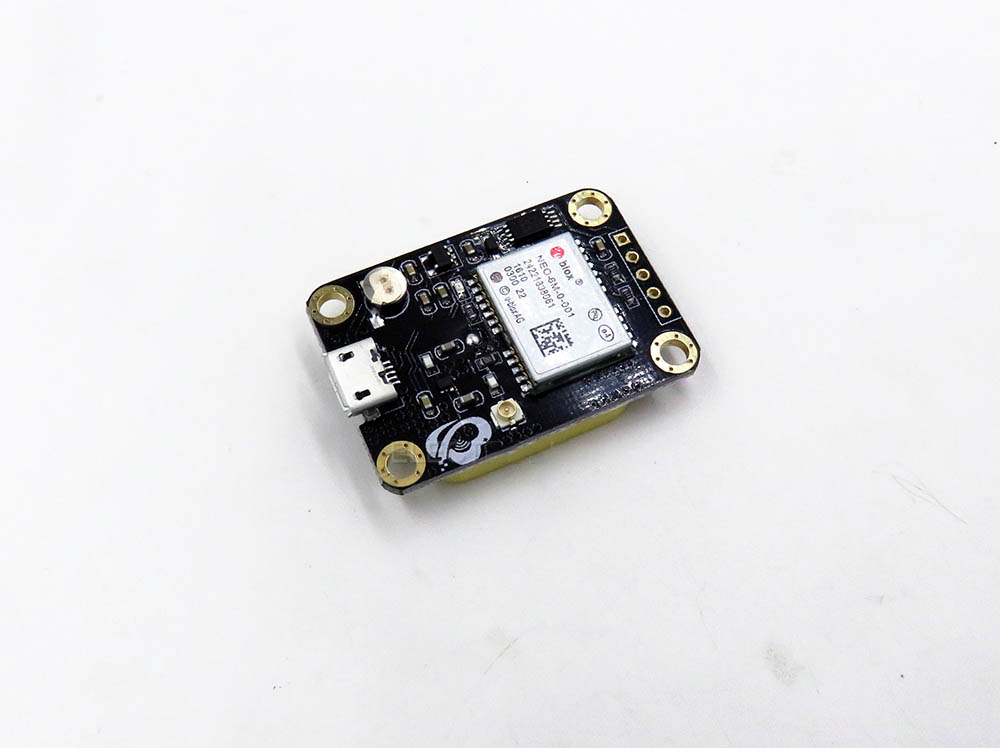

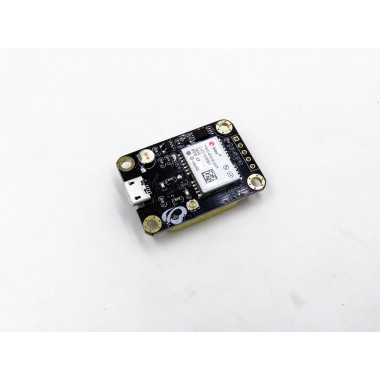

NEO-6M GPS Module R2

NEO-6M GPS Module R2

Módulo GPS NEO-6M de gran sensibilidad, compacto y de bajo consumo. Donde los receptores GPS ordinarios no pueden localizar por ejemplo, en ambientes con vegetación densa, el NEO-6M posee posicionamiento de alta precisión. Producto ideal para aplicaciones como PDAs, monitoreo de vehículos, celulares, videocámaras, y otros tipos de sistemas de posicionamiento móviles. Para una información más detallada consulte la documentación debajo de la descripción.

COD: TRONGS1052

Peso: 0.040 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 20222.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • With a USB interface, you can directly use the phone data cable in the computer point of view positioning effect. USB direct connection to the computer, that is, with the host computer-owned serial port function, no external serial port module.

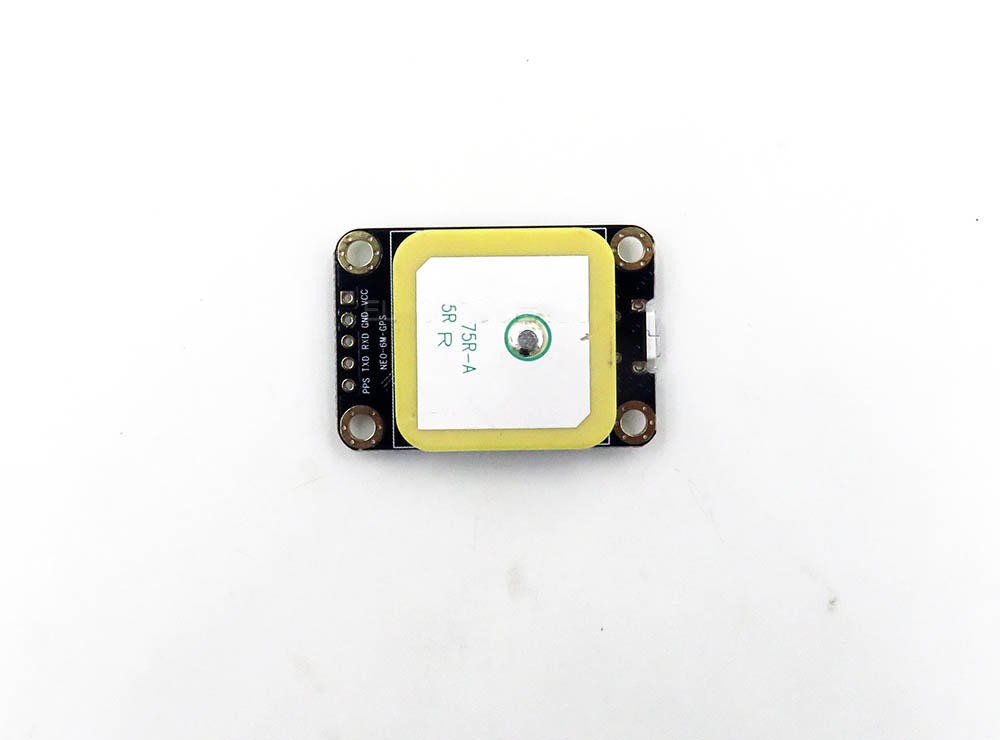

  • With an on-board passive ceramic antenna and passive antenna amplifier circuit, alone with better results.
  • With IPX interface, you can directly access IPX active antenna optionally.
  • Increase the MAX2659 signal amplification, search signal stronger.
  • The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data.
  • EEPROM data save for GPS record.





Features:

  • Input voltage: 3.3-5.5V.
  • Power consumption:
  • Normal mode: 50 mA.
  • Power saving mode: 30 mA.
  • Temperature:
      • Operating Temperature -40 ° C to + 85 ° C.
      • Storage temperature -55 ° C to + 100 ° C.
  • Pin descriptions and electrical connections:
      • VCC Power input pin 3.3-5.5V.
      • GND Power ground.
      • RXD Module serial port to receive the foot – then single-chip serial port TXD sent.
      • TXD Module serial send pin – then the microcontroller serial RXD reception.
      • PPS Clock pulse output pin, connected to the red LED lights.
      • On: Normal operation, but not positioned. Blinking: The positioning was successful.
      • Baud rate: The default baud rate for the module is 9600.



Documentation on this page.
