CT04 400Pcs Wire Copper Crimp Connector Insulated Cord Pin End Terminal

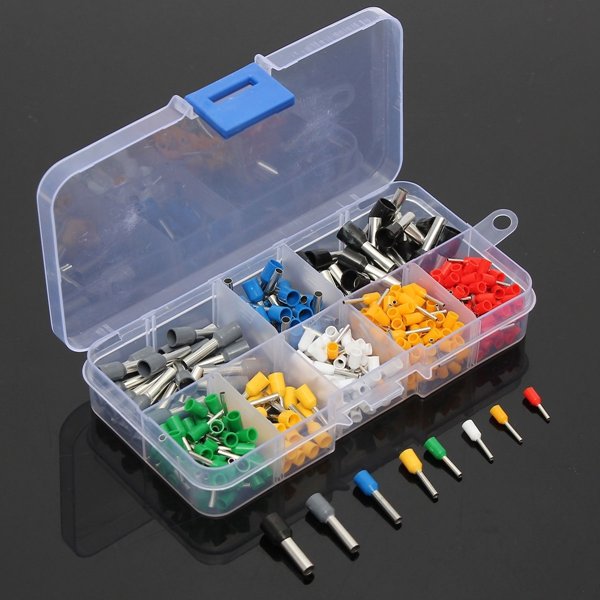

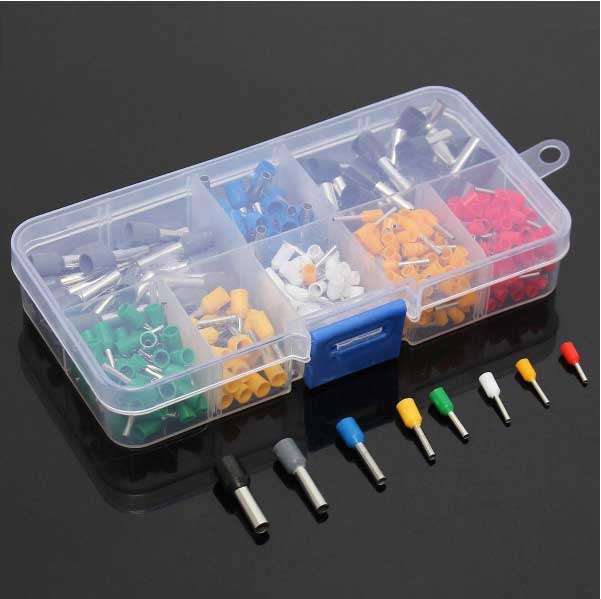

Kit de 400 punteras con aislamiento de tipo plástico de diferentes diámetros y longitudes). Incluye un estuche plástico organizador. Ideal para instalaciones en tableros eléctricos y armado de equipos electrónicos.
COD: HTHS0198
Peso: 0.070 Kg
Disponibilidad: En Stock
ARS 16762.00
El producto no está disponible para la venta en este momento
Características
Specifications:
1. Brand: Excellway®.
2. Model: CT04.
3. Type: Cold terminals.
4. Quantity: 400PCS.
5. Model: E0506,E0508,E7508,E1008,E1510,E2512,E4012,E6012.
Features:
1.Convenient and practical .
2.Durable and easy to install.
3.Many models which can meet your different demand.
4.Impact resistance, corrosion resistance and oil resistance .

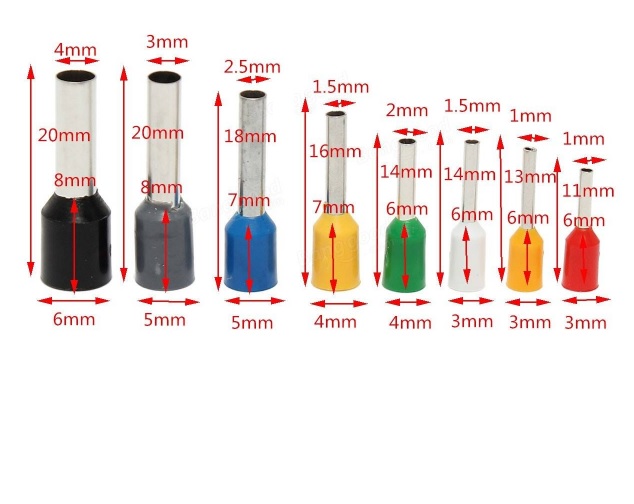

Drawing :
| 400 Wire Copper Crimp Connector Insulated Cord Pin End Terminal AWG 22 to 10 | ||||||||
|
A.W.G. MM² |
MODEL | QTY | Size(mm) | |||||
| F | L | W | B | D | C | |||
|
22 A.W.G. 0.5MM² |
E0506 | 100Pcs | 6.0 | 11.0 |
3.0 |
6.0 |
1.3 |
1.0 |
| E0508 | 100Pcs | 8.0 | 13.0 | |||||
| 20 A.W.G. 0.75MM² | E7508 | 50Pcs | 8.0 | 14.0 | 3.0 | 6.0 | 1.5 | 1.2 |
| 18 A.W.G. 1.00MM² | E1008 | 50Pcs | 8.0 | 14.0 | 4.0 | 6.0 | 2.0 | 1.5 |
| 16 A.W.G. 1.50MM² | E1510 | 25Pcs | 9.0 | 16.0 | 4.0 | 7.0 | 2.0 | 1.5 |
| 14 A.W.G. 2.50MM² | E2512 | 25Pcs | 11.0 | 18.0 | 5.0 | 7.0 | 2.5 | 2.3 |
| 12 A.W.G. 4.00MM² | E4012 | 25Pcs | 12.0 | 20.0 | 5.0 | 8.0 | 3.0 | 2.8 |
| 10 A.W.G. 6.00MM² | E6012 | 25Pcs | 12.0 | 20.0 | 6.0 | 8.0 | 4.0 | 3.5 |
Package included:
400 x Excellway CT04 Insulated Cord Pins.
