Productos

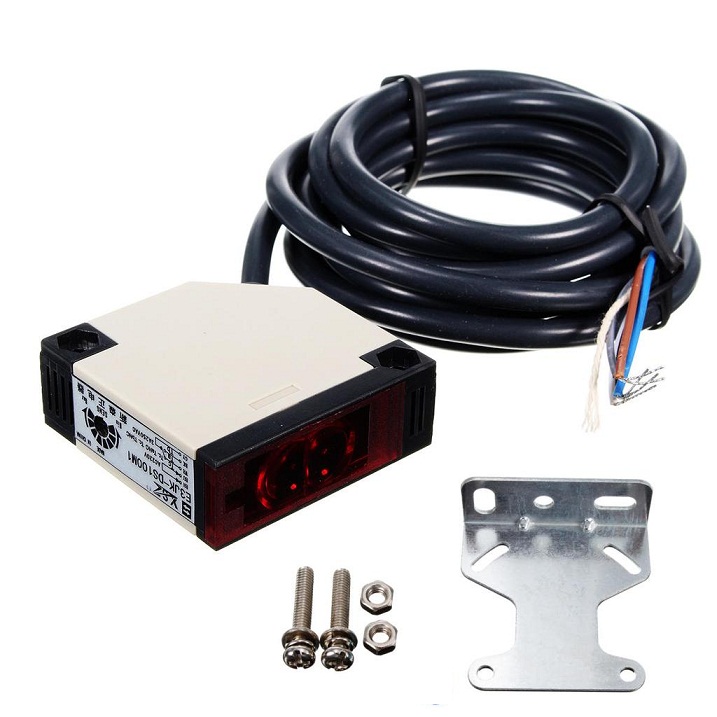

Photo Electric Switch Diffuse Reflection Type E3JK-DS30M1 30CM Sensor DC24V
Módulo de alta precisión para detección de objetos, de tipo óptico. Utiliza la tecnología de reflexión difusa lo que permite detectar la superficie del objeto sin necesidad de reflectores. Posee un alcance de detección de hasta 30 cm. Resistente a interferencias. Se alimenta con 24V.
COD: ESEP07085S
Peso: 0.150 Kg
Disponibilidad: En Stock
ARS 26733.00
El producto no está disponible para la venta en este momento
Características
Description:
This diffuse reflection photoelectric switch works through reflection of detection object on light beam, and then it can detect whether there is an object or not. The state of the object can be detected rapidly without touch and damage, and the detection range can be sensitively adjusted.
It can be used on security system to detect objects or person, also used for counting and piecework on industry.
Features:
- Small size and multi-function.
- Fast response and high precision.
- Strong resistance to light, electricity and magnetic interference.
Specifications:
- Detection distance: 30cm.
- Detection target: transparent / opaque object.
- Response time: 30ms.
- Turn on delay: 1.5ms.
- Light source: infrared light(660nm).
- Voltage: AC220V/DC24V (optional).
- Power current: below 3A.
- Control output: below 2A (contact life).
Package list:
- Photo Electric Switch Diffuse Reflection Type E3JK-DS30M1 30CM Sensor DC24V x 1.
Hoja de Datos (1122 Kb)
