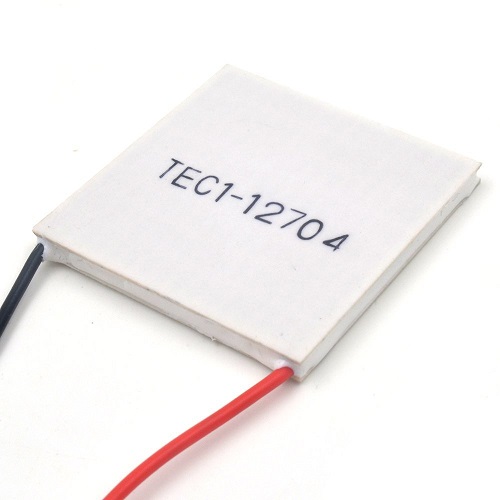

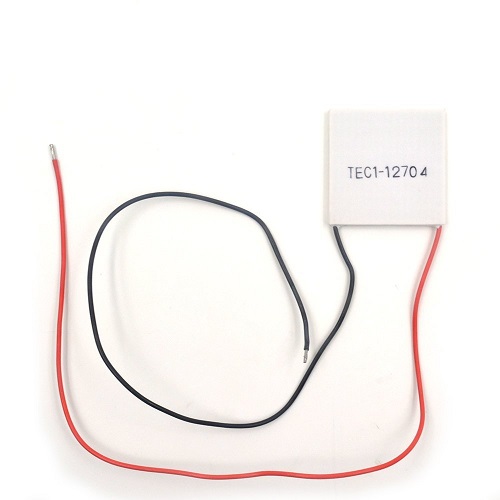

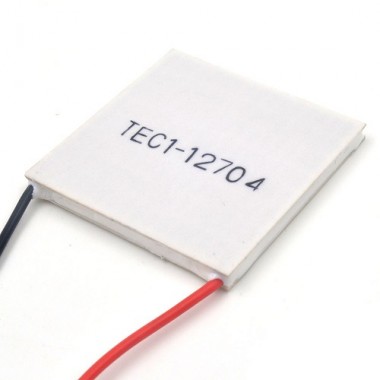

TEC1-12704 40x40 12V4A

TEC1-12704 40*40 12V4A

Enfriador termoeléctrico TEC1-12704 basado en el efecto Peltier, de 12V/4A.

COD: HTHS0047

Peso: 0.020 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 9684.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:



  • Cooling Peltier Plate Module.
  • Lightweight and durable Fast, dynamic response.
  • Can provide cooling below ambient temperature.
  • Enables reduced, low-noises operation of cooling fans, while providing greater cooling. power.Suitable for manufacture in small size.



Features:



TE MODULE PARAMETER



Type

Couples

Imax (A)

Umax (V)

Qcmax(w)

T =0

Tmax (°C)

Qc=0

Size

Mm




TEC1-12704

127

4

15.4

36

65

40*40*3.8





  • Chip Model: TEC1-12704.
  • Dimensions: 40 * 40 * 3.8mm.
  • Wire specifications: wire lead length of 100 ± 5mm of RV standard single head 5mm tinned.
  • Internal Resistance: 3.0 to 3.3Ω (ambient temperature 23 ± 1 ° C, 1kHZ of Ac test).
  • The maximum temperature difference: Tmax (Qc = 0) 60 °C above.
  • Operating current: Imax = 12 (rated voltage start).
  • Rated voltage: DC12V (Vmax: 15.5V).
  • Cooling power: Qcmax 24W.
  • Assembly pressure: 85N/cm2.
  • Working environment: temperature range -55 °C to 83 °C (too high ambient temperature will directly affect the cooling efficiency).
  • Packaging technology: around the standard 704 silicone rubber seal.
  • Packaging standards: foam boxes for packaging, storage conditions of ambient temperature -10 °C to 40 °C.
  • Storage conditions: -40 to 60 ° C.
  • Weight:20g.
