- Output wavelength: 445-450nm.
- Output power: 3000mW.
- Operating voltage: DC = 12V.
- Working current: I <3.5A.
- Host size: 65mm long * 33mm wide * 33mm high.
Productos
12v 3w high power 450NM laser module 3000mw
Módulo con láser de 3W de potencia, de longitud de onda igual a 450nm. Se alimenta con 12 V. Color del haz: Azul. ATENCION: NO SE DEBE MIRAR DIRECTAMENTE AL HAZ LASER, NI A SU REFLEJO! EXTREMADAMENTE PELIGROSO PARA LOS OJOS!
COD: HTHS0171
Peso: 0.400 Kg
Disponibilidad: Sin Stock
ARS 373369.00
El producto no está disponible para la venta en este momento
Características
ATENCION: NO SE DEBE MIRAR DIRECTAMENTE AL HAZ LASER, NI A SU REFLEJO! EXTREMADAMENTE PELIGROSO PARA LOS OJOS!
Product features:
Product description:

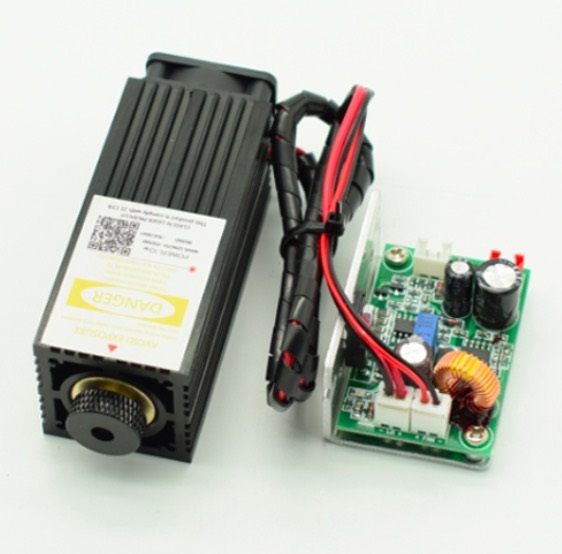

3W (NDB7A75) High Power 445/450nm 3000mw Blue Laser Dot Module 12V w/ TTL 0-20kHz & Long Tme Working
Features:

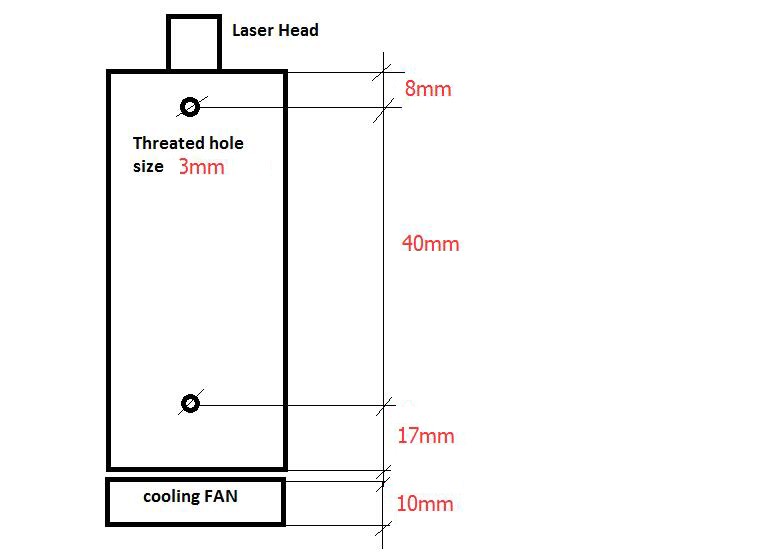

- Host size: 65mm long * 33mm wide * 33mm high.

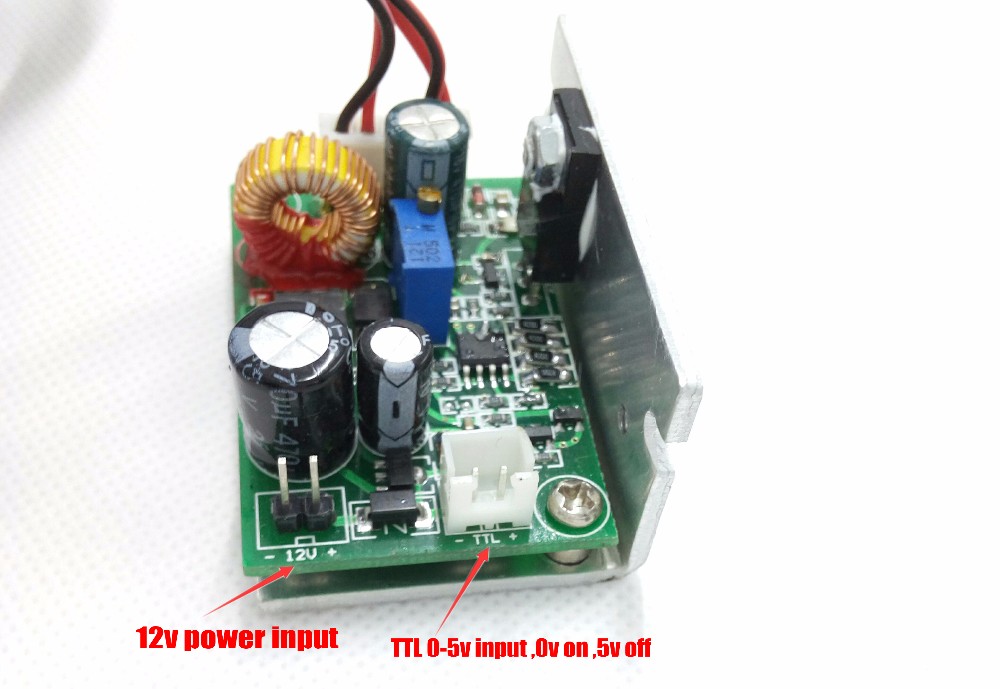

- Circuit size: length 47.5mm * width 31.5mm * high 16mm.
- Output wavelength: 445-450nm.
- Output power: 3000mW.
- Cooling: aluminum heat.
- Modulation frequency: can be modulated (0-20kHz).
- Working characteristics: continuous work.
- Surface treatment: black.
- Shell material: aluminum.
- Circuit control: constant current.
- Reverse polarity protection: with positive and negative polarity identification.
- Working voltage: DC = 12V.
- Working current: I <3.5A.
- Warm-up time: None.
- Start Settings: slow start 1 second.
- Operating temperature: -10 �?? ~ +40 �??.
- Storage temperature: -10 �?? ~ +40 �??.
- Structural features: laser tube + lens + cooling shell.
Special Note: input voltage is 12V, over-voltage will lead to instant damage to the circuit and the module.
Package:
1pc x 3W (NDB7A75) High Power 445/450nm Blue Laser Dot Module 12V w/ TTL 0-20kHz & Long Tme Working
