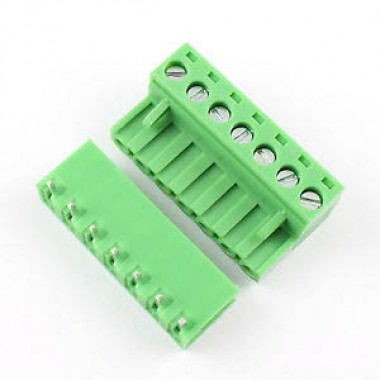

5.08mm Right Angle Screw Terminal block - 7 pin
Bornera enchufable de 7 terminales para montar en circuito impreso, con ángulo de 90 grados y paso 5.08mm (0.2").
COD: HTHR0627
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 2020.00
El producto no está disponible para la venta en este momento
Características
Features:
- 7Pins.
- Female.

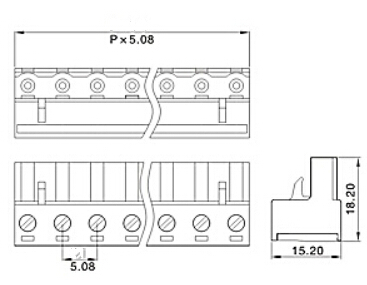

- 5.08mm Pitch.

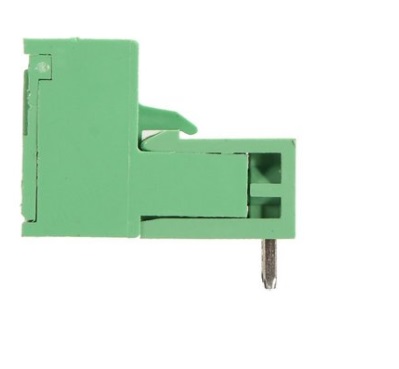

- Right Angle Bend.
Material:
- Screws: M2.5, Steel with Zinc-Plating.
- Spring Leaf: Bronze with Nickel-Plating.
- Contacts: Brass with Nickel-Plating.
- Plastic: PA66 UL94V-0.
Mechanical:
- Temperature: -40°c ~ 105°c.
- Transient Temperature: +250°c for 5 seconds.
Electrical:
- Rated Voltage: 300V.
- Rated Current: 15A.
- Contact Resistance: 20mΩ.
- Insulation Resistance: 5000MΩ 1000V.
- Withstand Voltage: AC2000V 1Min.
- Wire Diameter for it: 24-12AWG, 2.5mm2.
- Torsional Moment: 0.4N.m (3.6Ib.in).
- Stripping Length: 7-8mm.
