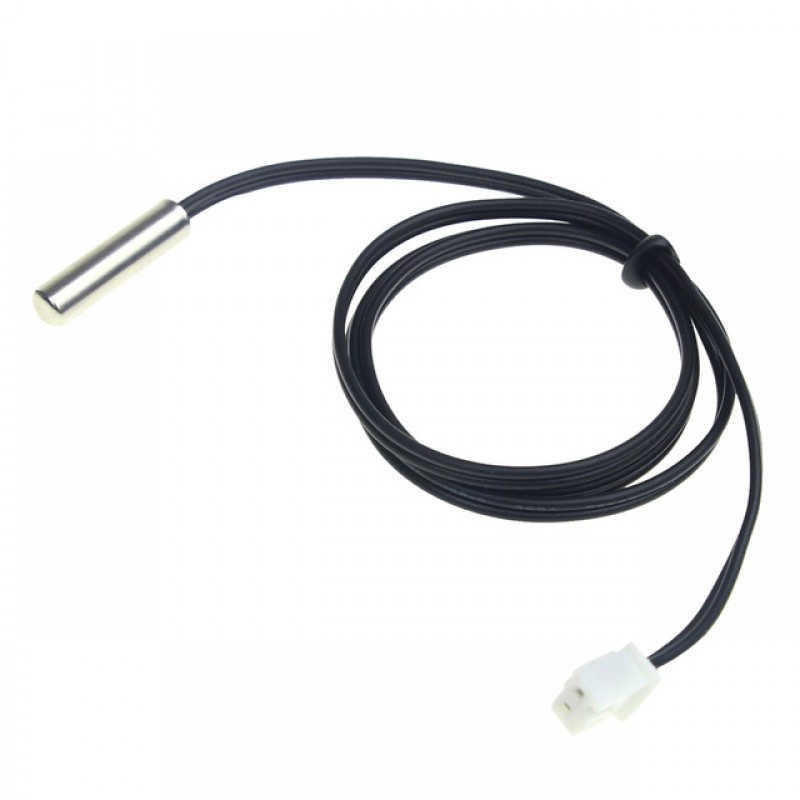

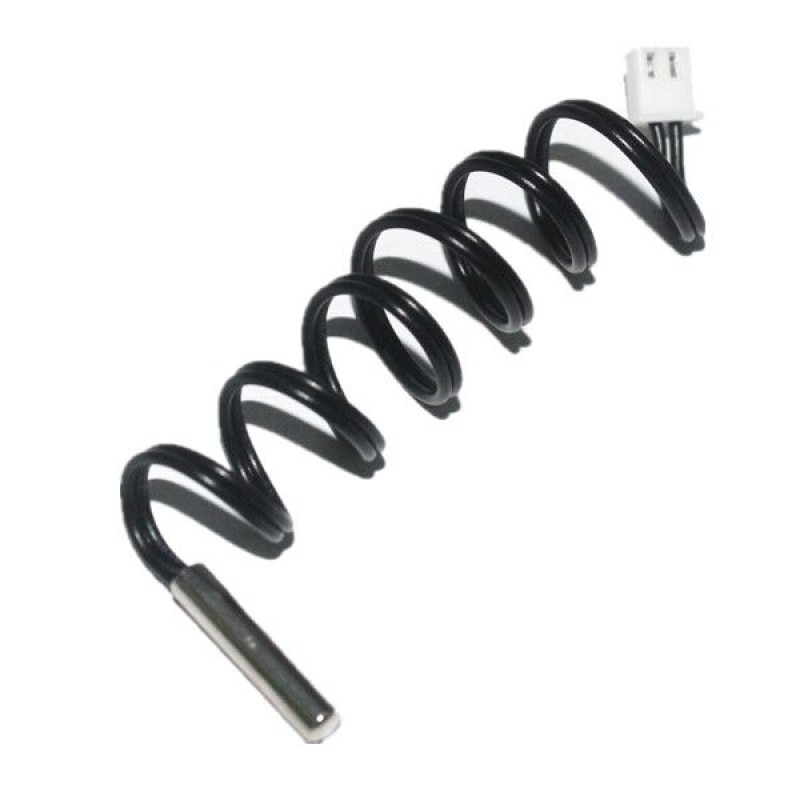

50cm NTC Thermistor Temperature Sensor 10K 1% 3950

50cm NTC Thermistor Temperature Sensor 10K 1% 3950

Sensor de temperatura de tipo NTC de 10k a 25ºC, encapsulado en acero inoxidable. Rango de temperatura admisible: -40 ℃ to +200 ℃. Posee un cable de longitud de 50 cm y conector hembra de 2 pines.

COD: HTHR0214-165A

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1617.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features :

  • High sensitivity, rapid response.
  • Compact structure, easy installation, good water resistance.
  • The use of wide temperature range, good stability, high reliability.
  • Can provide different R, B value of products, interchangeable, high precision.



Specification :

  • Type: Humidity Sensor.
  • Material: Mixture.
  • Material Crystal structure: Polycrystallinef.
  • Usage: Temperature Sensor.
  • Theory: Resistance Sensor.
  • Output: Analog Sensor.
  • 10K 1% accuracy: High temperature type.
  • Resistance accuracy: ± 1%, ± 2%, ± 3%.
  • The use of temperature range: -40ºC to +200ºC.
  • The maximum rated power: 45mW.
  • Thermal time constant: ≤3S (static air).
  • Resistance temperature coefficient: -2 to -5% / ºC.
  • Insulation performance: 500V.
  • DC test a single root insulation resistance: ≥ 100MΩ.
