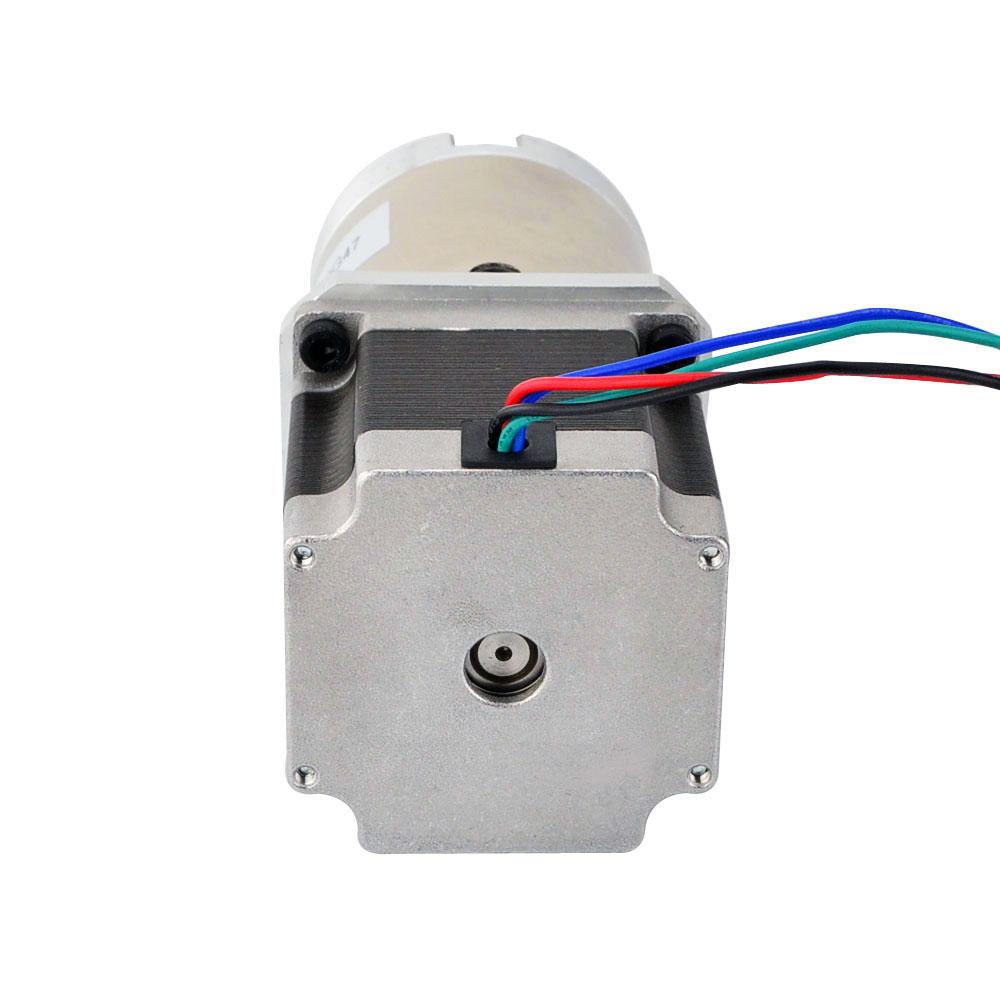

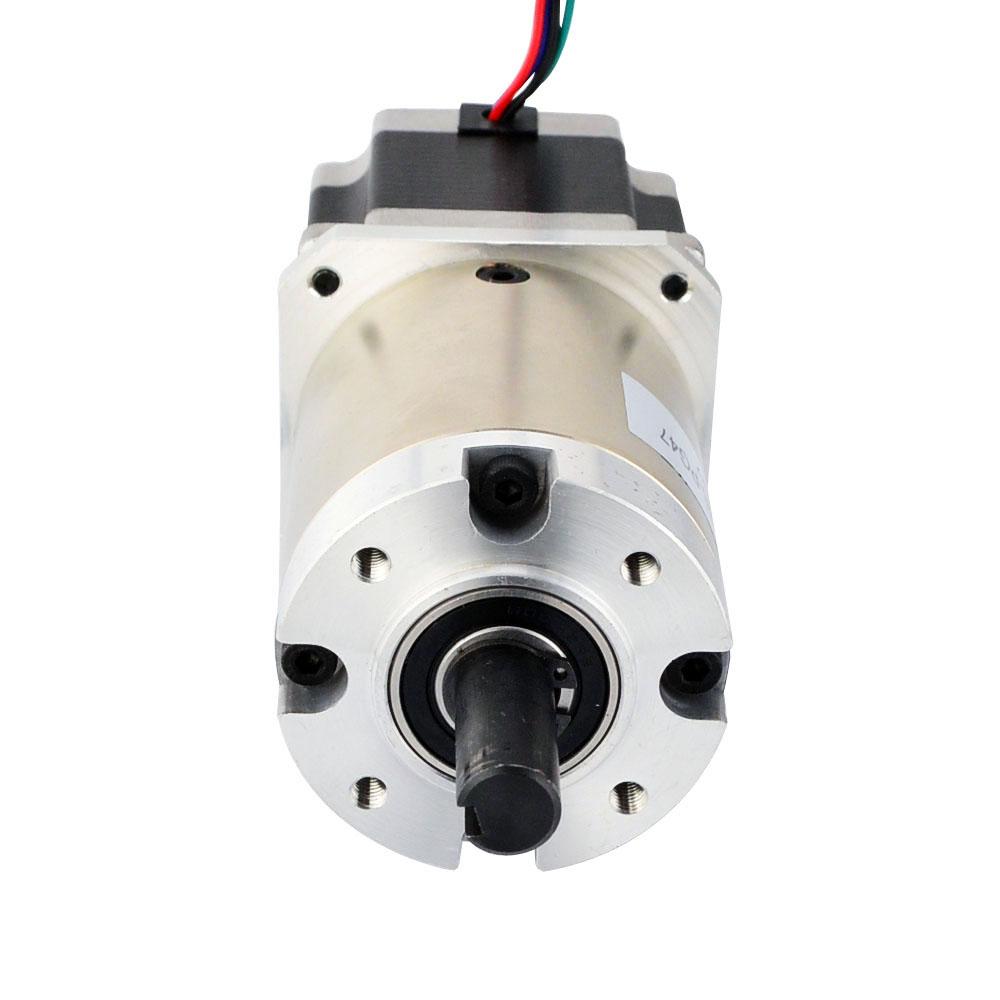

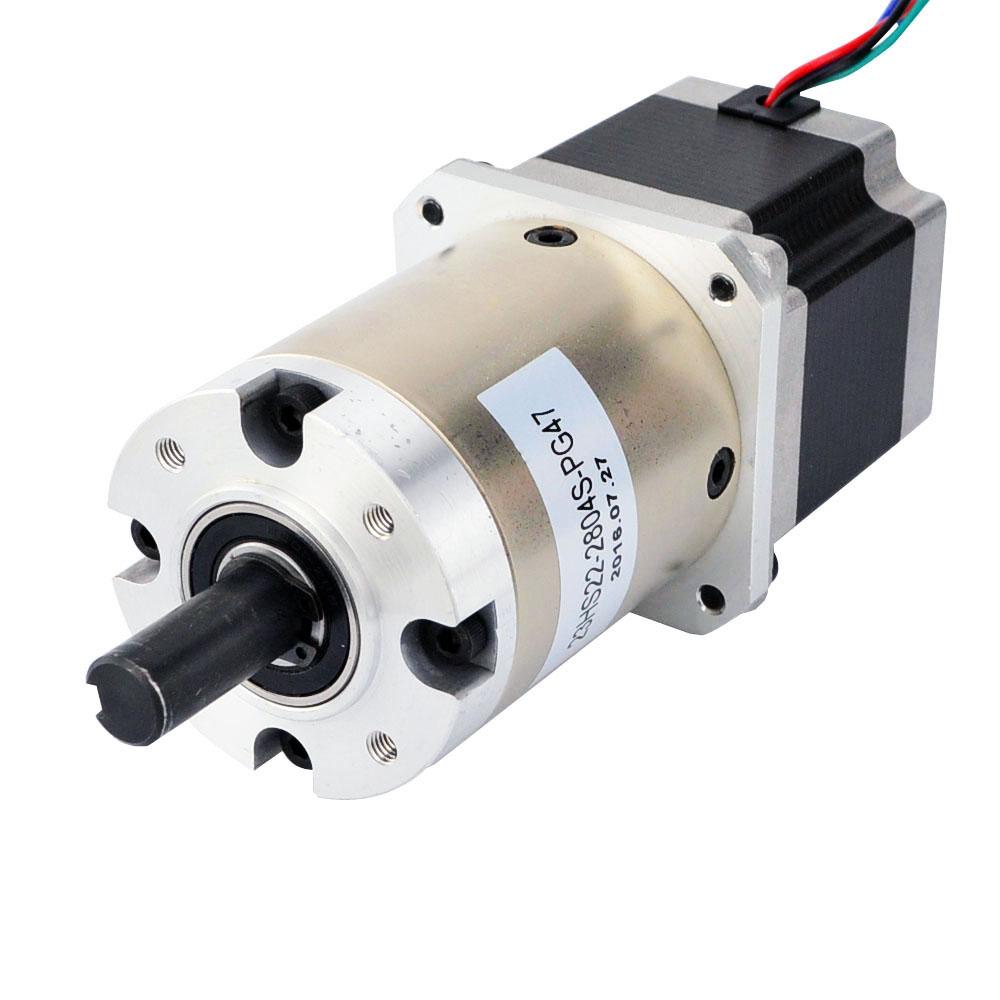

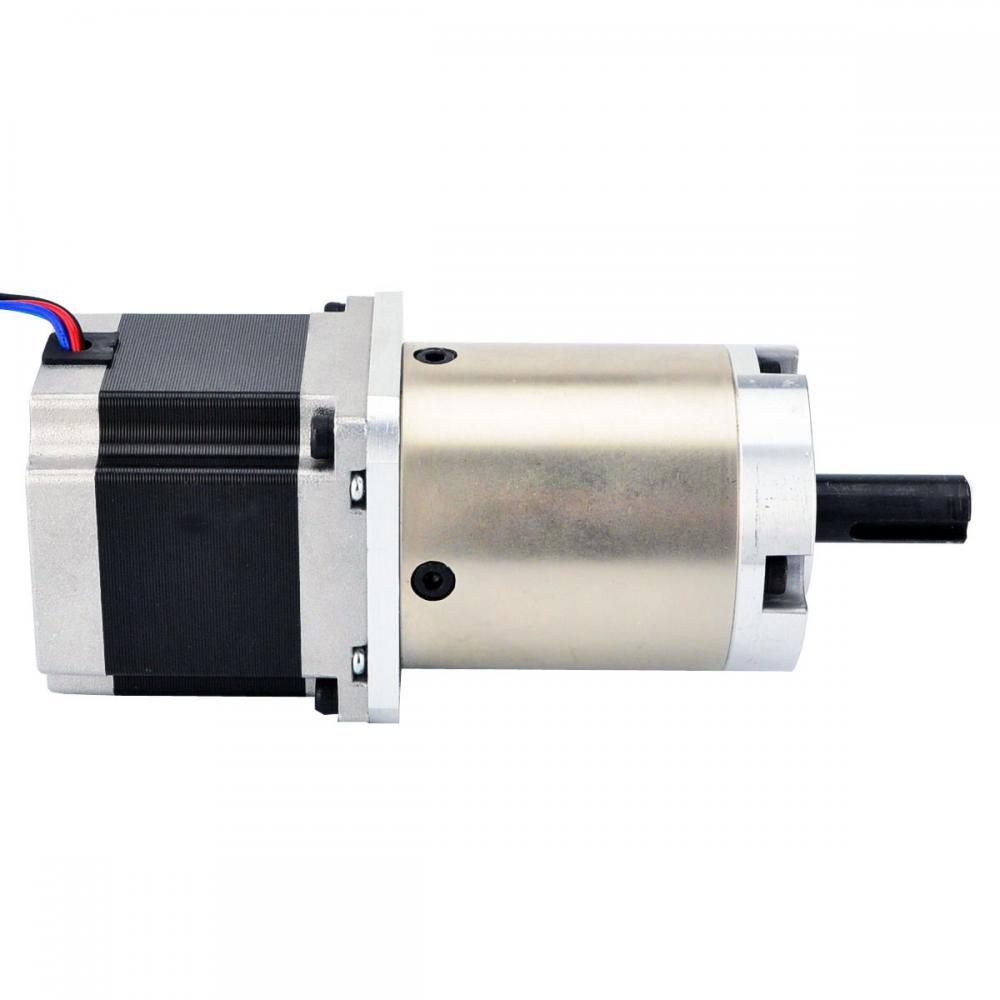

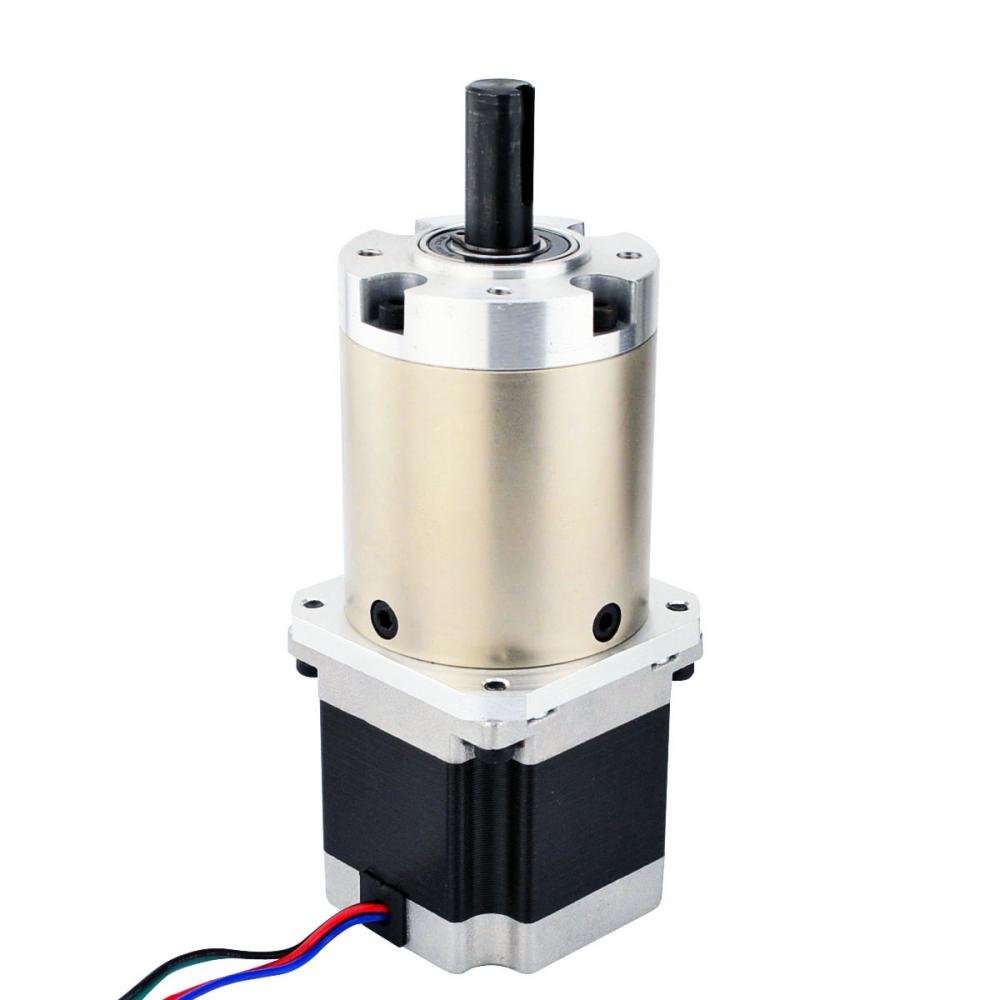

Nema 23 Stepper Motor Bipolar L56mm w/ Gear Ratio 47:1 Planetary Gearbox

Nema 23 Stepper Motor Bipolar L56mm w/ Gear Ratio 47:1 Planetary Gearbox

Motor paso a paso Nema 23 con cuerpo de 56 mm y corriente nominal de 2.8 A. Integra una caja de engranajes con una relación de transmisión de 46.656: 1. Es una buena solución para aplicaciones que tienen espacio limitado y necesitan baja velocidad y/o par elevado.

COD: 23HS22-2804S-PG47

Peso: 1.700 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 210846.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Electrical Specification:

  • Manufacturer Part Number: 23HS22-2804S-PG47.
  • Motor Type: Bipolar Stepper.
  • Step Angle: 0.039 deg.
  • Holding Torque without Gearbox: 1.25Nm (177.01oz.in).
  • Rated Current/phase: 2.8A.
  • Phase Resistance: 0.9ohms.
  • Voltage: 2.6V.
  • Inductance: 2.5mH ± 20%(1KHz).

Gearbox Specifications:

  • Gearbox Type: Planetary.
  • Gear Ratio: 46.656: 1.
  • Efficiency: 73%.
  • Backlash at No-load: <=1.5 deg.
  • Max.Permissible Torque: 40Nm (5664oz.in).
  • Moment Permissible Torque: 60Nm(8497oz.in).
  • Shaft Maximum Axial Load: 100N.
  • Shaft Maximum Radial Load: 200N.

Physical Specifications:

  • Frame Size: 60 x 60mm.
  • Motor Length: 56mm.
  • Gearbox Length: 72mm.
  • Shaft Diameter: Φ12mm.
  • Shaft Length: 30mm.
  • Key-way length: 20mm.
  • Key-way width: 4mm.
  • Number of Leads: 4.
  • Lead Length: 500mm.
  • Weight: 1.7kg.

Connection:

A+
A-
B+
B-
Black
Green
Red
Blue



Gearbox Specification

Motor Specification

Physical Specification

Backlash at No-load(Max.°) 1.5
Efficiency 73%
Gear Ratio 46.656:1
Gearbox Length(mm) 72
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 4000
Max. Permissible Torque(oz.in) 5664.5
Moment Permissible Torque(Ncm) 6000
Moment Permissible Torque(oz.in) 8496.7
Shaft Maximum Axial Load(N) 100
Shaft Maximum Radial Load(N) 200
Inductance(mH) 2.5
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current(A) 2.8
Shaft Diameter(mm) 12
Shaft Length(mm) 30
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 125
Holding Torque w/o Gearbox(oz.in) 177
Motor Length(mm) 56
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-Way
Weight(g) 1600
