SX1278 LoRa ATmega328P RFM98 915MHz Radio Node Module

SX1278 LoRa ATmega328P RFM98 915MHz Radio Node Module

Módulo Lora de 915 MHz basado en el Atmega328P (Arduino pro mini 8Mhz 3.3V bootloader) y en el RFM98. Dispone de 2 puertos I2C, 2 I/O Digitales, y dos canales Analógicos. Puede ser alimentado con una batería LIPO de 3.7V, o bien de forma externa con tensiones de 3.7v a 12v). Posee interfaz SPI. Incluye antena. Compatible con Arduino.

COD: EWIR04034N915

Peso: 0.040 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 56588.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

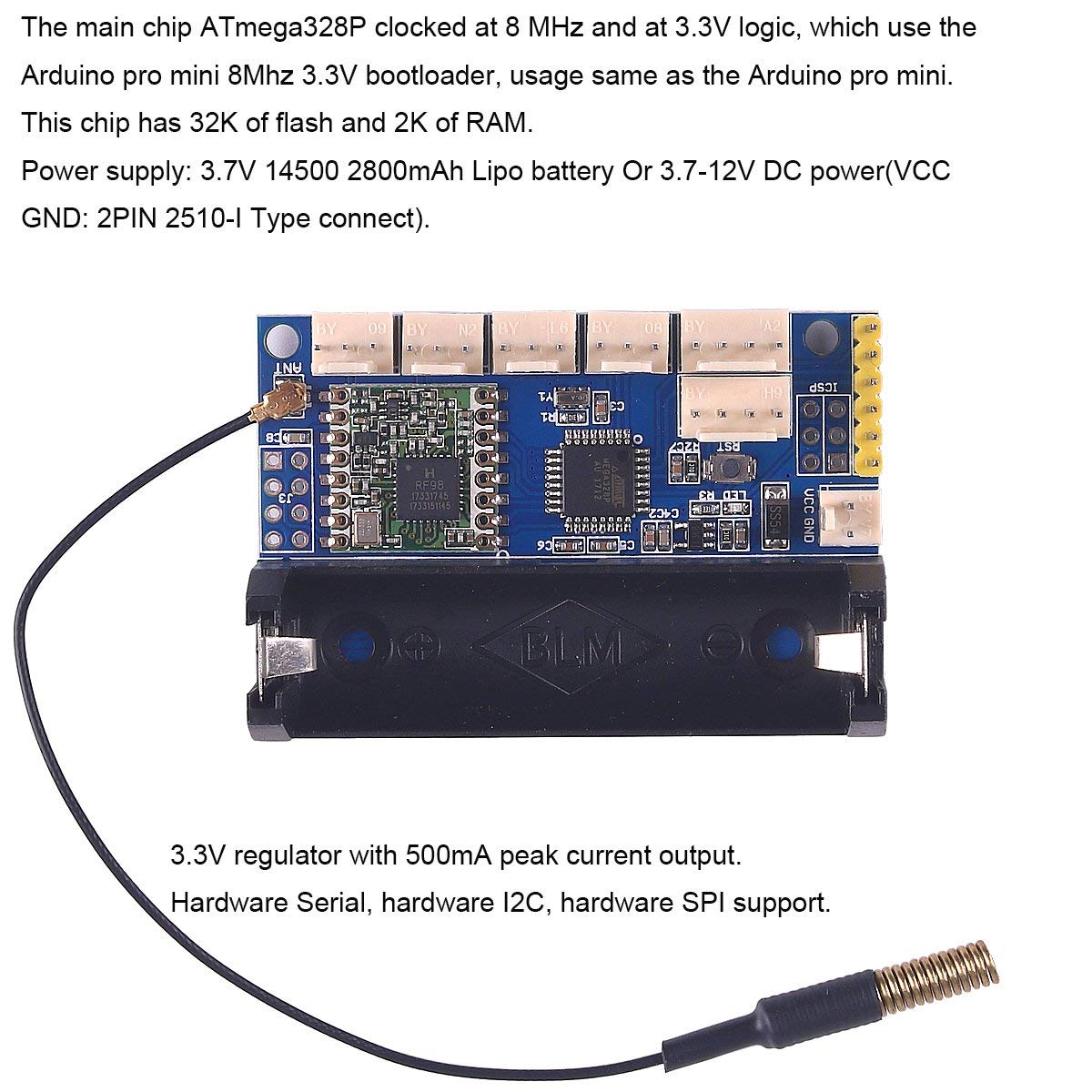

This LoRa radio module is based on the Atmega328P and RFM98 915MHz radio module. The main chip Atmega328P clocked at 8 MHZ and at 3.3V logic. It uses the Arduino pro mini 8Mhz 3.3V bootloader, usage same as the Arduino pro mini. Besides that, it also has 32K of flash and 2K of RAM.

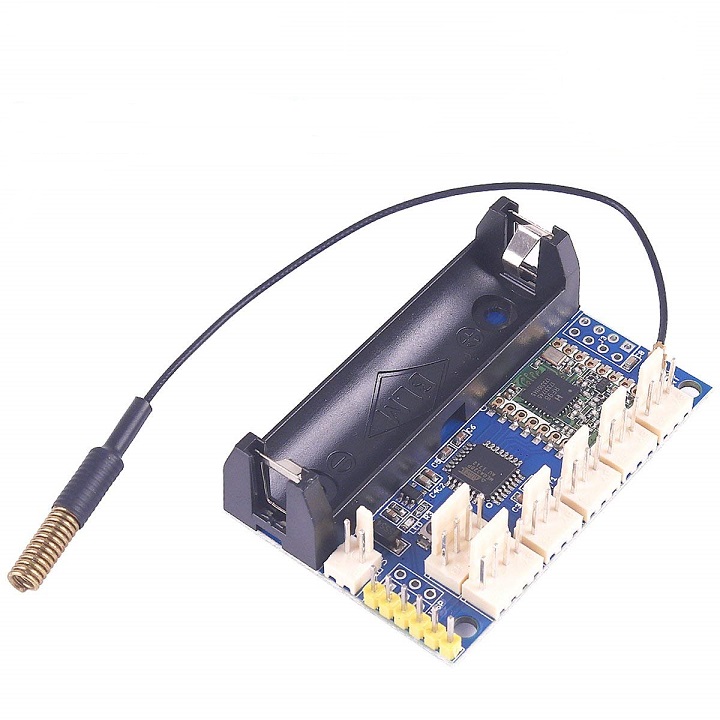

There is on-board 3.7v 14500 battery holder, that makes you use anywhere you like. There are two IIC ports, two analog ports (A0, A1) and two digital ports (D3, D4) on this LoRa radio node.

This LoRa radio node uses the extra space left over to add an RFM9x LoRa 433 MHz or RFM95 LoRa 915 Mhz radio module. They do work quite well for small data packet transmission when you need more range than 2.4 GHz (BT, BLE, WiFi, ZigBee).



Features:

  • SX1278 LoRa® based module with SPI interface.
  • Packet radio with ready-to-go Arduino libraries.

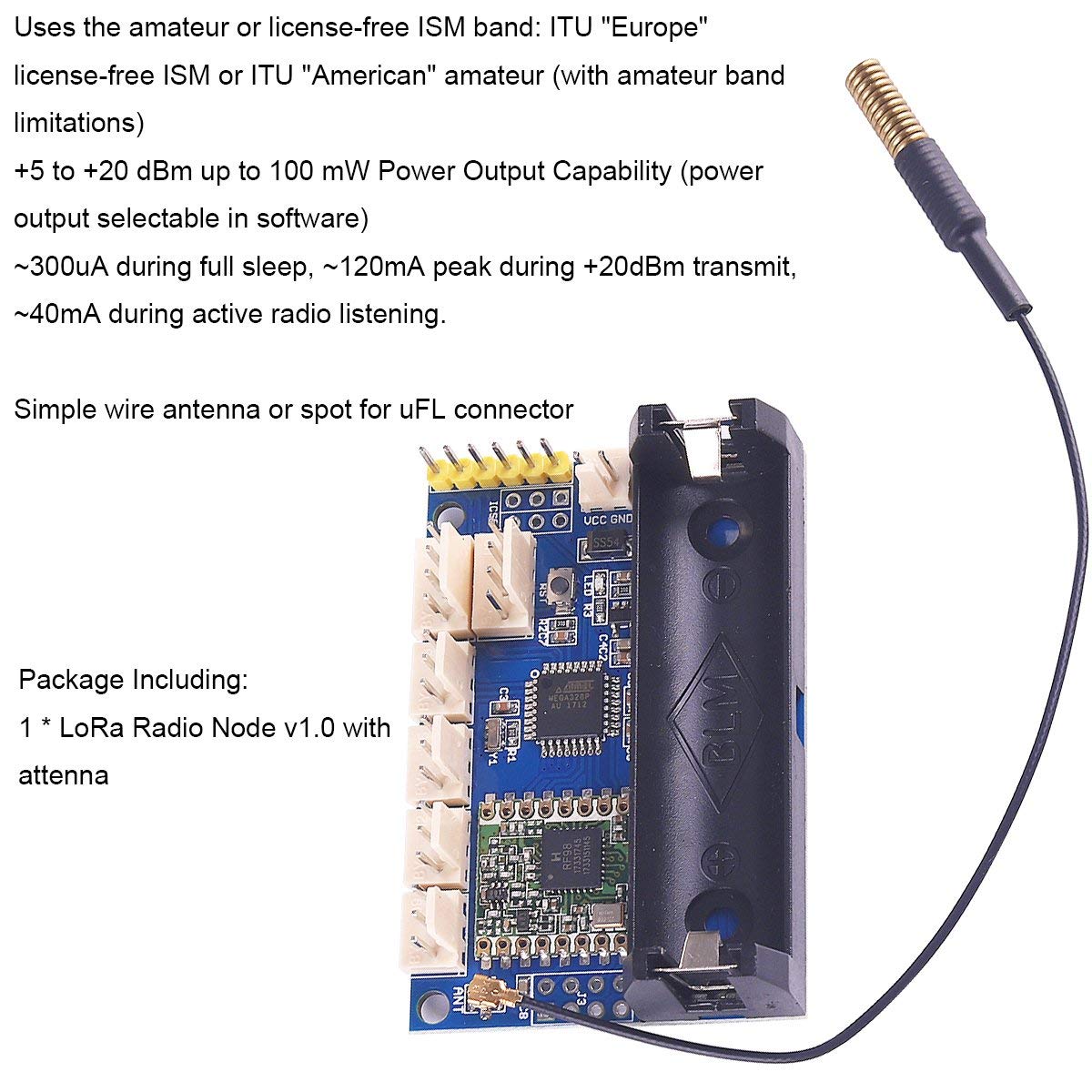

  • Uses the amateur or license-free ISM band: ITU "Europe" license-free ISM or ITU "American" amateur (with amateur band limitations).
  • +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software).
  • ~300uA during full sleep, ~120mA peak during +20dBm transmit, ~40mA during active radio listening.
  • Spot for uFL connector.

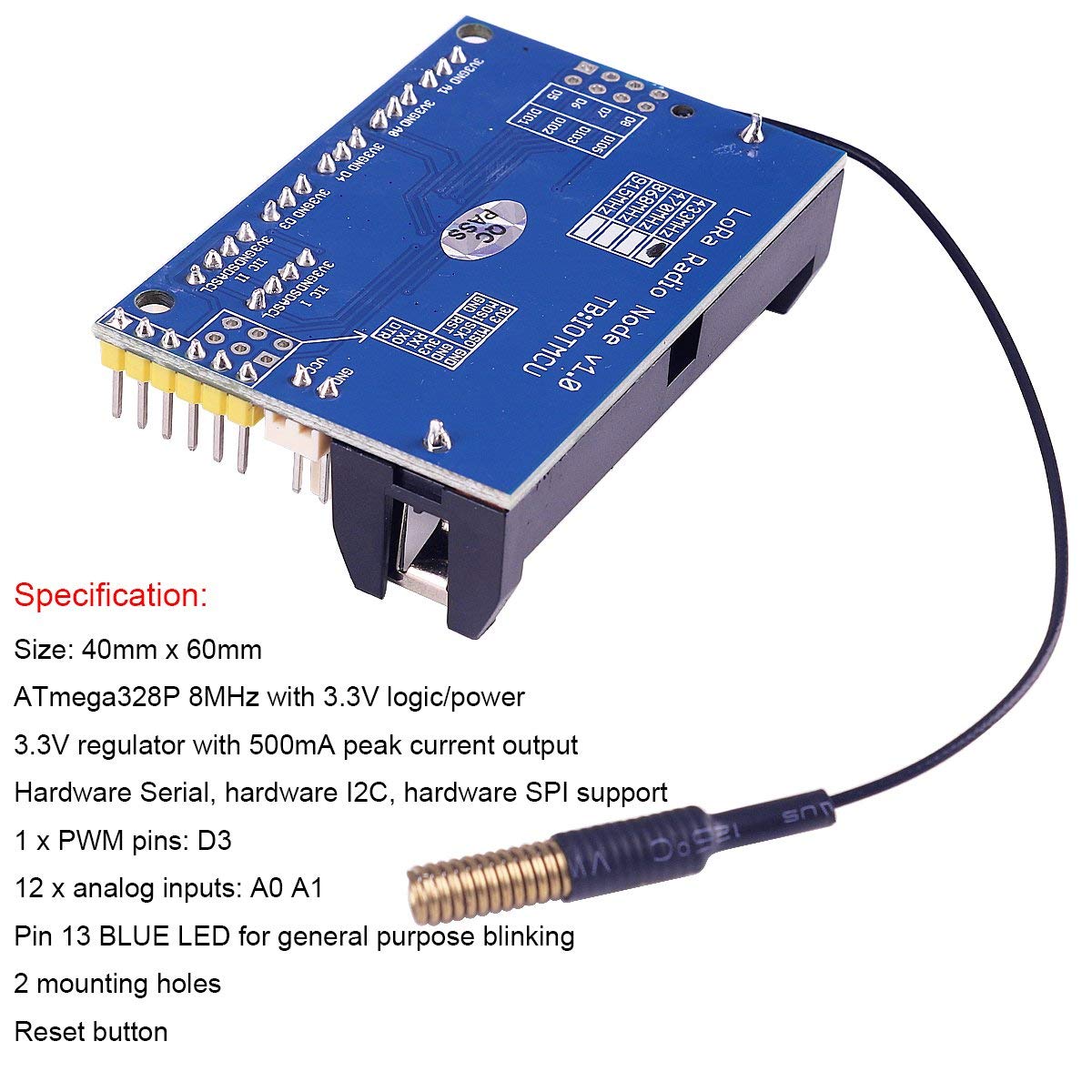

Specifications:

  • Power supply: 3.7V 14500 Lipo battery Or 3.7-12V DC power (VCC GND: 2PIN 2510-I Type connect).
  • ATmega328P @ 8MHz with 3.3V logic/power.
  • 3.3V regulator with 500mA peak current output.
  • Hardware Serial, hardware I2C, hardware SPI support.
  • Pin #13 BLUE LED for general purpose blinking.
  • 2 x analog inputs: A0 A1.
  • 2 mounting holes.
  • 1 x PWM pins: D3.
  • Size: 40mm x 60mm.
  • Reset button.



Links:

https://github.com/IOT-MCU

https://github.com/IOT-MCU/LoRa-Radio-Node-v1.0





Package list:

  • SX1278 LoRa ATmega328P RFM98 433/ 915MHz Radio Node Module x 1
