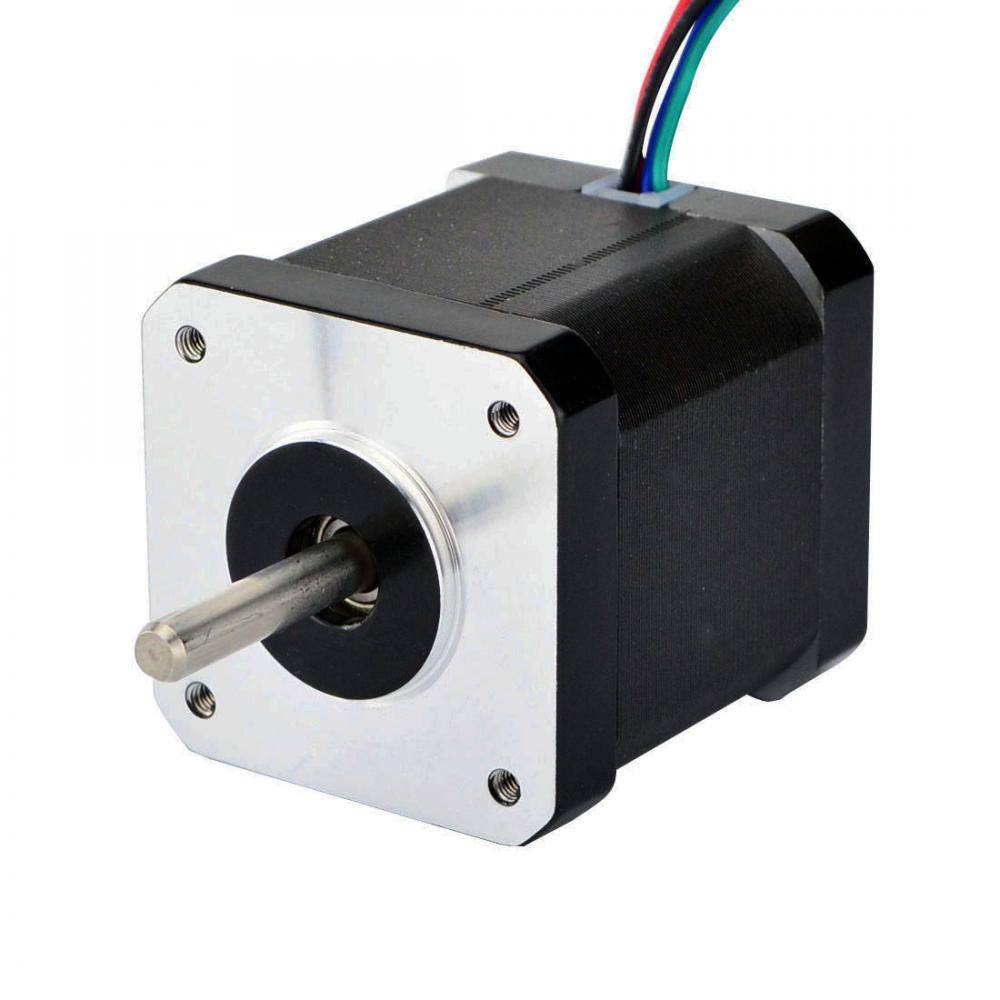

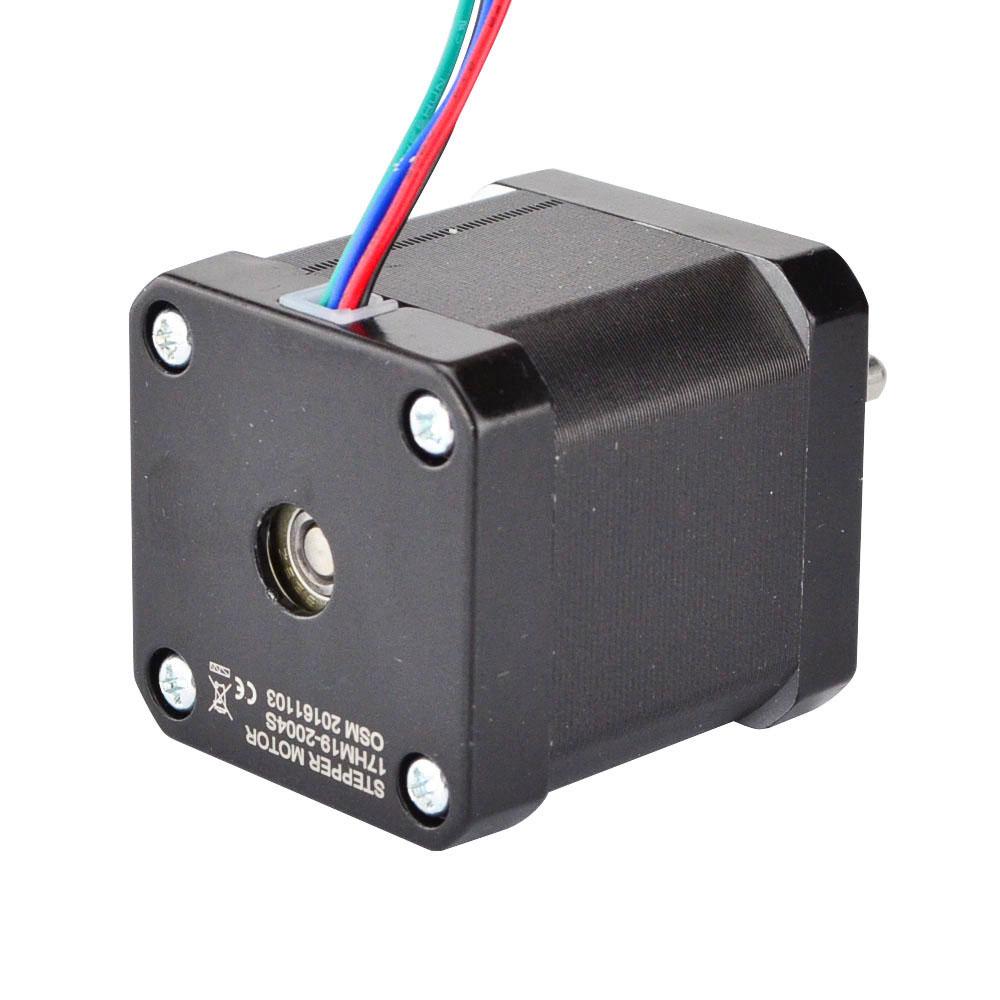

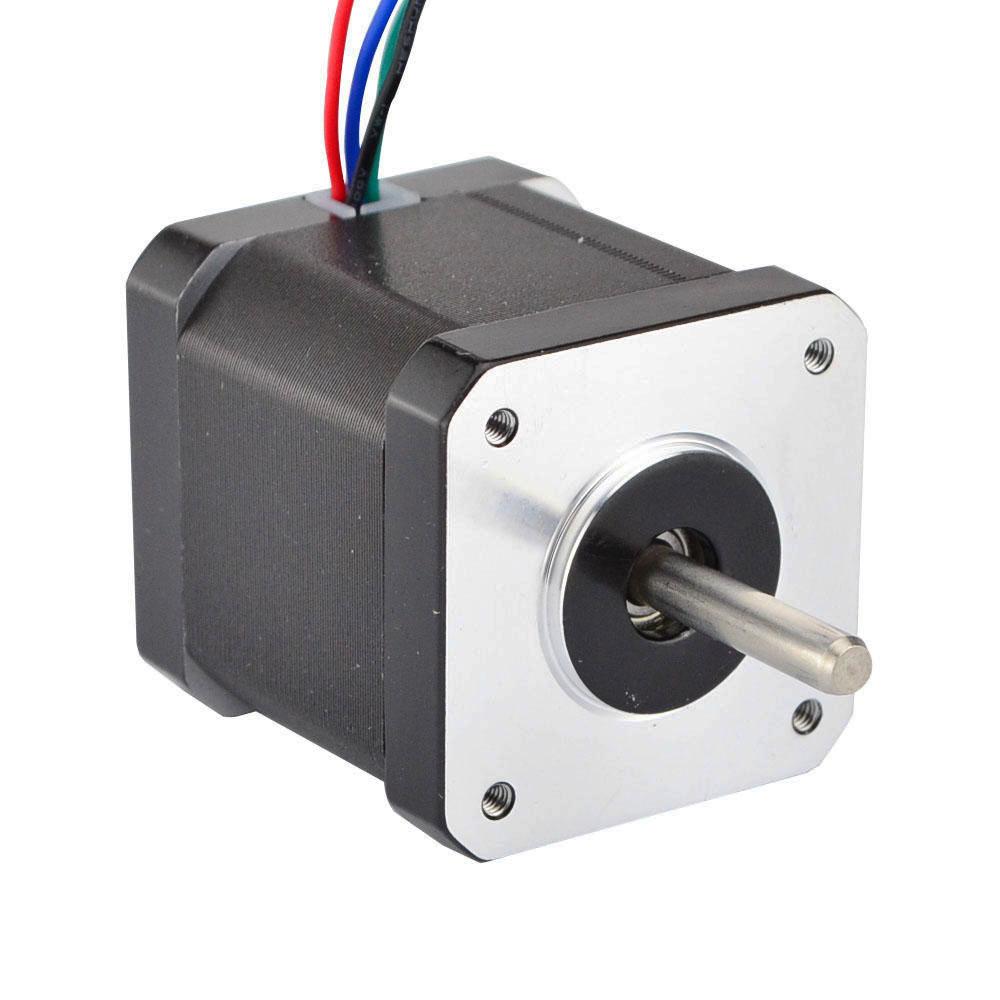

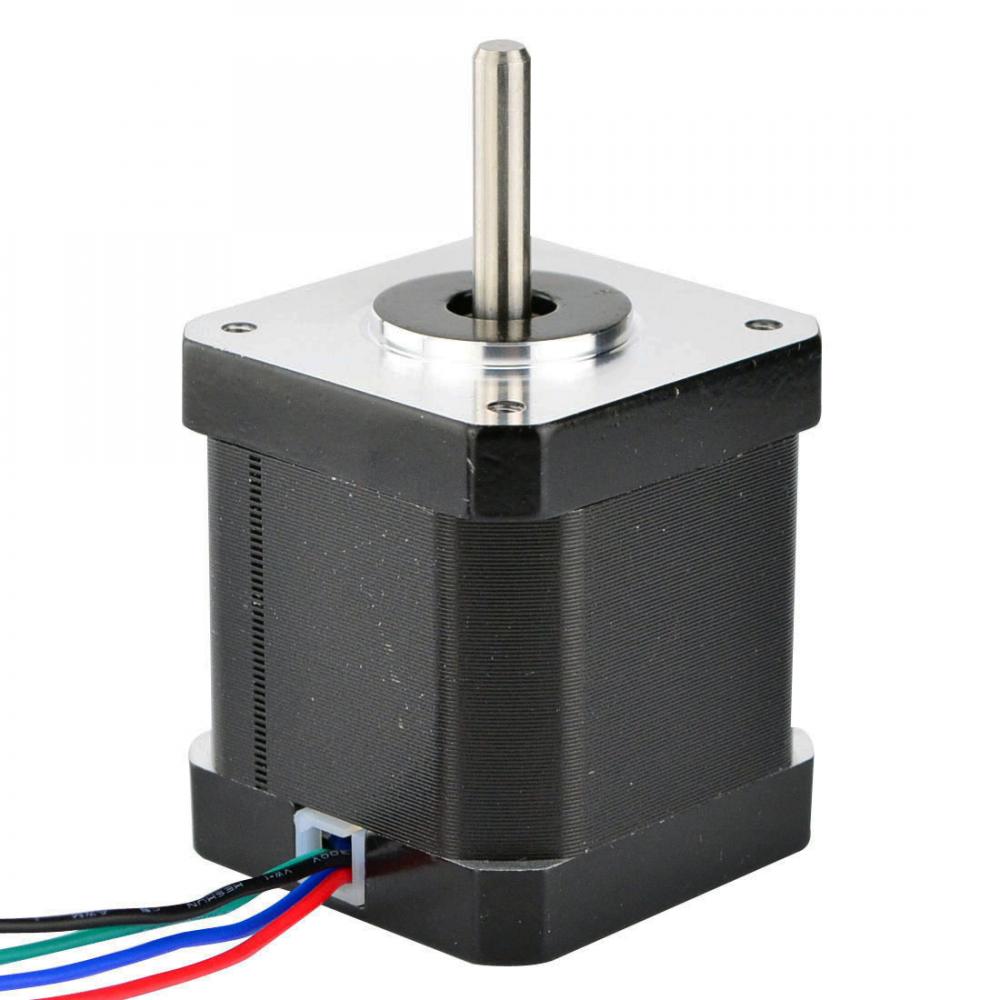

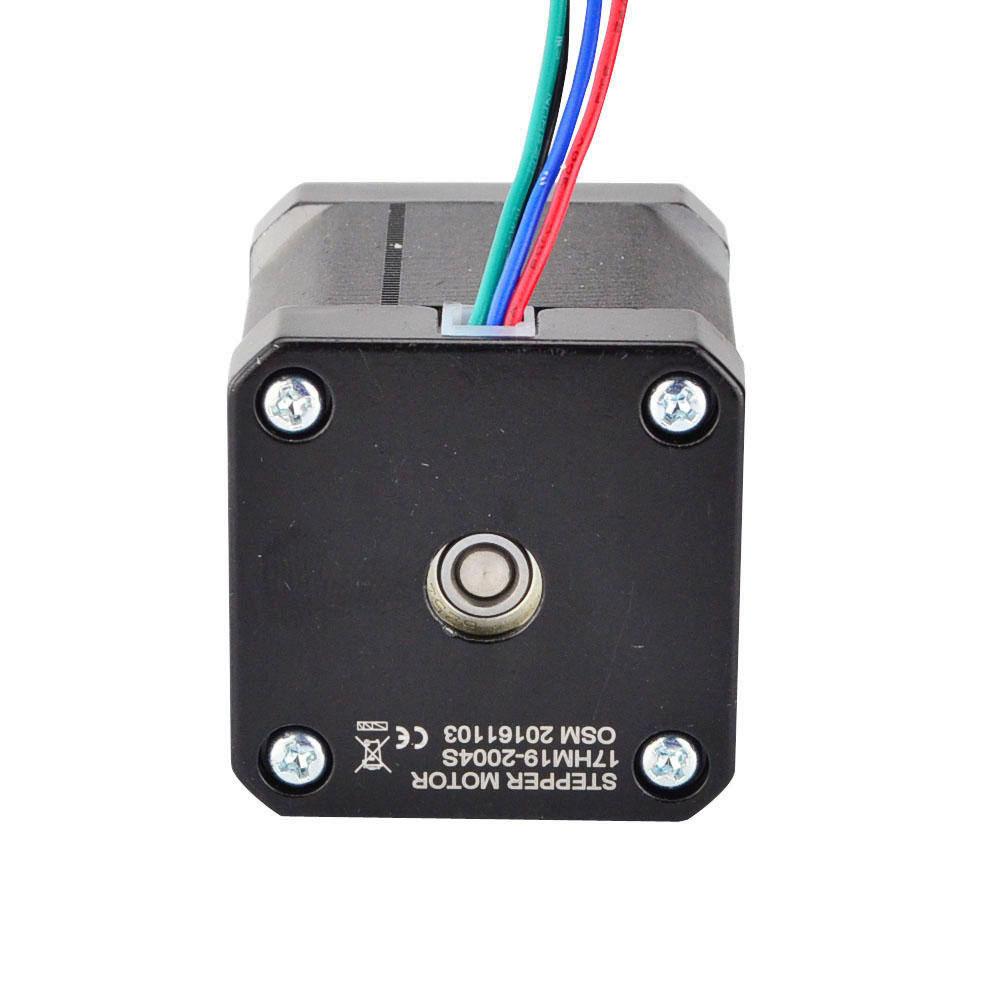

Nema 17 Bipolar 0.9deg 46Ncm (65.1oz.in) 2A 2.8V 42x42x48mm 4 Wires

Nema 17 Bipolar 0.9deg 46Ncm (65.1oz.in) 2A 2.8V 42x42x48mm 4 Wires

Motor paso a paso bipolar Nema 17 con ángulo de paso de 0.9deg (400 pasos por vuelta). Cada fase consume una corriente de 2.0 A. Ofrece un Torque de 46 Ncm (65.1oz.in). Eje tipo D.

COD: 17HM19-2004S

Peso: 0.370 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 40000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Electrical Specification:

  • Manufacturer Part Number: 17HM19-2004S.
  • Motor Type: Bipolar Stepper.
  • Step Angle: 0.9 deg.
  • Holding Torque: 46Ncm (65.1oz.in).
  • Rated Current/phase: 2.0A.
  • Voltage: 2.8V.
  • Phase Resistance: 1.4ohms.
  • Inductance: 3.0mH ± 20% (1KHz).

Physical Specification:

  • Frame Size: 42 x 42mm.
  • Body Length: 48mm.
  • Shaft Diameter: Φ5mm.
  • Shaft Length: 24mm.
  • D-cut Length: 15mm.
  • Number of Leads: 4.
  • Lead Length: 500mm.
  • Weight: 370g.

Connection:

A+
A-
B+
B-
Black
Green
Red
Blue



Electrical Specification

Physical Specification

Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 46
Holding Torque(oz.in) 65.1
Inductance(mH) 3
Phase Resistance(ohm) 1.4
Rated Current(A) 2
Step Angle(°) 0.9
Body Length(mm) 48
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 500
Weight(g) 400
