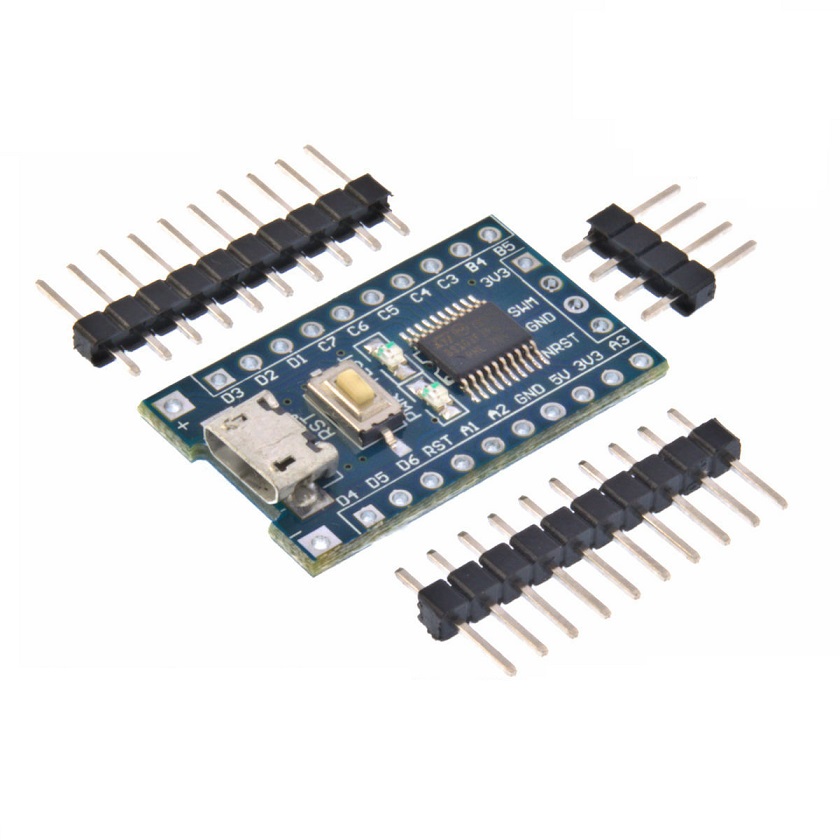

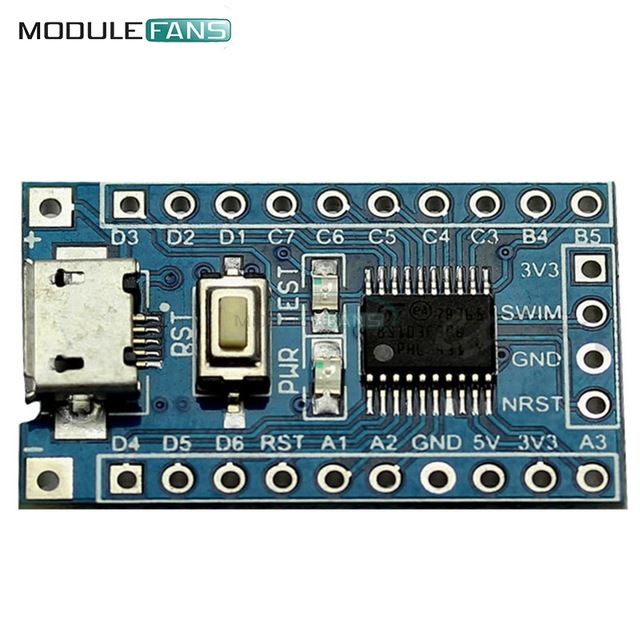

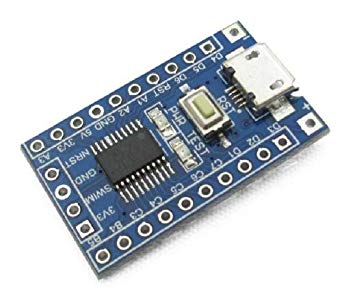

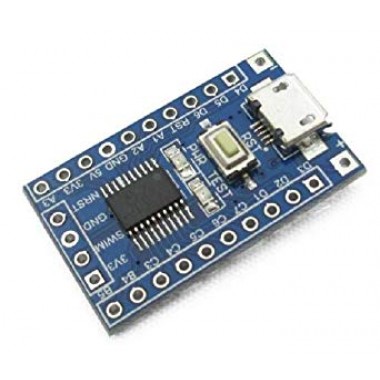

STM8S103F3P6 Mini Dev Board
Placa de desarrollo basada en el STM8S103F3P6. Posee una memoria Flash de 8K y una EEPROM de 640 bytes. Integra interfaz micro USB y soporta programación SWIM. Incluye headers.
COD: TRODOD1014
Peso: 0.015 Kg
Disponibilidad: En Stock
ARS 4487.00
El producto no está disponible para la venta en este momento
Características
Description:
- This is a new STM8S103 development board, all the pins are lead out.

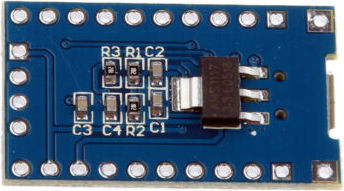

- It can be powered by USB 5V, SWIM or power pins, board includes AMS1117-3.3V LDO to convert USB 5V to 3V3 VDD.
- Support SWIM programming.
- Including Power LED, custom LED on pin PD3 (This should flash when you power it up) and reset button.
- Compare to STM8S003, it has
- bigger EEPROM up to 640 bytes (128 bytes of S003).
- can re-flash more than 10K times (100 times of S003).
- and 8K flash (4K flash of S003).
