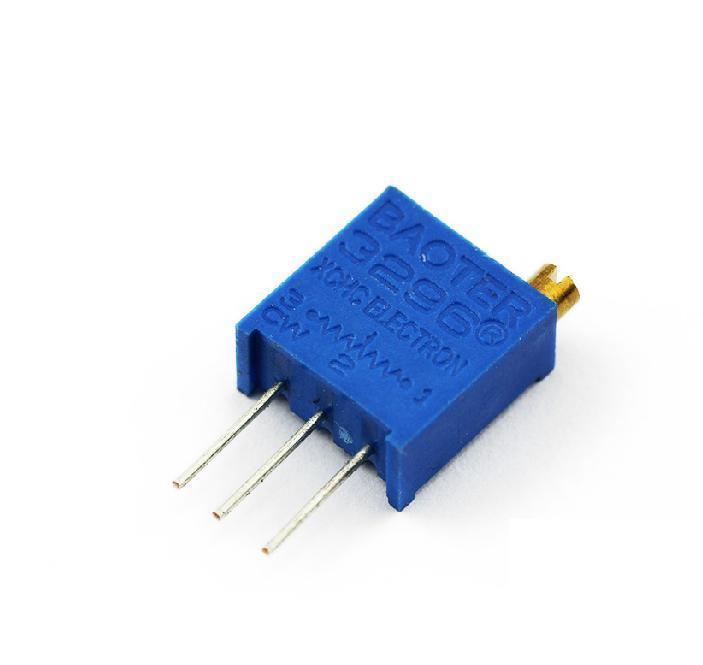

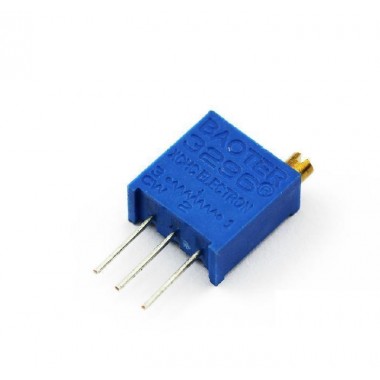

3296W-103 10K Adjustable Potentiometer
![3296W-103 10K Adjustable Potentiometer](/library/timthumb/timthumb.php?src=/uploadsproductos/10k-3296w-3296-trim-pot-adjustable-potentiometer-ubitronix-1606-11-ubitronix_6_8q.jpg&w=380&h=380&zc=2)
Trimmer multivuelta vertical de 10K, tipo 3296W.
COD: HTHS0523-10K-U
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 667.00
El producto no está disponible para la venta en este momento
Características

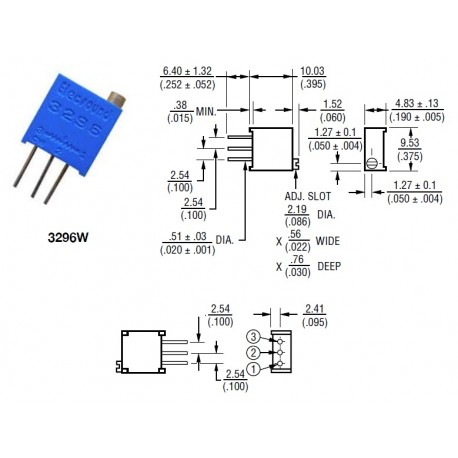

3296W - 3/8" 10 kohm Square Trimming Potentiometer
Specifications:
Adjustability Voltage .................................. ±0.01 %
Adjustability Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ...............500 vdc, 1000 megohms min.
Dielectric Strength:
Sea Level................................ 900 VAC
70,000 Feet............................ 350 VAC
Effective Travel .................25 turns nom.
