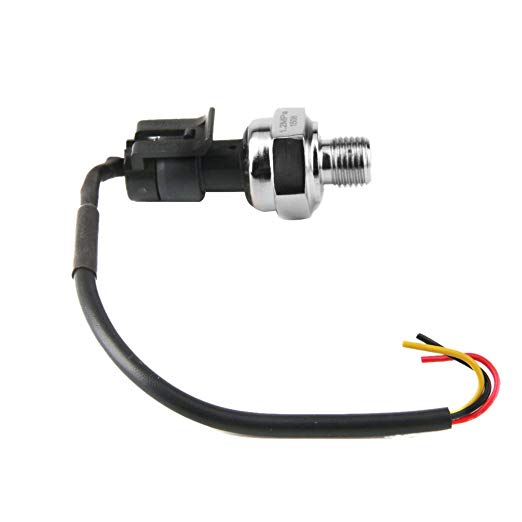

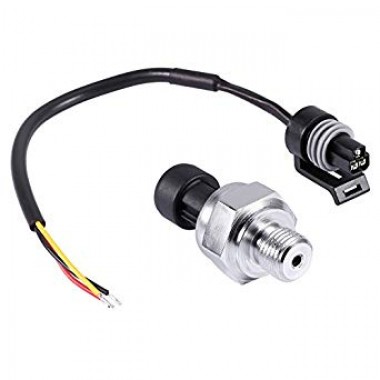

G1/4 inch 5V 0-1.2 MPa Pressure Transducer Sensor
Sensor de presión de rango 0 a 1.2 MPa, para gases o líquidos no inflamables ni corrosivos. Ofrece una salida analógica de 0.5-4.5 VDC y se alimenta con 5V. Posee conector G1/4. Compatible con Arduino. Material: acero.
COD: HTHS0161
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 40692.00
El producto no está disponible para la venta en este momento
Características
Specifications:
- Working Voltage: 5VDC.
- Output Voltage: 0.5-4.5 VDC.
- Sensor material: Carbon steel alloy.
- Working Current: ≤10 mA.
- Working Pressure Range: 0-1.2 MPa.
- The Biggest Pressure: 2.4 MPa.
- Cable length: 19cm.
- Destroy Pressure: 3.0 MPa.
- Working TEMP. Range: 0-85 Celsius degree.
- Storage Temperature Range: 0-100 Celsius degree.
- Measuring Error: ±1.5 %FSO.
- Temperature Range Error: ±3.5 %FSO.
- Response Time: ≤2.0 ms.
- Cycle Life: 500,000 pcs.
- Application: non-corrosive gas liquid measurement.
Features:
- Easy removal, carbon steel connection more firmly.
- Stainless steel is durable, sealed waterproof line, imported chips.
- Wiring: red +, black -, yellow output.
- Package includes:1 x Pressure Transducer Sensor
