LiPo Charger Basic - Micro-USB
Cargador de baterías LiPo desde USB
COD: SFPRT10217
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 14982.00
El producto no está disponible para la venta en este momento
Características
Description: If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The LiPo Charger Basic is stripped down of all features and just does one thing well - charge 3.7V LiPo cells at a rate of 500mA per hour. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

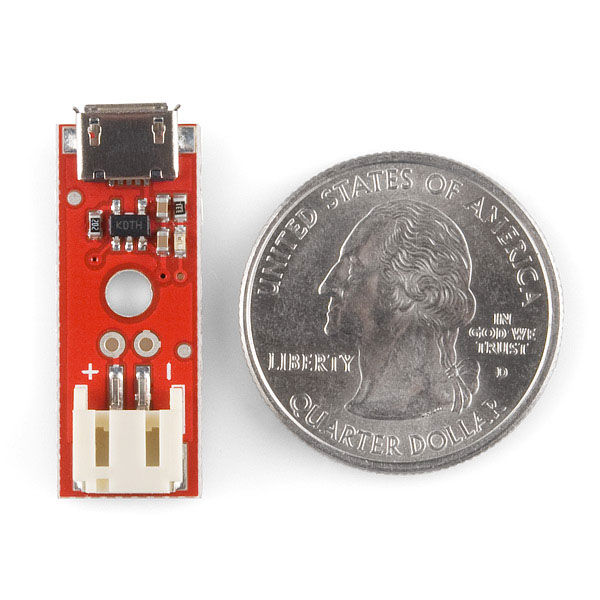

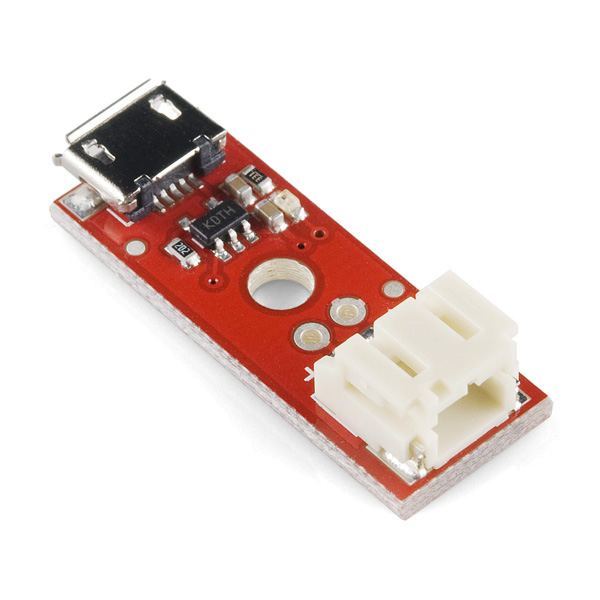

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a micro-USB connector. A small mounting hole allows this charger to be easily embedded into a project.
Note: This version uses a micro-USB cable. We also have this charger with a mini-USB connection as well.

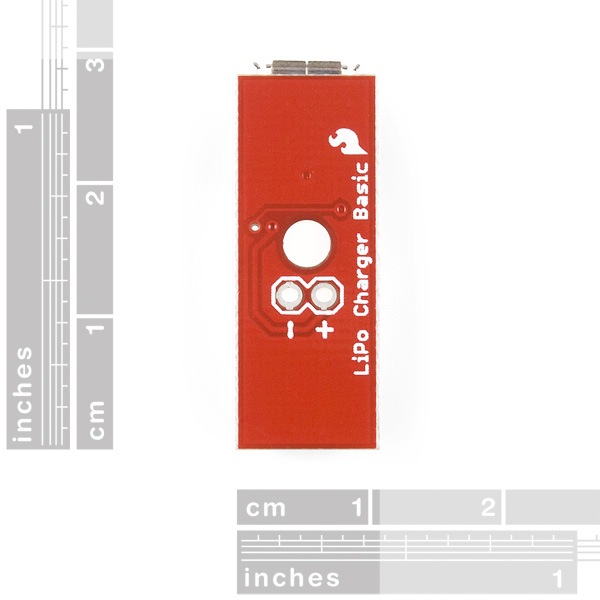

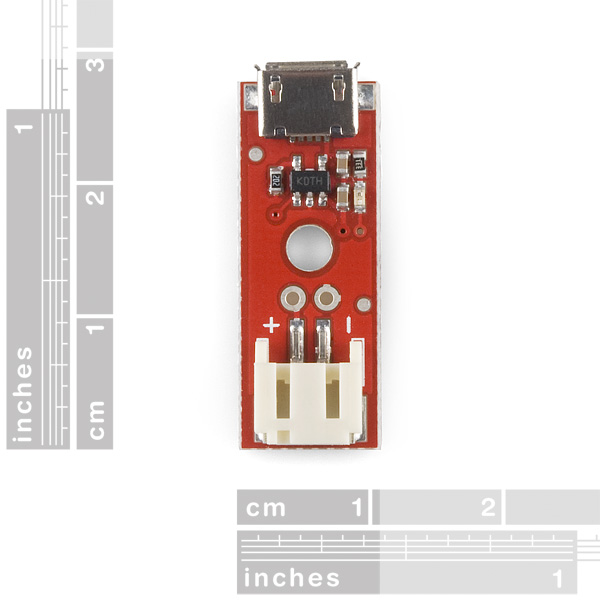

Dimensions: 29.4x10.8mm
Schematic (15 Kb)
Eagle files (25 Kb)
