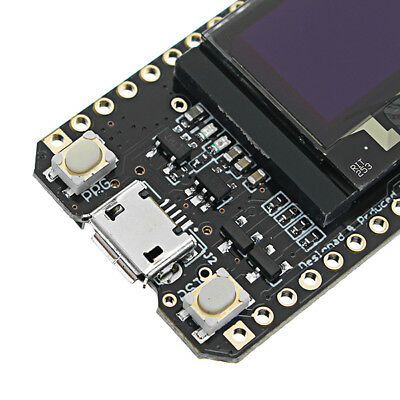

TTGO LORA32 868/915Mhz SX1276 ESP32 Oled-display Bluetooth WIFI Lora

TTGO LORA32 868/915Mhz SX1276 ESP32 Oled-display Bluetooth WIFI Lora

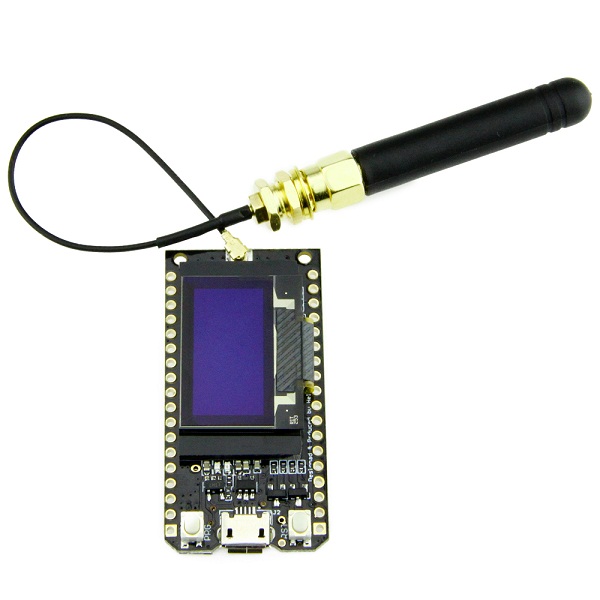

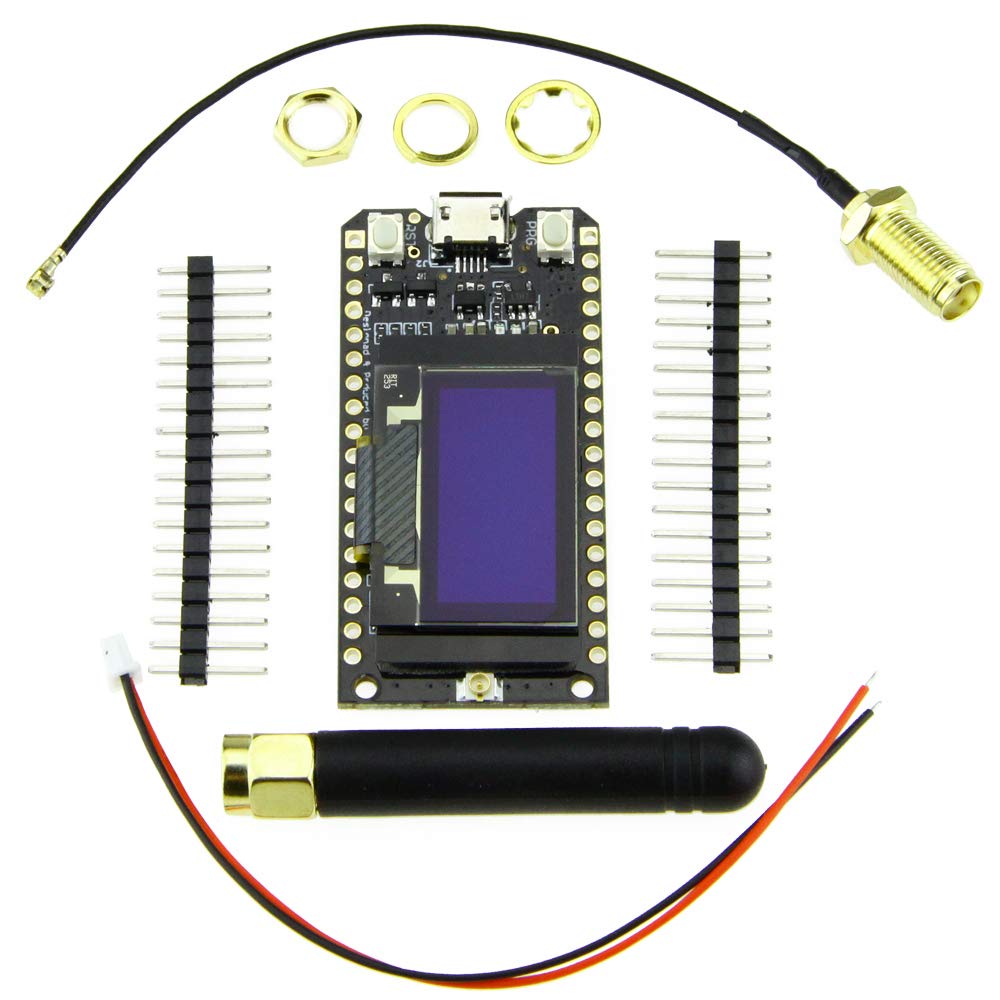

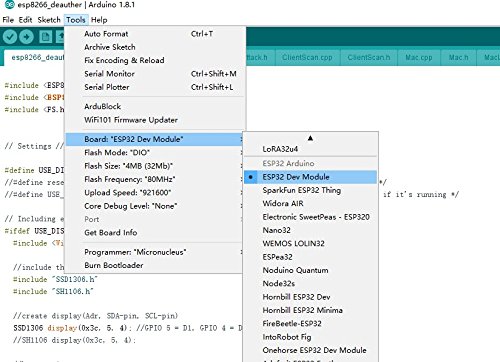

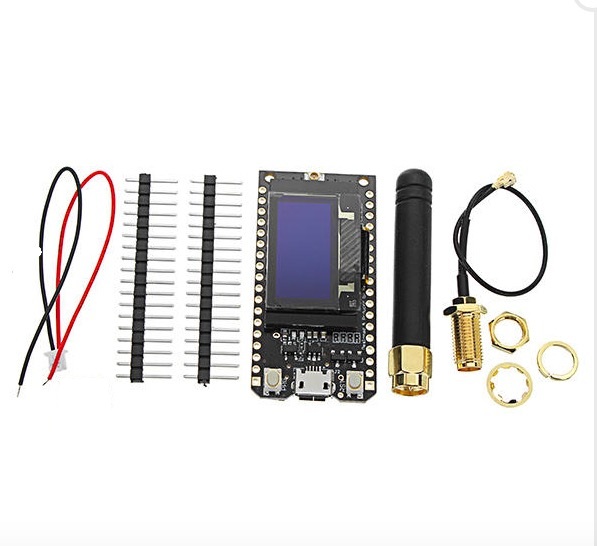

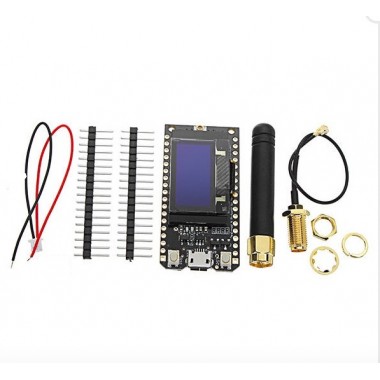

Excelente placa de desarrollo con conectividad LoRa de 915 MHz, Bluetooth y WiFi. Integra un display oled de 0.96 pulgadas, interfaz USB (CP2102) y cargador de batería integrado. Puede ser alimentado con baterias de tipo Li-Ion. Incluye antena LoRa externa, headers para soldar y cable de alimentación con conector JST. Compatible con el IDE de Arduino.

COD: HTHS0817

Peso: 0.070 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 91391.00

Cantidad:

El producto no está disponible para la venta en este momento

Características


 The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)!



Product:

  • TTGO LORA32 868Mhz ESP32 LoRa OLED 0.96 Inch Blue Display
  • Bluetooth WIFI ESP32 Module with Antenna


Description:

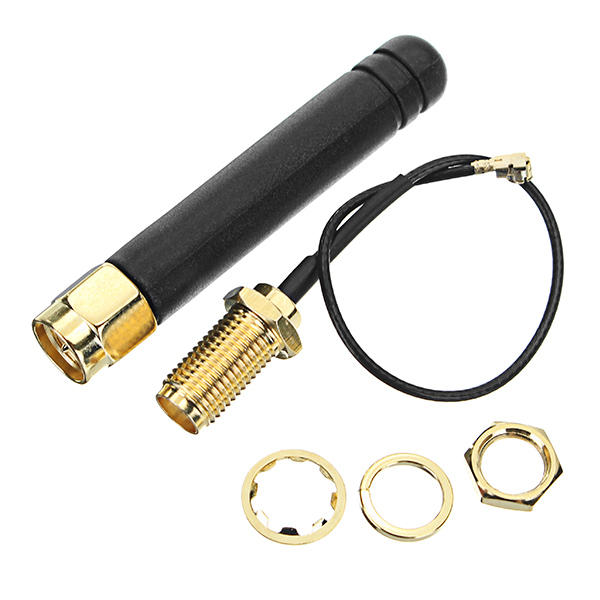

  • The 868MHz antenna needs to be in connection with the IPEX interface. If the antenna is not connected, it may damage the LoRa chip.
  • Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working.
  • When using, pay attention to the positive and negative of the battery.
  • With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!.
  • This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868MHz frequency.
  • High sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.
  • The 4Mt bytes (32 Mt bit) onboard Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, CP2102 interface and USB serial chip.


Code info:

https://github.com/LilyGO/TTGO-LORA32-V2.0/tree/LilyGO-868-V1.0
