SparkX Pro RF - LoRa-enabled 915MHz

SparkX Pro RF - LoRa-enabled 915MHz

Interesante placa para desarrollo de proyectos de IoT, la cual combina un Arduino Pro Micro y un Módulo LoRa® RFM95W de largo alcance en la banda ISM de 915 MHz. Viene con un conector LiPo, cargador LiPo integrado y un interruptor deslizante para encendido/apagado. Cuenta además con interfaz micro usb. Muy fácil de programar.

COD: SFSPX14785

Peso: 0.007 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 55487.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

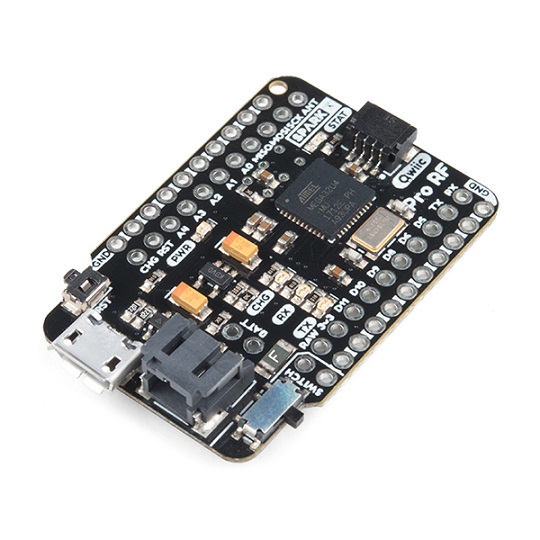

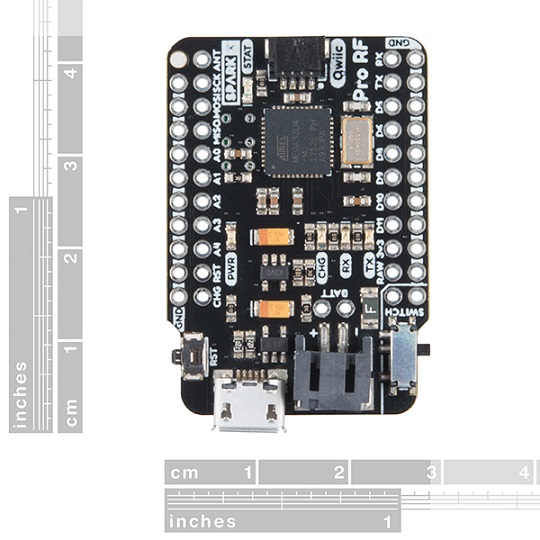

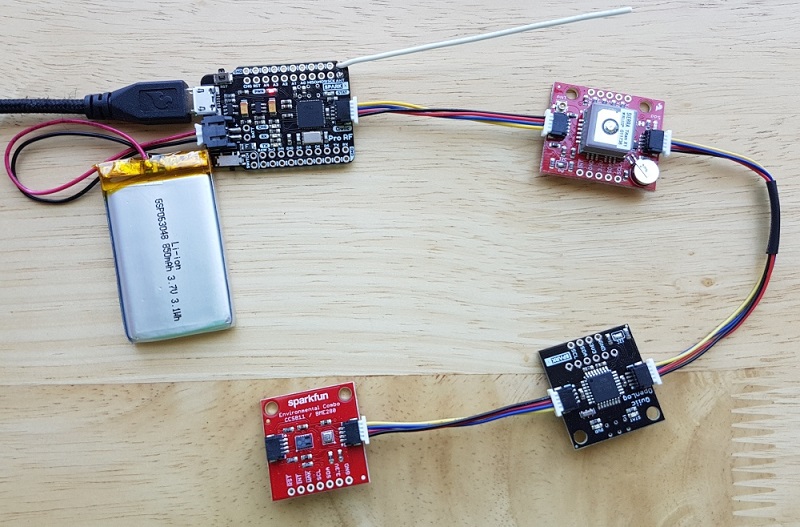

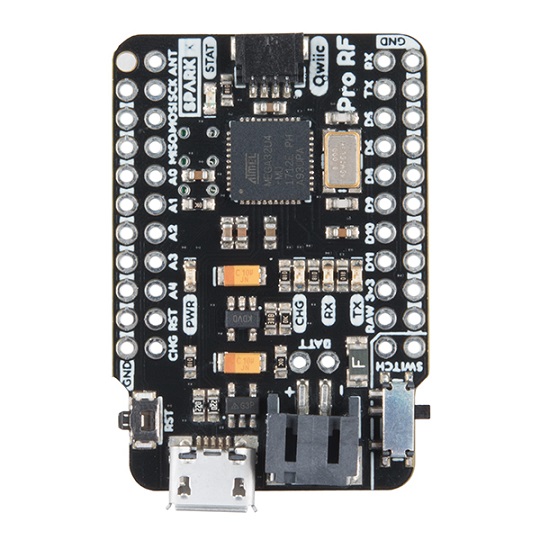

The Pro RF is the mind meld of a Pro Micro and a long-range RFM95W LoRa-enabled radio. What you get is a very compact, easy to use Arduino with excellent point to point data transmission in the 915MHz ISM band. The Pro RF comes with a LiPo connector, a on-board LiPo charger, and a slide switch for On/Off. The board programs over a reinforced microB connector with a sleek reset button that fits nicely on the side of the board. We’ve even added our popular Qwiic connector to the edge of the board making it incredibly fast to add sensors and actuators.

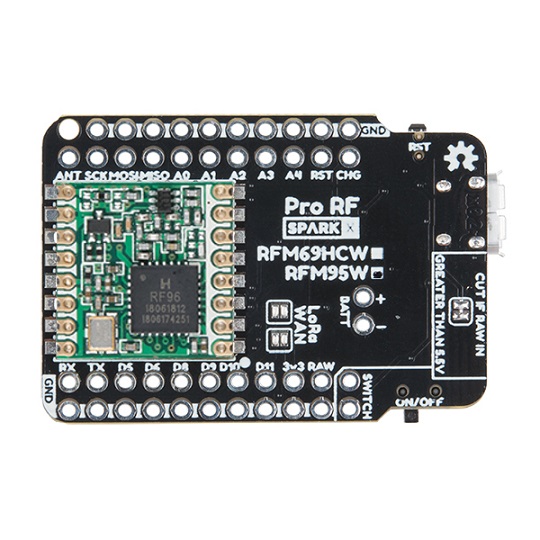

Thanks to the Arduino LoRa library, the RFM95W radio is an easy to use packet radio. But it doesn’t stop at point-to-point packet radio because closing a few jumpers will give the Pro RF access to the DIO pins on the RFM95W which are necessary to operate in LoRaWAN mode, so you can use the Pro RF as a LoRaWAN node in a distributed sensor network such as The Things Network.

The Pro RF also includes a power switch and 2-pin JST connector for powering from a lithium battery. With the power switch in the off position, the Pro RF will even charge the attached battery!

And stop running out of ground pins! Every pin on the Pro RF is accompanied with a ground connection making buttons and LEDs super easy to connect. And in case your building something to be embedded into clothing or other physically harsh environment the antenna includes a stress relief hole to make sure your wire antenna survives.

Although a short (3 inch) wire antenna is sufficient for short distances (up to 1 mile line-of-sight), LoRa is theoretically capable of covering extremely long distances (several miles) using the proper antenna. We’ve included the sketches we used for range testing.

Checkout the Pro Micro hookup guide as a general starting point for the Pro RF.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.


Documents:
