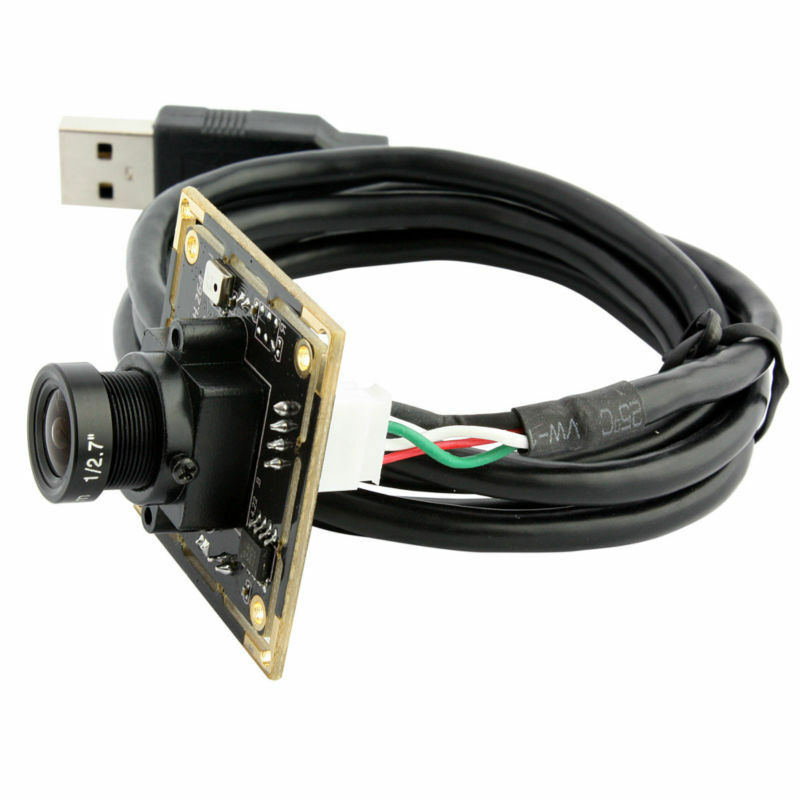

NLK-2MP06 USB camera board with 90 degree lens and holder

NLK-2MP06 USB camera board with 90 degree lens and holder

WebCam USB con resolución FullHD de 1080p. Cuenta con tecnología H.264, y WDR (Wide Dynamic Range). Funciona a 30 fps. Compatible con Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ), Androld(>4.0). Incluye cable con interfaz USB de 60 cm.

COD: NLK2MP06

Peso: 0.030 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 88400.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

Wide angle H.264 USB Webcam board module with REAL WDR function

Parameter

SPEC.

Optical size Sensor

1/2.7  inch COMS sensor

Sensor Resolution

1920(H) x 1080 (V),1080P

Unit pixel size

3*3um

Color filter

RGB Bayer pattem

Shutter type

Electronic Rolling Shutter

Signal System

YUV422 / MJPG/H.264



Max.capture frame rate

30fps@full resolution,

Max. video frame rate

30fps@VGA,720p,1080P

View Angle/Focal Length

90° /3.6

F Number

2.0

AEC / AGC/ White Balance

Auto

Focus Distance

with fixed lens 50CM-∝

Interface

USB 2.0

Power

USB Bus Power

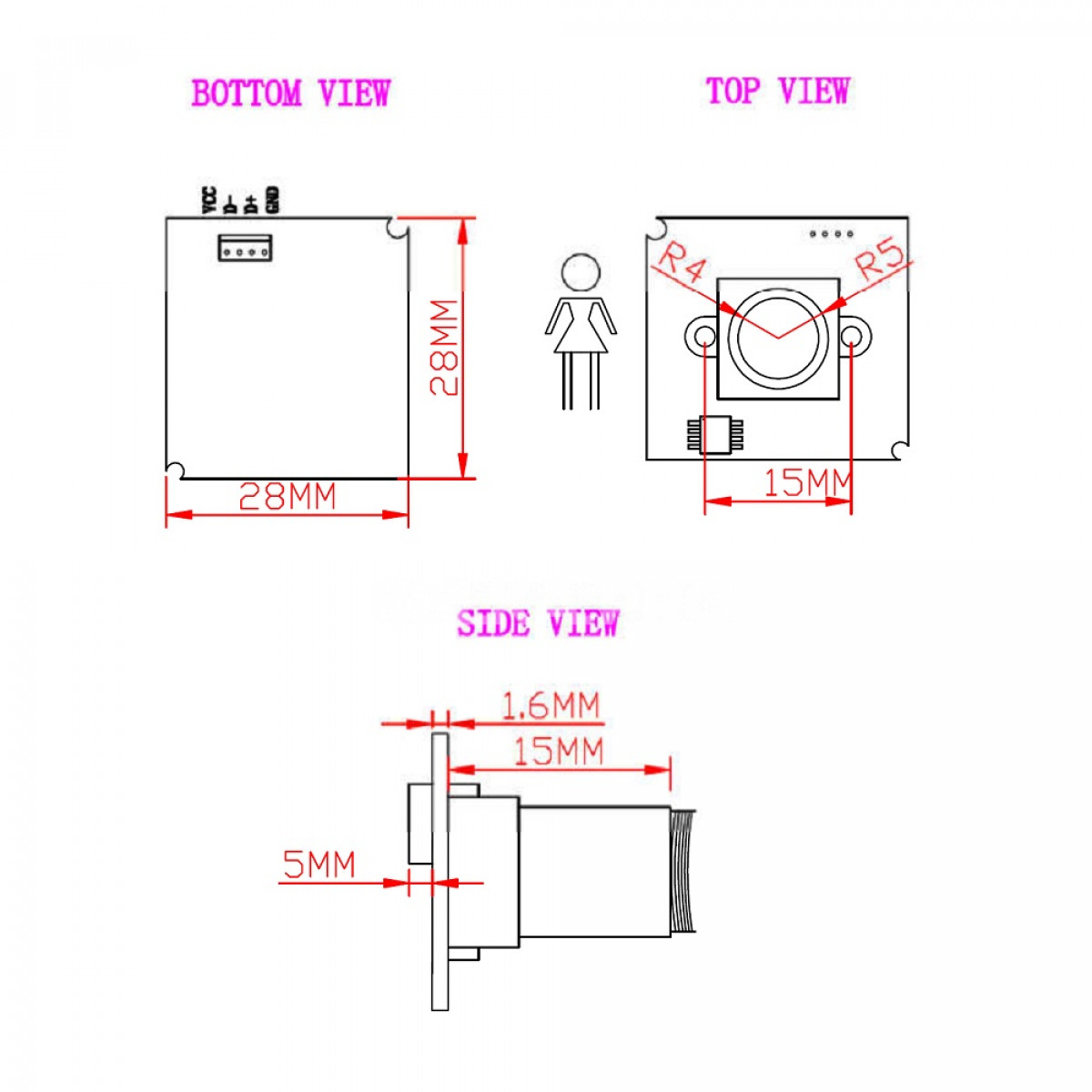

Dimensions (mm) (L x W x H)

28mm x 28mm x21.6 +/-0.2mm

SNR Max

41dB

Max Dynamic range

105dB

Operating Temperature

0℃to +60°C

Operating System Request

Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ),Androld>4.0 or above with UVC

Max pixel rate

28Mp/s

ADC accuracy

12-bit

USB 2.0 PHY

On Chip PHY

Power Consumption

Standby

4mA

Operating

100Ma-220mA

Lens FIELD OF VIEW(D)

3007B

100°

3047B

80°

8134J

140°
