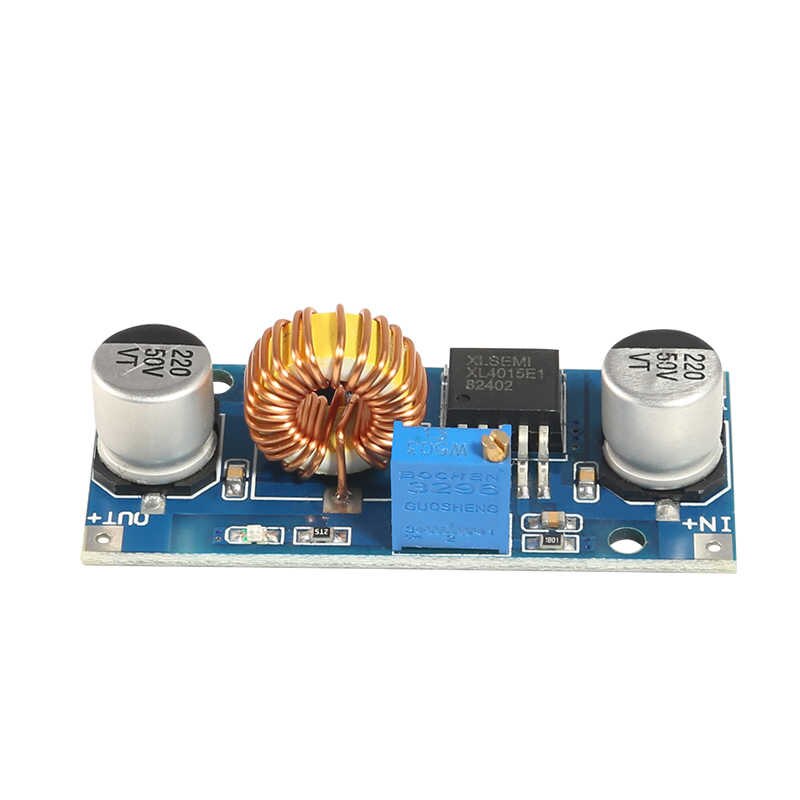

DC-DC Step-Down Power Module XL4015 8-36V 5A
Fuente switching step-down (reductora) basada en el XL4015, de alta eficiencia (96%) y bajo ruido. Admite tensiones de entrada tan bajas como 8VDC, y permite obtener hasta 32VDC a la salida, con una corriente máxima de entrada/salida de 5A.
COD: TROOPM1171
Peso: 0.025 Kg
Disponibilidad: En Stock
ARS 2617.00
El producto no está disponible para la venta en este momento
Características
Description:
5A High Power, High Efficiency, Low Ripple module with power indicator and heat sink.
Features:
- Module type: Non-isolated Buck Module (BUCK).
- Input voltage: 8-36V (Please try not to exceed 36V as input).
- Output voltage: 1.25-32V continuously adjustable.
- Output current: 0-5A, recommended for use within 4.5A.
- Output power: It is recommended to use within 75W. If more than 50W, please add heat sink.
- Working temperature: -40~+85 degrees.
- Working frequency: 180KHz.
- Conversion efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference).
- Load adjustment rate: S(I) ≤ 0.8%.
- Voltage adjustment rate: S(u) ≤ 0.8%.
- Power indicator: Yes.
- Short circuit protection: Yes (limited current 8A).
- Over temperature protection: Yes (automatically turn off the output after over temperature).
- Input reverse connection protection: None, (If necessary, please add a large current diode in the input string).
- Installation method: 2 x Dia. 3mm screw.

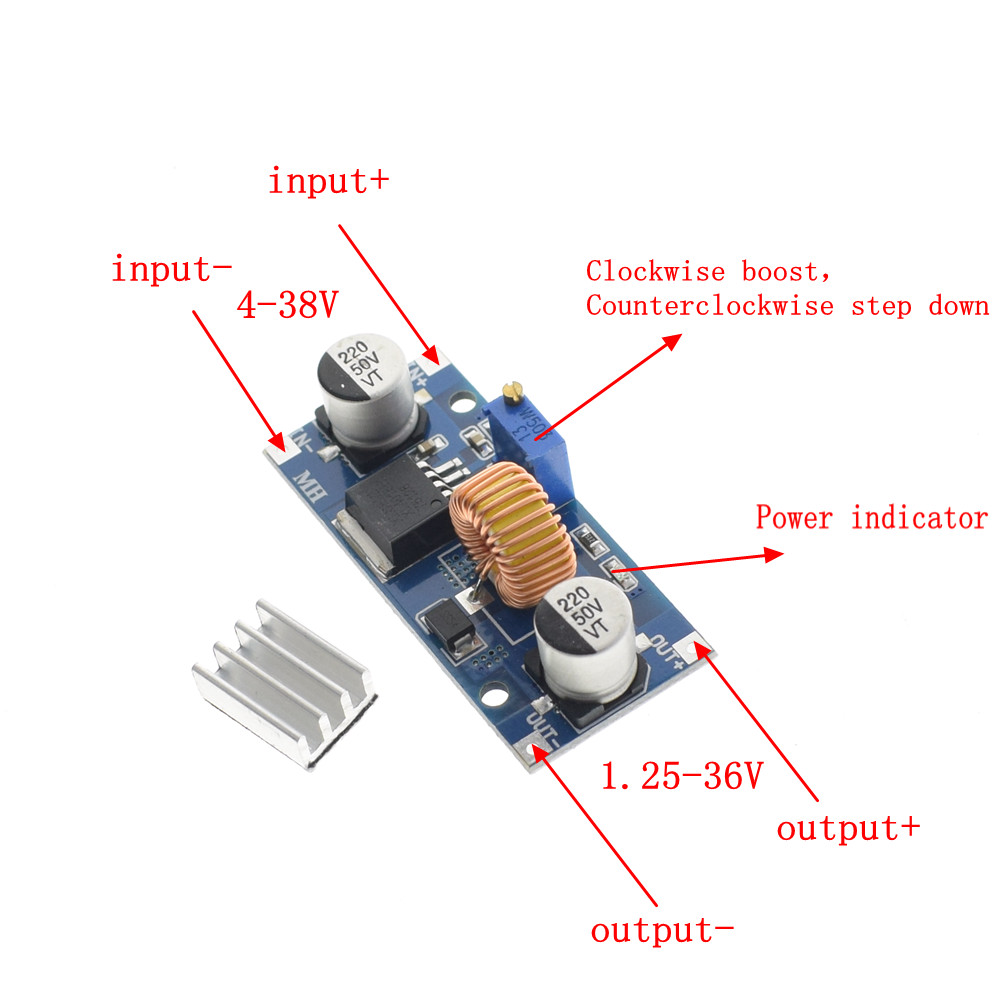

- Wiring method: welding, V-IN is input, V-OUT is output.
- Module size: length 54mm width 23mm height 18mm.
xl4015_datasheet_4t.pdf (283 Kb)
