MiFare Classic (13.56MHz RFID/NFC) Bracelet
Brazalete RFID de silicona que incluye chip NXP S50 con antena.
COD: D000921
Peso: 0.015 Kg
Disponibilidad: Sin Stock
ARS 10281.00
El producto no está disponible para la venta en este momento
Características

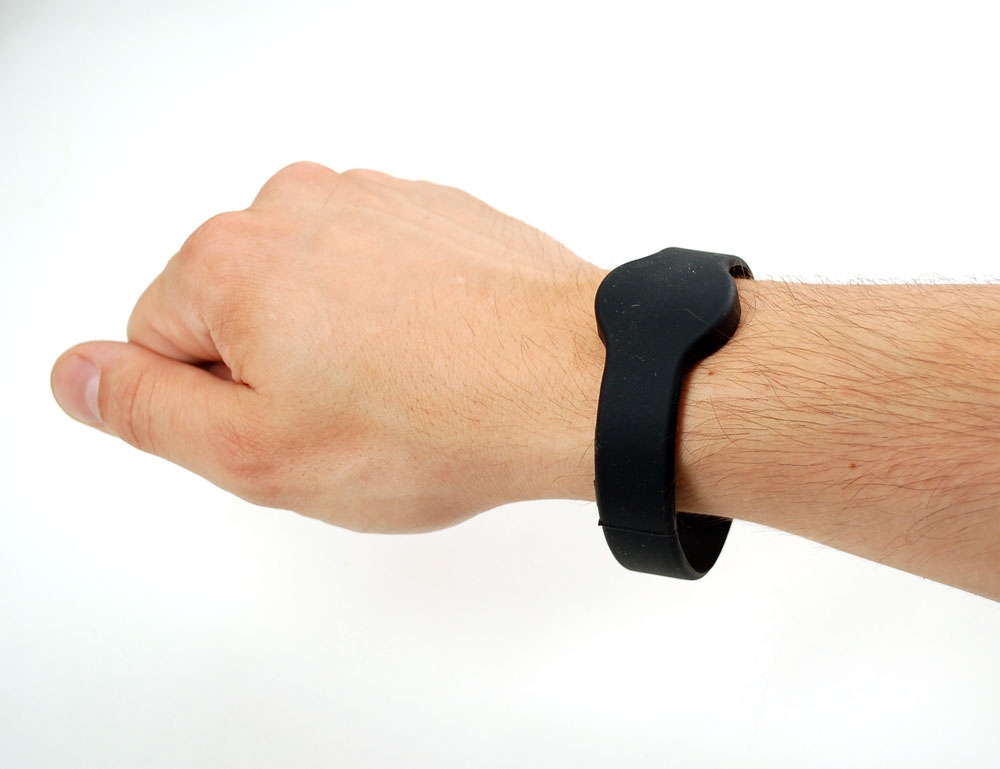

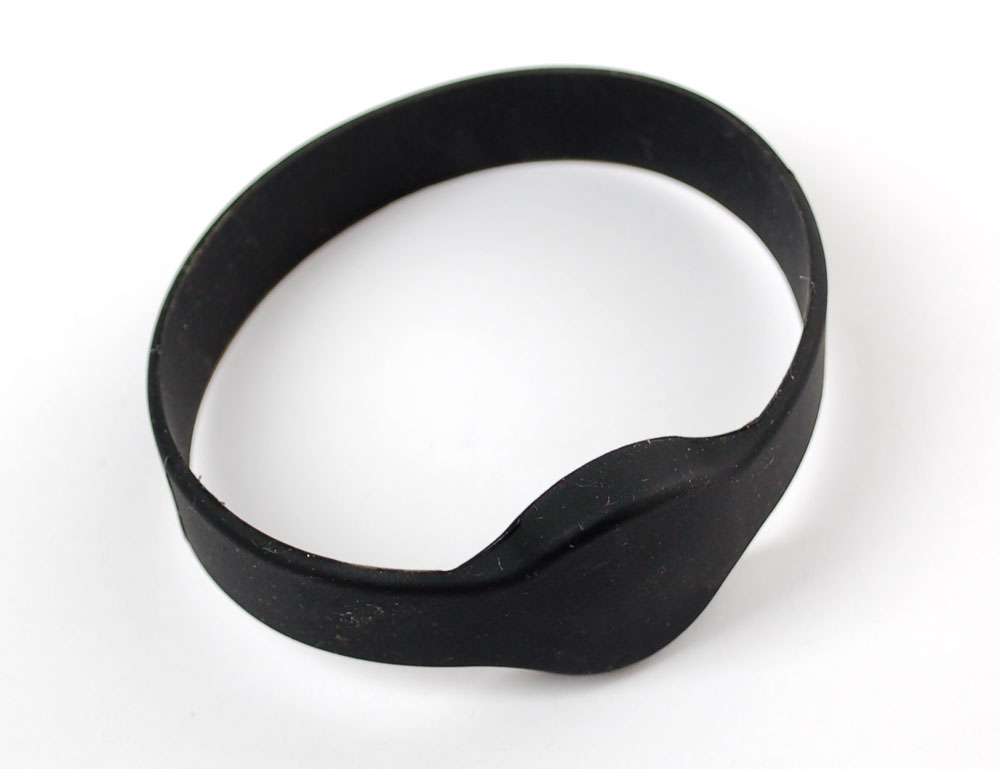

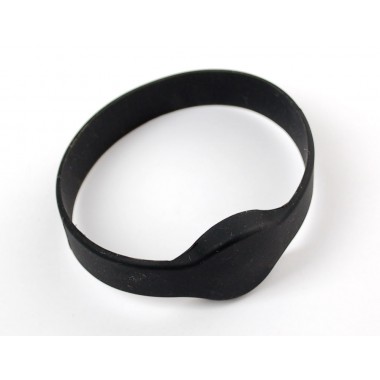

This is a blank MiFare Classic silicone bracelet - often used for parties/events or identification but also found in other systems where a small proximity card is desired. The bracelet contains a NXP S50 chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away
These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle MiFare cards as there are a few other encoding standards (like FeLica) They are tested and work great with both our PN532 NFC/RFID breakout board andAdafruit NFC/RFID Shield for Arduino!
These chips can be written to & store up to 1 KB of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes. You can use our PN532 NFC/RFID breakout board or Adafruit NFC/RFID Shield for Arduino to read and write data to the EEPROM inside the tag. There is also a permanent 4-byte ID burned into the chip that you can use to identify one tag from another - the ID number cannot be changed.
S50 chip specification:
- 1 KiloByte (8 KiloBit) non-volatile EEPROM storage
- Built in encryption engine with 48-bit key
- 4 Byte unique identifier burned into the chip
- 13.56 MHz frequency
Bracelet specification:
- Fits wrists/ankles/hands up to 70mm (2.75") diameter 25.4mm diameter
- Bracelet made of rugged waterproof silicone
- 0.9 grams / 0.03 oz
- Works about 1" away from reader
- Weight: 14.86g
S50 Datasheet (140 Kb)
