Lithium Battery BMS Module 5S 15A

Lithium Battery charge Module 5S 18.5v 21v BMS

Módulo de gestión (BMS) para baterías 18650 Li-Ion, con capacidad de 5 celdas de 3.7V/4.2V cada una en serie. Posee protección contra sobrecarga, sobredescarga, sobrecorriente, y cortocircuito.

COD: HTHS1250

Peso: 0.020 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6667.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Specifications:

  • This board is 5 string 3.7V/4.2V lithium battery protection board (18.5v - 21v total).
  • High current protection board, continuous 15A current.
  • Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

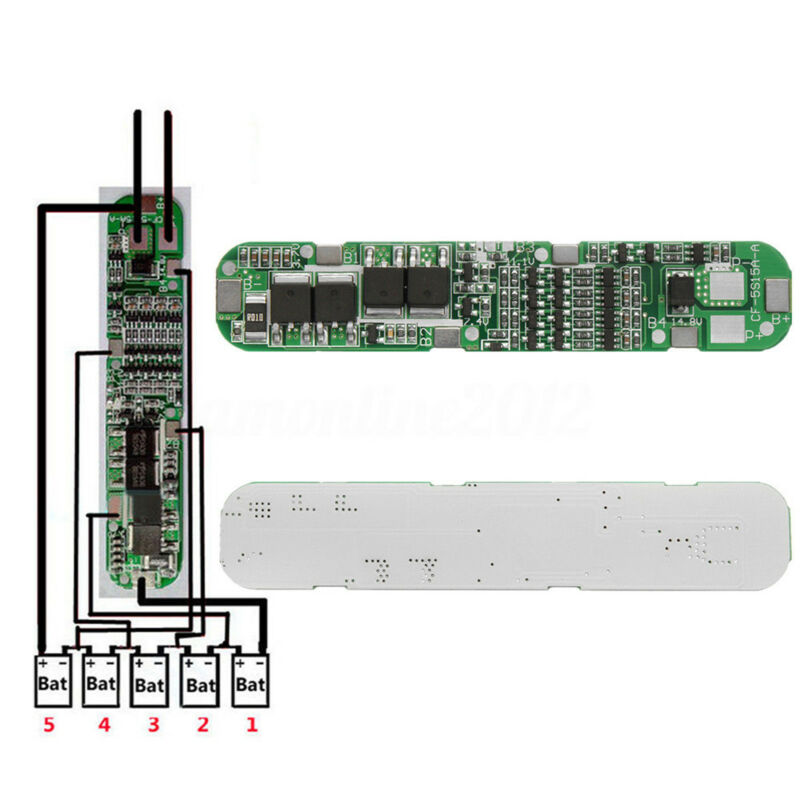

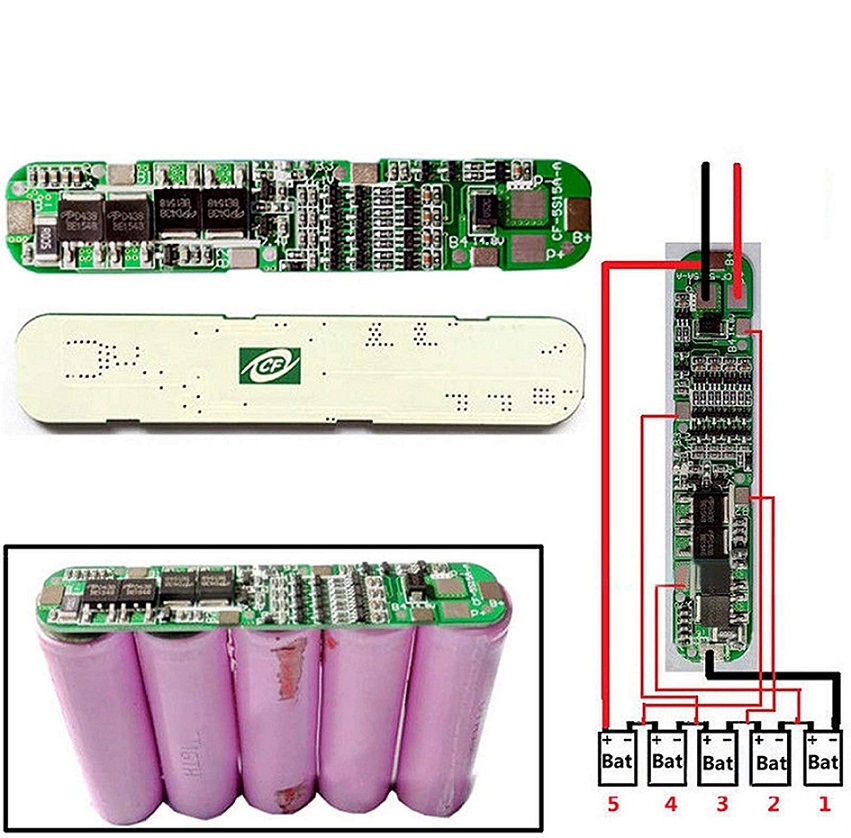

  • P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles.
  • B+ B- is the abbreviation of battery, which is the positive and negative pole of the battery.

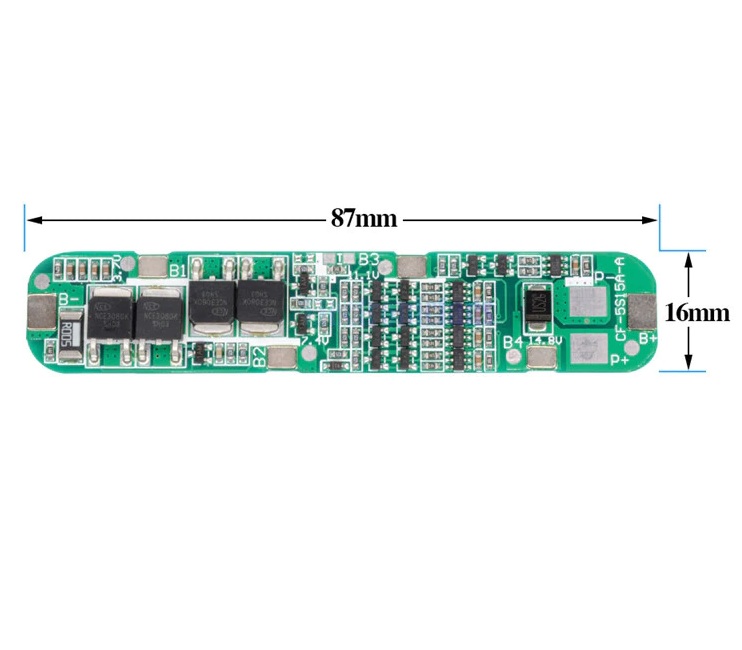

  • PCB board size: (approx.) 8.8x1.6cm / 3.46x0.63".



Detailed Parameters:

 Discharge:

  • Continuous discharge current: 15A(max)
  • Instantaneous discharge current: 25A

Charge:

  • Charge voltage: 21V
  • Charging current: 15A(max)
  • Overcharge Protect:
  • Over-charge detect: 4.28±0.05V
  • Protect delay: 0.5s
  • Over-charge release: 4.28±0.05V
  • Over-discharge Protect:
  • Over-discharge detect: 2.55±0.08V
  • Over-discharge detect delay: 0.1s
  • Release voltage: 2.9±0.1V

Short-circuit Protect:

  • Protect condition: Cut load
  • Detect delay: 250uS
  • Release condition: Cut load
  • Over-current Protect:
  • Detect voltage: 150mV
  • Detect delay: 9MS
  • Current detect: 30±3A
  • Release condition: Cut load
  • Inner Resistance: ≤20mΩ

Self-consumption:

  • Working current: ≤30uA
  • Sleep current: (when over-charge)≤10uA
  • Working Temperature Range: -30-+80℃
  • Quantity: 1 Pc
