ITEAD IS Shield

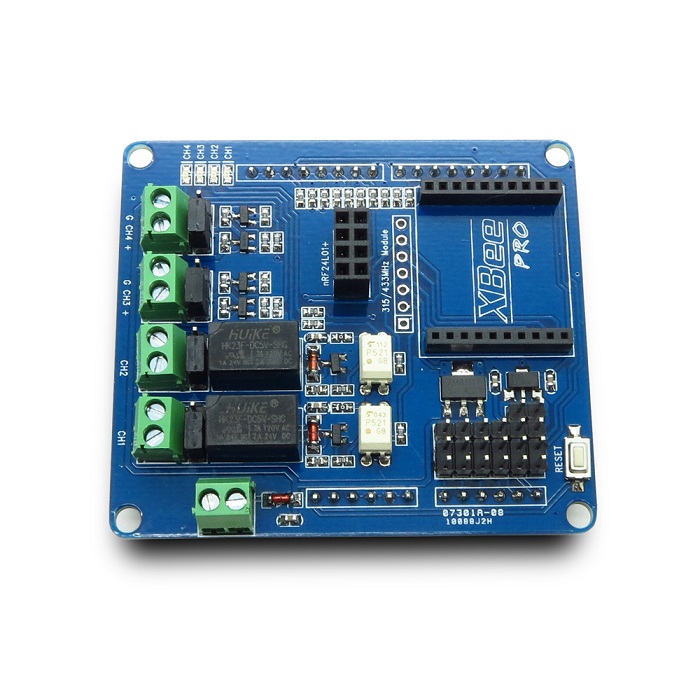

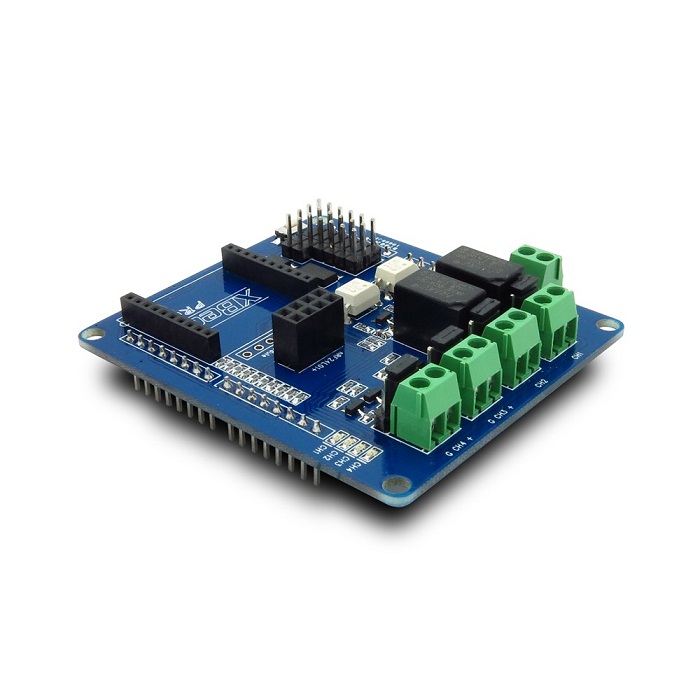

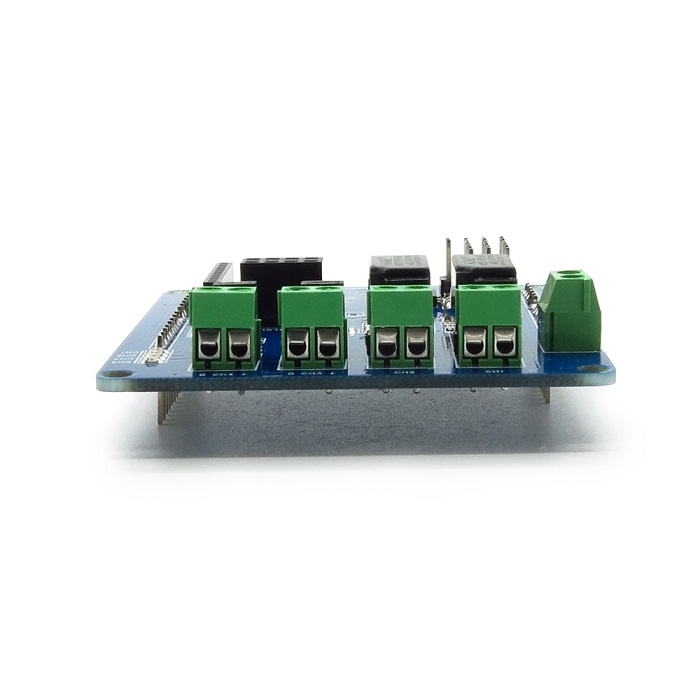

ITEAD IS Shield With 2 Channels Mechanical Relays and 2 Channels MOS Switch Module Starter Kit For Arduino

Shield compatible con Arduino, el cual integra un total de 4 canales para control de cargas, 2 basados en relés electromecánicos y 2 basados en tecnología MOS, de 5V. Provee además interfaz Xbee, nRF24l02, I2C y RF315/433M. Se puede alimentar de forma externa con tensiones de 9~20V.

COD: IM120417022

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 28123.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview:

IS Shield with 2 channels mechanical relays and 2 channels MOS switch, providing an easy way for applications of voltage controlling from low to high.

The 3Pins breakout make it easy to build a project or prototyping quickly, by using many existing sensor modules (Electronic Brick). And there are some wireless interface breakout on board, you can use it to connect with many wireless module.

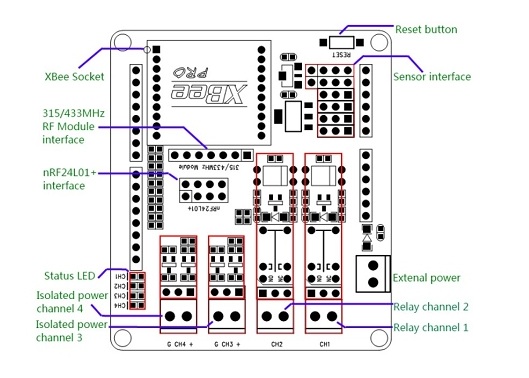

Features:

  • 2 mechanical relays with photo-coupled circuit
  • 2 MOS switch with internal power supply
  • Xbee, nRF24l02, RF315/433M module wireless interface
  • Arduino AD pins 3 PINs interface breakout for Sensor module (Electronic Brick)
  • Equipped with screw holes for easy installation
  • Native Arduino/Iteaduino compatibility

Documents:

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



ADDITIONAL INFORMATION:

Discontinued Yes
Link Wiki No
Version 1.0
Compatible Mainboard
  • Arduino Deumlanove/UNO
  • Arduino MEGA
  • Arduino Nano
  • Freeduino
  • Iteaduino
  • Iteaduino ADK
  • Iteaduino BT
  • Iteaduino MEGA 2560
  • Seeeduino
  • Seeduino MEGA
Board Size 60mm x 68mm
Operation Level Digital 5V
Stackable No
Weight 50 g
