Expansion Board 3.0

Expansion Board 3.0

Placa de expansión V3.0 para WiPy 2.0, WiPy 3.0, LoPy, LoPy4, SiPy, FiPy y GPy. Integra un cargador de baterías LiPo y posee protección por tensión inversa. La conexión con PC se hace por medio de su interfaz USB. Incluye slot para micro SD. Ésta nueva versión integra un pulsador de booteo seguro, y bootloader automático.

COD: PY00013

Peso: 0.041 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 73915.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

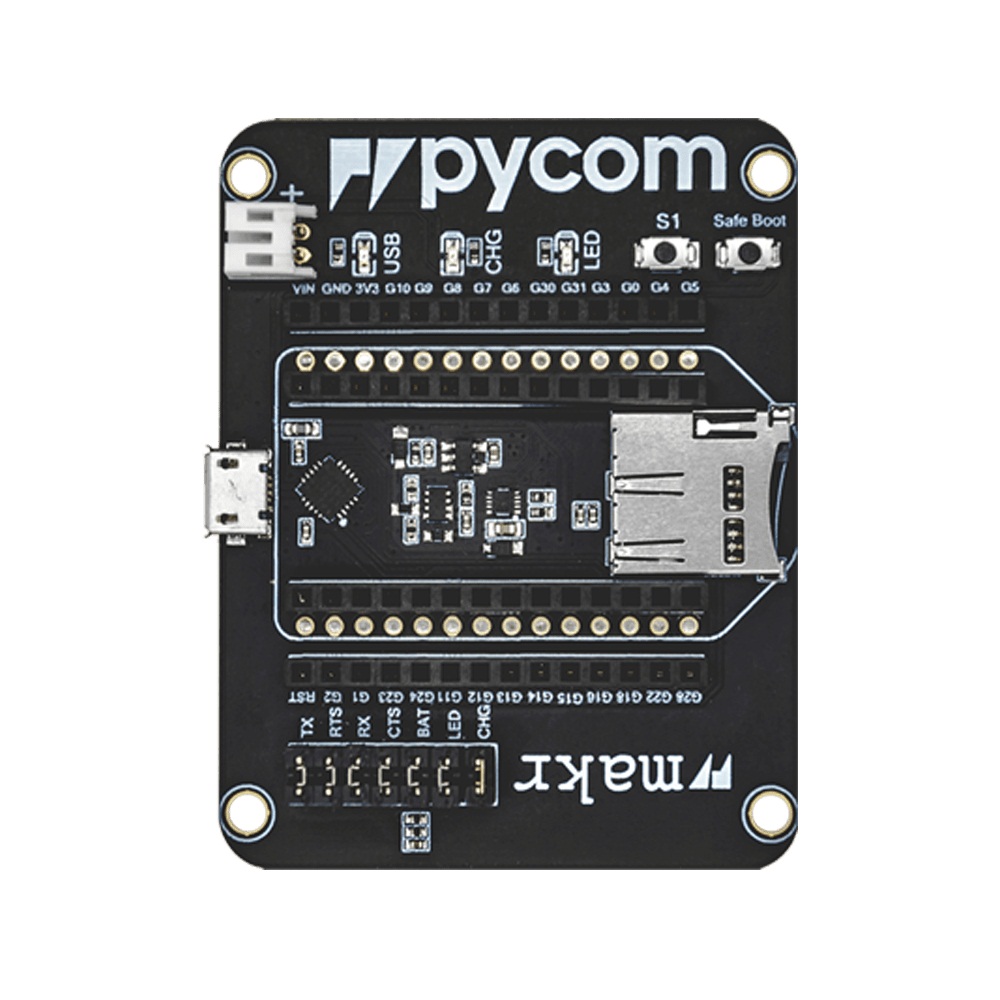

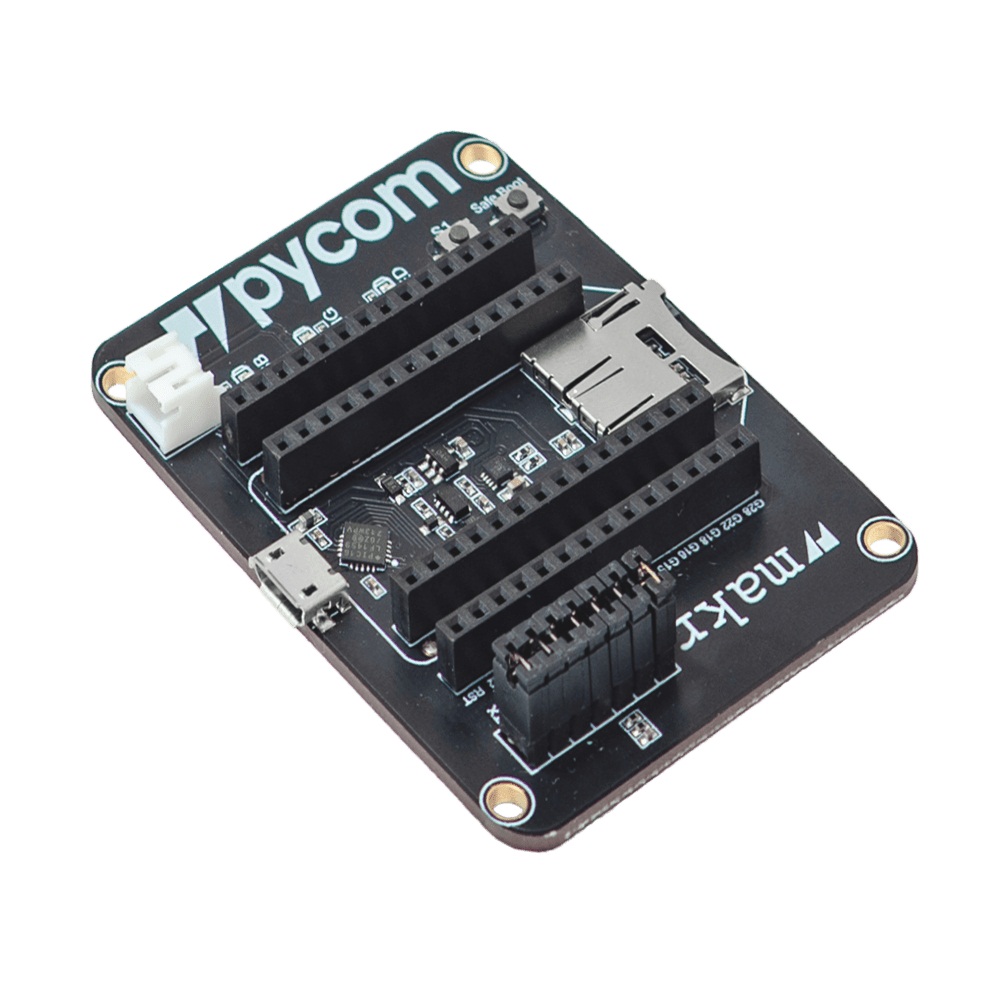

Introducing the Expansion Board 3.0, compatible with the WiPy 2.0, WiPy 3.0, LoPy, LoPy4, SiPy, FiPy and GPy.

NOTE: Does not include the WiPy.

Features:

  • USB and LiPo battery powered.
  • Custom PIC USB to serial converter with automatic bootloader mode.
  • LiPo battery charger (BQ24040), with options for two different charging currents (100mA and 450mA).
  • TPS2115A with reverse voltage protection.
  • MicroSD card slot.
  • JST style battery connector.
  • Power LED and charge status LED.
  • One user LED and one user switch.
  • Button to enter into “safe mode” easily.
  • Battery voltage monitoring via the WiPy ADC.
  • Lots of jumpers to enable/disable features.
  • Size: 65 x 50 x 8mm.



Link:

https://docs.pycom.io/datasheets/boards/expansion3



Weight:

  • 18g.
  • 43g (Packaged).
