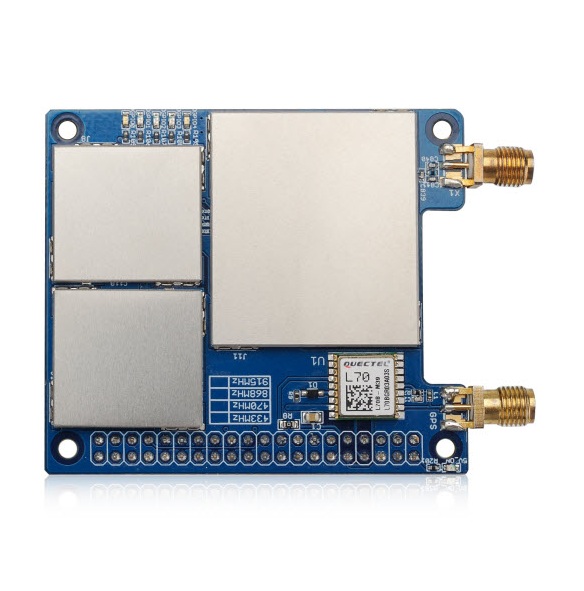

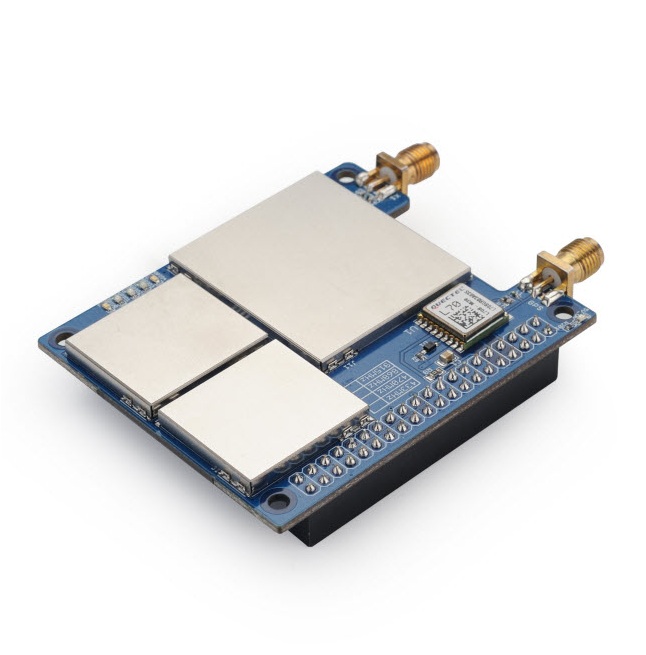

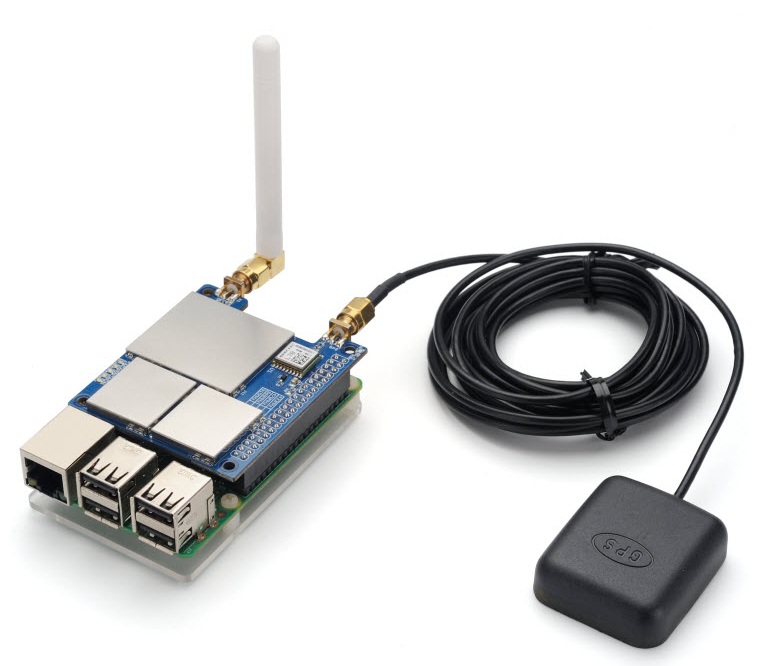

10 channels - LoRaWAN GPS Concentrator for Raspberry Pi

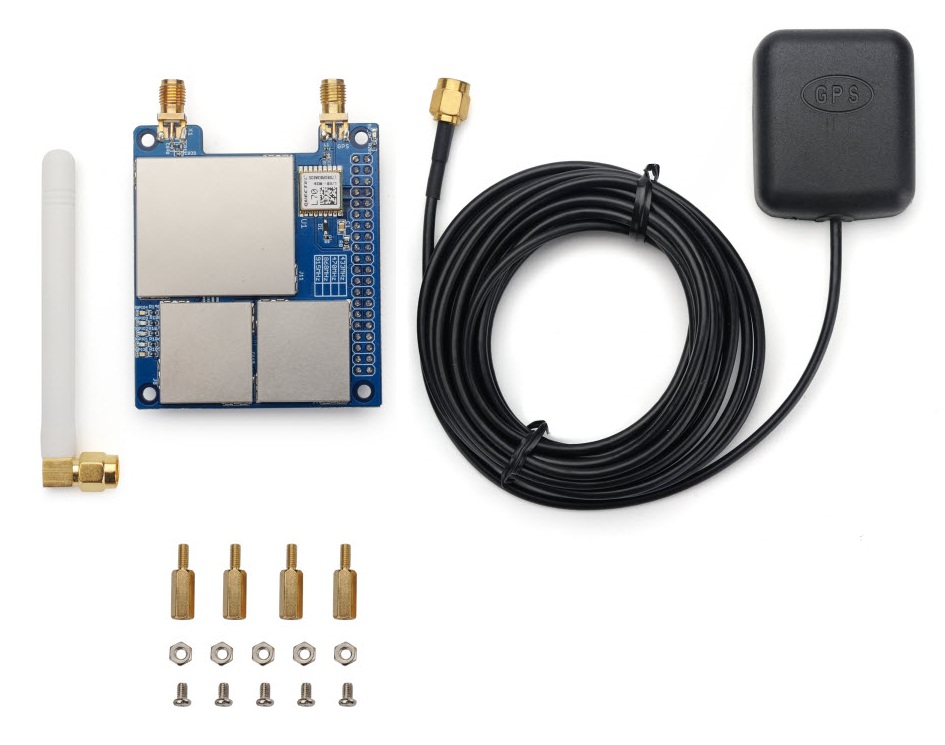

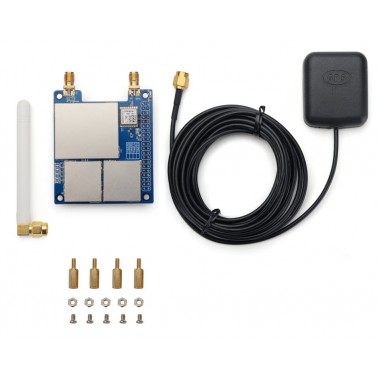

Concentrador LoRaWAN de 10 canales para ser usado con Raspberry Pi. Incluye tornillería para montaje, antena activa GPS y antena LoRa.
COD: DRAPG1301
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 293816.01
El producto no está disponible para la venta en este momento
Características
Features:
- Support Raspberry Pi 3B/3B+/4.
- Up to -142.5dBm sensitivity with SX1257 Tx/Rx front-end.
- 70 dB CW interferer rejection at 1 MHz offset.
- Able to operate with negative SNR, CCR up to 9dB.
- Emulates 49x LoRa demodulators and 1x (G)FSK demodulator.
- Dual digital TX&RX radio front-end interfaces.
- 10 programmable parallel demodulation paths.
- Dynamic data-rate (DDR) adaptation.
- GPS Module to provide timestamp and location info.
Interface:
- SPI interface for LoRa.
- UART interface for GPS.
- Power Input: 5v, 1A.
- 1 x SMA antenna for LoRaWAN.
- 1 x SMA antenna for GPS.
